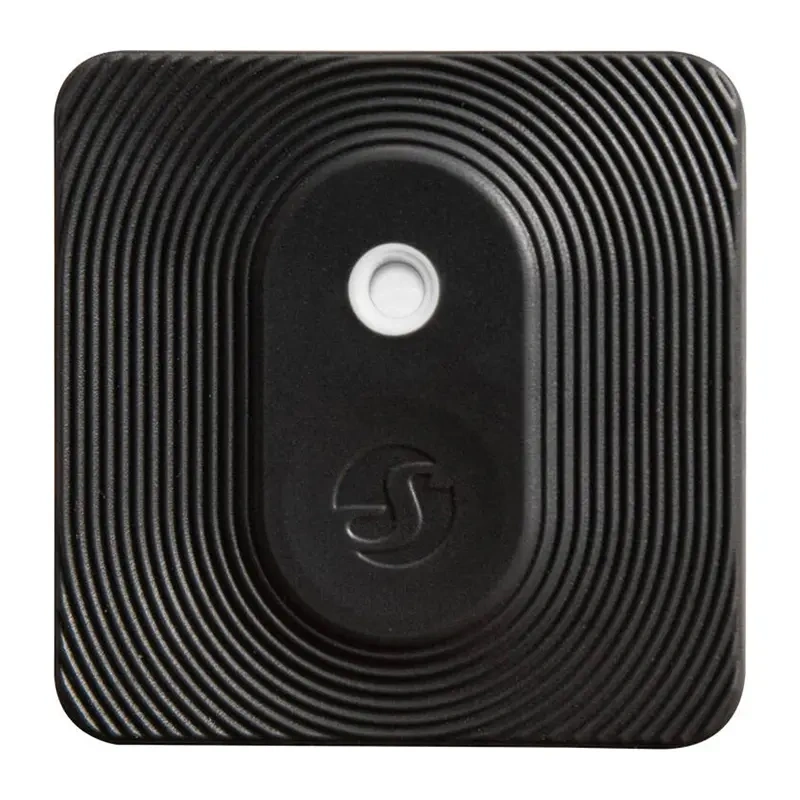

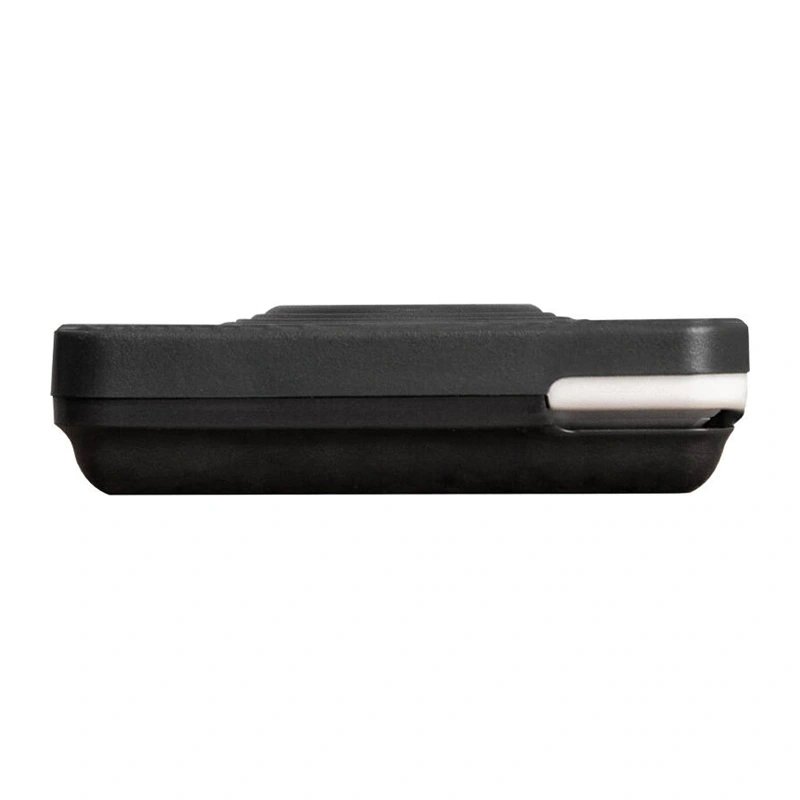

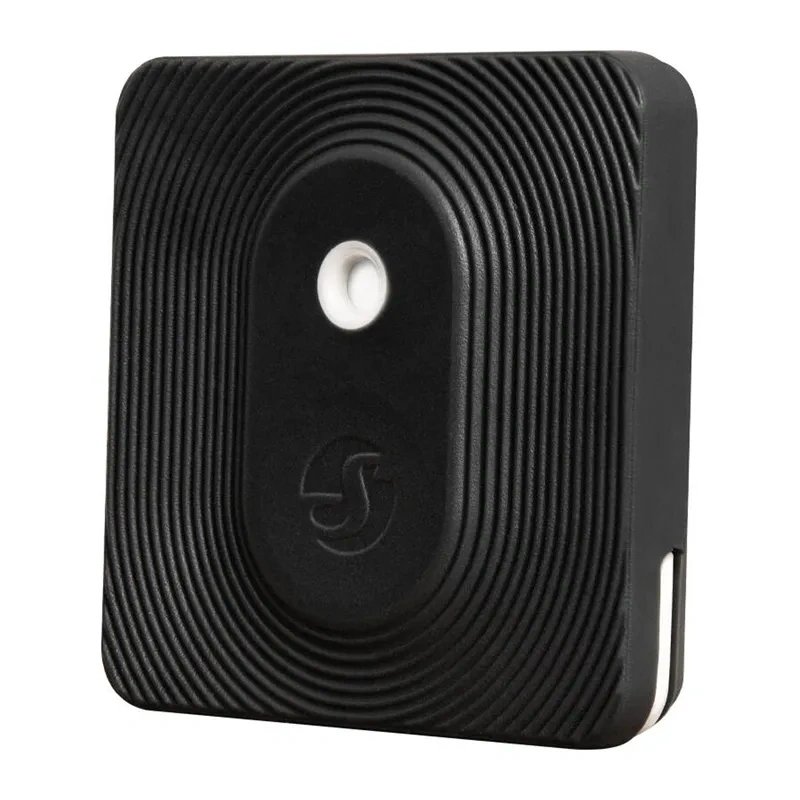

Shelly BLU H&T ZB Bluetooth / Zigbee Temperature and Humidity Sensor, Black
Price: 31.40 €
| Products ID: | 176672 |
|---|---|
| Manufactured by: | Shelly |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 3800238072438 |
Delivery options to:
Choose country
The Shelly BLU H&T ZB is a compact temperature and humidity sensor with dual Bluetooth and Zigbee connectivity for continuous indoor climate monitoring.
Key Features
- Accurate real-time temperature and humidity readings
- Dual wireless connectivity with Bluetooth 5 LE and Zigbee 802.15.4
- Up to 3 years of battery life on a single CR2032 coin cell
- Splash- and dust-resistant design
- Compact footprint and simple mounting on flat surfaces
- Control button and status LED indicator
| Manufacturer | Shelly |
|---|---|
| Model | BLU H&T ZB |
| Color | Black |
| Dimensions | 37 × 37 × 10 mm |
| Weight | 13 g |
| Mounting | On a flat surface |
| Housing material | Plastic |
| Ambient temperature | From -20°C to 60°C |
| Humidity | 0% to 100% RH |
| Power supply | 1 × 3 V CR2032 battery |
| Battery life | Approx. 3 years |
| Humidity sensor | Yes |
| Temperature sensor | Yes |
| Bluetooth protocol | 5 (LE) |
| Bluetooth RF band | 2402–2480 MHz |
| Maximum Bluetooth RF power | < 8 dBm |
| Bluetooth range | Up to 10 m indoors and up to 30 m outdoors (depending on current conditions) |
| Zigbee protocol | 802.15.4 |
| Zigbee RF band | 2405–2480 MHz |
| Maximum Zigbee RF power | < 8 dBm |
| Zigbee range | Up to 10 m indoors and up to 30 m outdoors (depending on current conditions) |
| CPU | EFR32MG27 |
| Flash | 768 kB |
| Schedules | No |
| Webhooks | No |
| Scripts | No |
| MQTT | No |
| Encryption | Yes |
| Supported devices | Shelly Plus / Gen3 / Gen4 series devices, Shelly Pro series devices |
What wireless protocols are supported by the Shelly BLU H&T ZB?
The sensor supports both Bluetooth 5 (LE) and Zigbee (802.15.4) protocols.
What is the battery type and expected lifespan?
It is powered by a single 3 V CR2032 battery (included), providing an estimated battery life of approximately 3 years.
What is the wireless communication range?
The range is up to 10 m indoors and up to 30 m outdoors, depending on environmental conditions.
