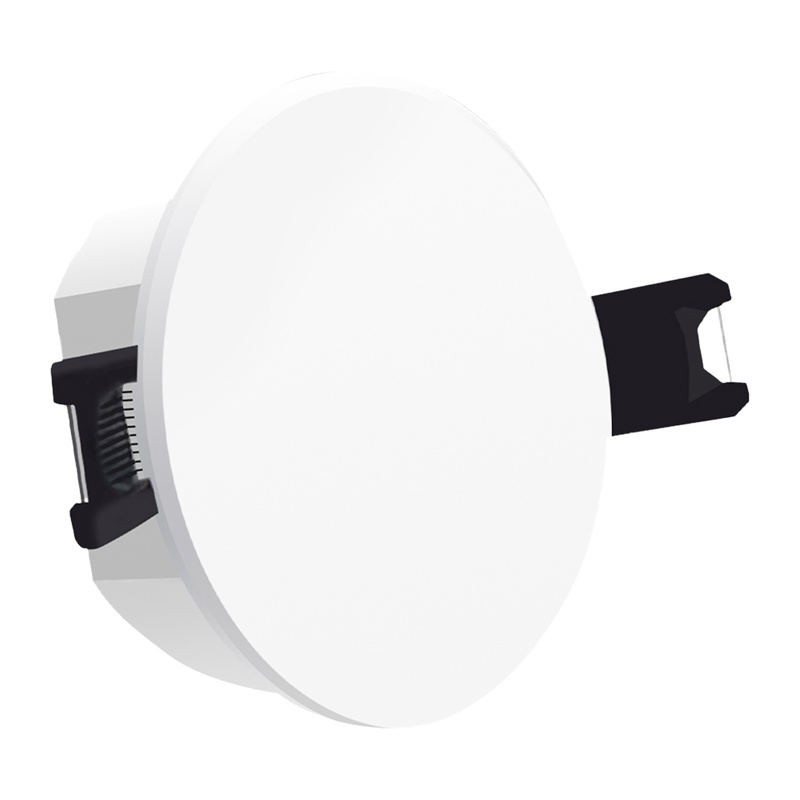

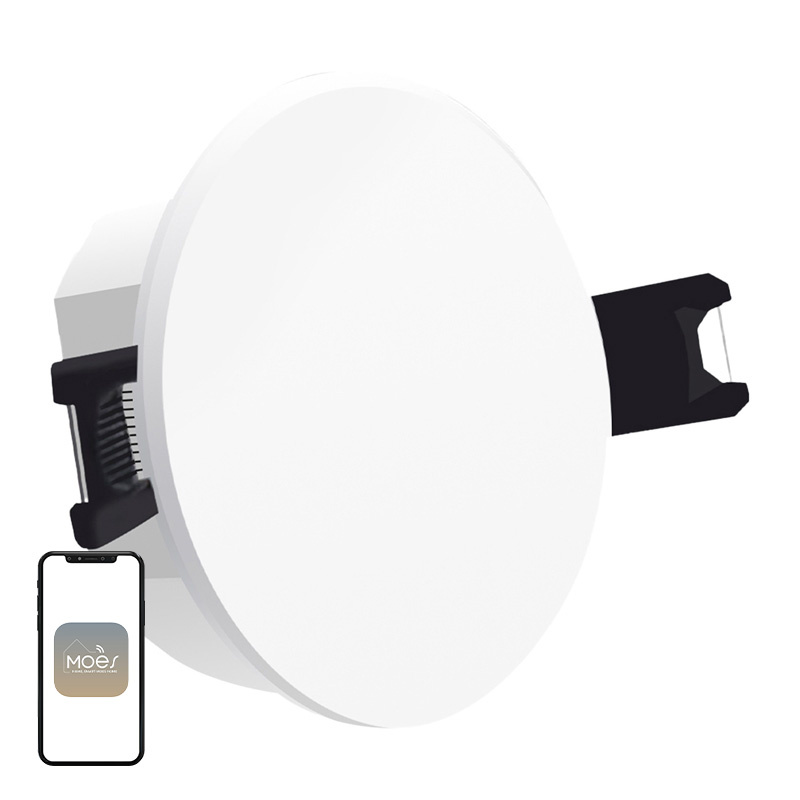

MOES ZSS-QY-HP-MS ZigBee mmWave Ceiling Presence Sensor
Price: 29.80 €
| Products ID: | 177192 |
|---|---|
| Manufactured by: | Moes |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6974246476124 |
Delivery options to:
Choose countryThe MOES ZSS-QY-HP-MS presence sensor utilizes mmWave radar technology and ZigBee connectivity to detect human presence and subtle micro-movements.
Key Features
- mmWave radar detection for identifying motion and micro-movements such as breathing
- Adjustable detection range from 0 to 9 m with sensitivity settings from 0 to 9
- Integrated light intensity measurement from 0 to 2000 Lux for smart automation scenes
- Configurable response confirmation time and presence decay delay via the Smart Life app
- Ceiling-mounted design powered by AC 100–250 V
| Manufacturer | MOES |
|---|---|
| Model | ZSS-QY-HP-MS |
| Wireless technology | Zigbee |
| Operating voltage | AC 100 V–250 V |
| Current consumption | ≤70 mA |
| Operating temperature | –20°C to 70°C |
| Sensitivity | 0–9 (default 7) |
| Detection range | 0–9 m (default 7 m) |
| Detection confirmation time | 0–0.5 s |
| Presence decay delay | 20 s – 25 min |
| Light intensity | 0–2000 Lux |
| Mounting method | Ceiling |
| Dimensions | ∅93 × 37 mm |
| Microwave frequency | 5.8 GHz |
| Microwave transmission power | 3–5 dBm |
| Maximum RF power | +10 dBm |
| Operating frequency | 2.400–2.483 GHz |
Is a hub required to use this sensor?
Yes, the sensor communicates via ZigBee and requires a compatible ZigBee gateway, which is sold separately.
What is the detection range of this sensor?
The detection range is configurable between 0 and 9 meters, with a default setting of 7 meters.
How is the device powered and mounted?
The sensor is designed for ceiling installation and operates on AC 100–250 V.
