Maclean MCE623 W 12-24V PIR Motion Sensor IP44, White
Price: 10.00 €
| Products ID: | 173718 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5902211145936 |
Delivery options to:
Choose country

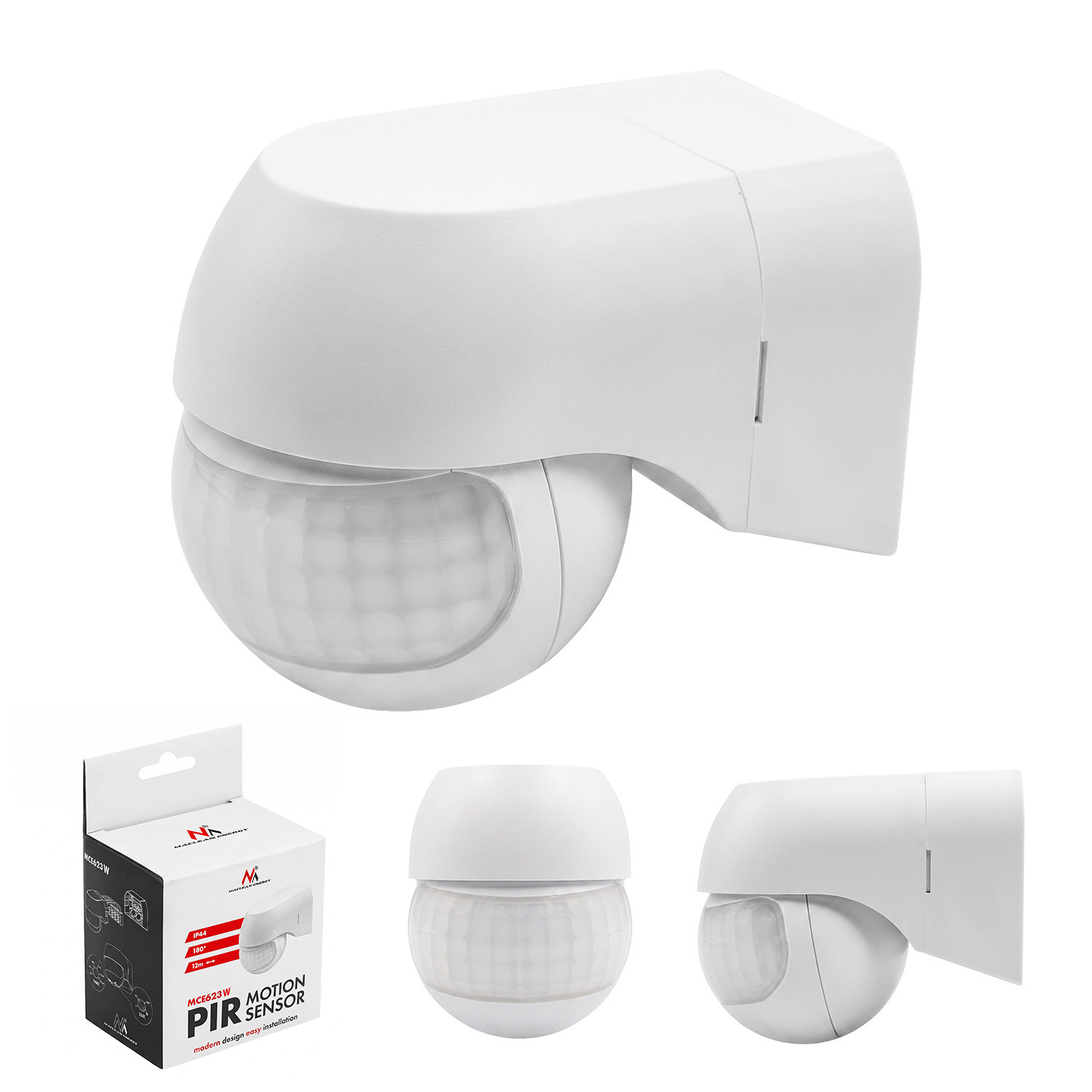

The Maclean MCE623 W is an infrared (PIR) motion sensor designed for automatic control of 12–24 V DC low-voltage lighting in indoor and sheltered outdoor areas.
Key Features
- Wide Detection Area: 180° detection angle with a detection range of up to 12 meters.
- Adjustable Sensor Head: allows precise alignment of the detection direction toward the selected area.
- Customizable Settings: adjustable time delay from 10 seconds to 15 minutes and adjustable ambient light sensitivity.
- IP44 Protection: housing protects against splashing water and ingress of solid objects larger than 1 mm.
- Wall Installation: designed for wall mounting at a recommended height of 1.8 to 2.5 meters.
| Manufacturer | Maclean |
|---|---|
| Model | MCE623 W |
| Color | White |
| Supply Voltage | 12–24 V DC |
| Detection Technology | PIR |
| Detection Angle | 180° |
| Detection Range | Up to 12 m |
| Max. Load | 60/120 W |
| Max. Current | 5 A |
| Protection Rating | IP44 |
| Time Delay Range | 10 s – 15 min |
| Mounting Height | 1.8 – 2.5 m |
What is the detection range and angle of the sensor?
The Maclean MCE623 W features a 180° detection angle and detects movement at a range of up to 12 meters.
What power supply voltage does the sensor require?
The sensor operates on a 12–24 V DC low-voltage power supply.
