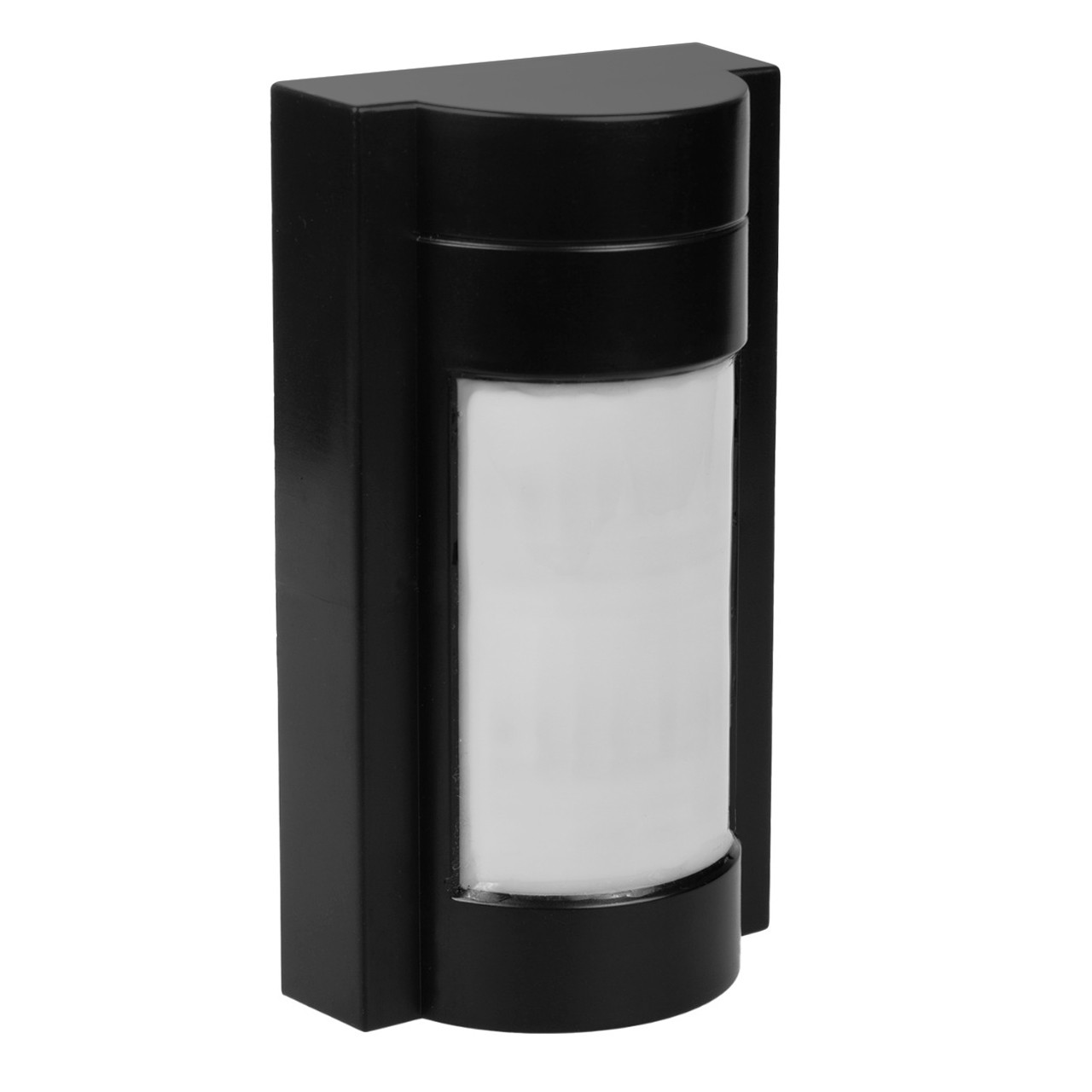

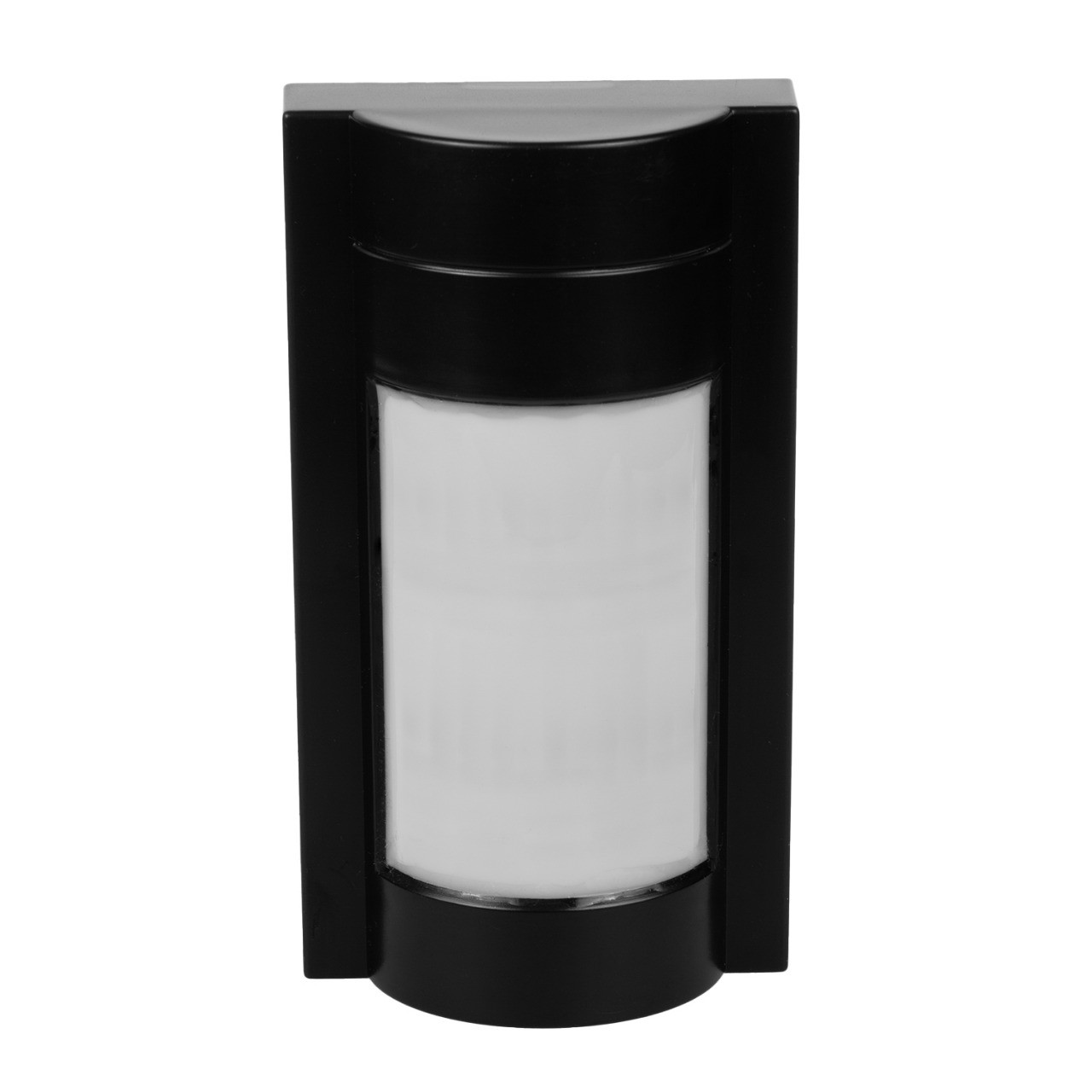

Maclean MCE385 B Outdoor PIR Motion Sensor with Twilight Sensor IP65, Black
Price: 14.90 €
| Products ID: | 173590 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5902211131854 |
Delivery options to:
Choose country
The Maclean MCE385 B is an outdoor infrared PIR motion sensor with pet immunity designed for automatic control of lighting and other electrical equipment up to 1200 W.
Key Features
- Infrared PIR motion detection with pet immunity
- 120° detection angle with a detection range of up to 12 meters
- Built-in daylight sensor with adjustable sensitivity from 3 to 2000 LUX
- Adjustable TIME control from approximately 10 seconds to 15 minutes
- Weather-resistant IP65 enclosure for indoor and outdoor installations
- Supports up to 1200 W resistive load and 600 W inductive load
| Manufacturer | Maclean |
|---|---|
| Model | MCE385 B |
| Sensor type | PIR (Infrared) |
| Color | Black |
| Detection angle | 120° |
| Detection range | Up to 12 m |
| Max. resistive load | 1200 W |
| Max. inductive load | 600 W |
| Time adjustment (TIME) | Approx. 10 sec – 15 min |
| Light sensitivity (LUX) | 3 – 2000 LUX |
| Protection rating | IP65 |
| Power supply | 220-240 V/AC, 50/60 Hz |
| Power consumption | Approx. 0.5 W |
| Operating temperature | -20 to +40°C |
What is the maximum power capacity of this sensor?
The sensor supports a maximum resistive load of up to 1200 W and an inductive load of up to 600 W.
What is the coverage area of the motion detector?
It features a 120° detection angle and a detection distance of up to 12 meters.

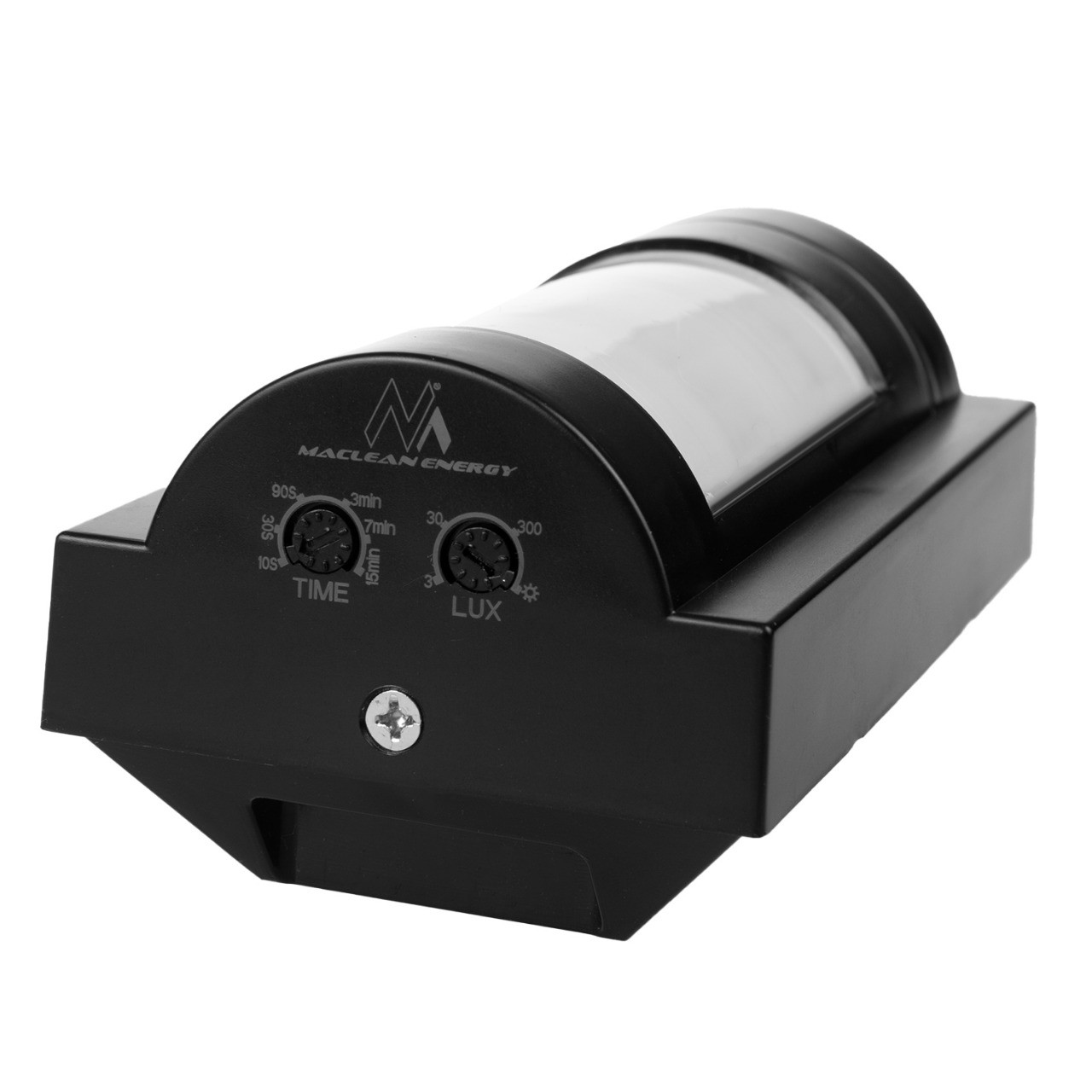

Can the lighting duration and light threshold be adjusted?
Yes, the TIME dial adjusts the activation duration from ~10 seconds to 15 minutes, while the LUX dial sets ambient light sensitivity between 3 and 2000 LUX.
