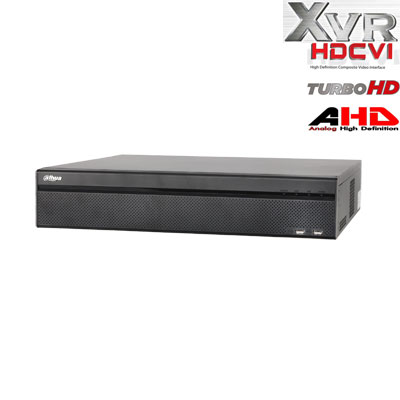

Pentabrid Standalone XVR Video Recorder XVR5816S, 16-Channel, 8 SATA

Price: 384.80 €

Products ID:	195164
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939554933608

Delivery options to:

Choose country

The XVR5816S is a standalone 16-channel Pentabrid video recorder designed for versatile surveillance systems, offering native support for HDCVI, AHD, TVI, CVBS, and IP video formats.

Video Processing and Channel Capacity

The unit features 16 HDCVI camera inputs and accommodates up to 16+8 IP camera channels, supporting resolutions up to 5MP per channel with a maximum incoming bandwidth of 96Mbps. Dual-stream H.264+ and H.264 video compression ensures efficient storage utilization and reliable stream transmission.

Storage and Display Interfaces

Designed for demanding archive requirements, the recorder includes 8 internal SATA ports supporting up to 8TB capacity per drive, along with 1 external eSATA port. Video output is managed via 2 HDMI, 1 VGA, and 1 TV interface supporting display resolutions up to 1920×1080.

System Features and Integration

Embedded LINUX operating system powered by an embedded processor
16 alarm inputs and 6 relay outputs for external security integration
Video detection features including 396-zone motion detection, video loss, tampering, and diagnosis
Smart Search functionality and Intelligent Video System support
Two-way talk capability via 1 Mic In and 1 Mic Out (BNC)
Dual Gigabit network interfaces (2 RJ-45 1000M ports) and 4 USB ports (2 USB 2.0, 2 USB 3.0)

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Display Interface	2 HDMI, 1 VGA, 1 TV
Display Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	1/4/8/9/16/25
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Trigger Events	Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input	16
Relay Output	6
Playback Channels	1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second), Smart search
Backup Mode	USB Device / Network
Internal HDD	8 SATA Ports, up to 8TB capacity for each disk
HDD Mode	Single
eSATA Interface	1 Port
USB Interface	4 USB Ports (2 USB 2.0, 2 USB 3.0)
RS232 Interface	1 port, for PC communication & Keyboard
RS485 Interface	1 Port, for PTZ Control
HDCVI Camera Input	16 Channel
IP Camera Input	16+8 Channel, each channel up to 5MP
Audio In/Out	16 Audio In, 1 Audio Out
Two-way Talk	1 Mic In, 1 Mic Out, BNC
Video Compression	H.264+/H.264
Recording Resolution	1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Main Stream Record Rate	1080P (1~15fps), 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub Stream Record Rate	D1/CIF/QCIF (1~15fps)
Bit Rate	1Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network Interface	2 RJ-45 Port (1000M)
Max. User Access	128 users
Smart Phone Support	iPhone, iPad, Android
Interoperability	ONVIF 2.4.1, CGI Conformant
Power Supply	AC 100V-240V, 50/60Hz
Max Incoming Bandwidth	96Mbps
