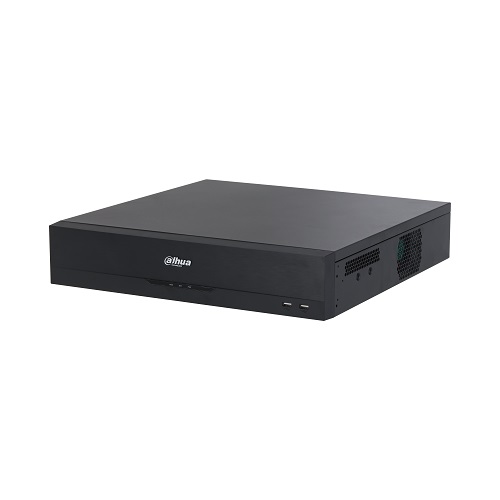

64-Channel IP Network Video Recorder NVR5864-EI
Price: 1061.80 €
| Products ID: | 172373 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172586063 |
Delivery options to:
Choose countryThe NVR5864-EI is a 64-channel IP network video recorder designed for high-capacity surveillance systems with support for camera resolutions up to 32 MP.
Key Features
- Supports up to 64 IP camera channels and up to 32 MP resolution
- Built-in AI analytics: face recognition, perimeter protection, and SMD Plus
- 8 SATA HDD interfaces up to 16 TB each with RAID 0/1/5/6/10 support
- Dual HDMI and dual VGA outputs with 4K display capability
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG video compression
- Dual Gigabit RJ-45 Ethernet ports supporting load balance and fault tolerance
| Channel Count | 64 |
|---|---|
| Maximum Resolution | 32 MP |
| HDD Interface | 8 SATA ports (up to 16 TB each) |
| eSATA Port | 1 |
| RAID Support | RAID 0/1/5/6/10 |
| Video Outputs | 2 × HDMI, 2 × VGA (4K display supported) |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Network Ports | 2 × RJ-45 10/100/1000 Mbps Ethernet |
| Audio In / Out | 1 RCA input / 2 RCA outputs |
| Alarm In / Out | 16 inputs / 8 outputs |
| USB Ports | 4 (2 front USB 2.0, 2 rear USB 3.0) |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Dimensions | 439.9 mm × 457.9 mm × 89.0 mm |
| Net Weight | 6.4 kg |
| Operating Temperature | –10 °C to +55 °C |
How many hard drives can be installed in the NVR5864-EI?
The recorder supports up to 8 SATA hard drives, each up to 16 TB, as well as 1 eSATA port.
What is the maximum supported camera resolution?
The device supports IP camera resolutions up to 32 MP.
Which RAID modes are supported?
The NVR supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 configurations.
