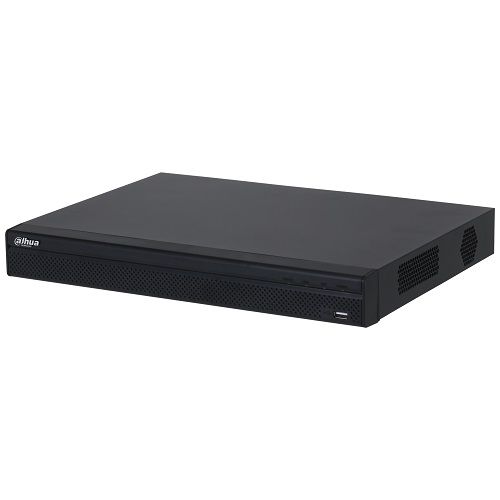

NVR4232-4KS3 32-channel IP network recorder with SMD Plus
Dahua Technology Co., Ltd
| Products ID: | 196938 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172569370 |
Delivery options to:
Choose countryThe NVR4232-4KS3 is a network video recorder for 32 IP camera channels, supporting resolutions up to 12 MP. It offers a local graphical interface and web operation, with mobile access from iOS and Android devices.
Analytics and recording
Recorder-based SMD Plus operates on 4 channels, using secondary human and motor vehicle filtering to reduce false alarms caused by leaves, rain and lighting changes. Camera-based face detection, face recognition, perimeter protection and SMD Plus are each specified for 6 channels. These camera-based functions depend on the connected cameras' capabilities.
- Video output: HDMI up to 3840 × 2160 in simultaneous output mode, plus a separate VGA port.
- Playback: up to 16 channels, including event and tag playback.
- Storage: 2 SATA ports, supporting up to 20 TB per disk; this limit varies with ambient temperature.
- Backup: to a USB device or over the network.
Connections and performance
Connections include Gigabit Ethernet, RCA audio input and output, 4 alarm inputs and 2 alarm outputs. With AI enabled, incoming and recording bandwidth are each 80 Mbps; with AI disabled, they are 160 Mbps and 128 Mbps respectively. Power requirements are 12 VDC, 4 A.
| Main processor | Industrial-grade processor |
|---|---|
| Operating system | Embedded Linux |
| Operating interface | Web, local GUI |
| AI by recorder | SMD Plus |
| AI by camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Camera-based AI perimeter protection | 6 channels |
| Face attributes | Gender; age group; glasses; expressions; face mask; beard |
| Camera-based AI face detection | 6 channels |
| Camera-based AI face recognition | 6 channels |
| SMD Plus by recorder | 4 channels; secondary human and motor vehicle filtering to reduce false alarms caused by leaves, rain and lighting changes |
| SMD Plus by camera | 6 channels |
| Access channels | 32 channels |
| Network bandwidth | AI disabled: 160 Mbps incoming, 128 Mbps recording, 60 Mbps outgoing; AI enabled: 80 Mbps incoming, 80 Mbps recording, 60 Mbps outgoing |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding capability | AI disabled: 1 × 12 MP, 2 × 8 MP, 3 × 5 MP, 4 × 4 MP, 8 × 1080p; AI enabled: 1 × 12 MP, 1 × 8 MP, 2 × 5 MP, 3 × 4 MP, 7 × 1080p. All modes at 30 fps; multiplier denotes channel count. |
| Video output | 1 HDMI, 1 VGA. Simultaneous: HDMI 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA 1920 × 1080, 1280 × 1024, 1280 × 720. Heterogeneous: HDMI and VGA each 1920 × 1080, 1280 × 1024, 1280 × 720. |
| Multi-screen display | AI disabled: main screen 1/4/8/9/16/25/36, sub screen 1/4/8/9/16; AI enabled: main and sub screens each 1/4/8/9/16 |
| Third-party camera access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio compression | G.711a; G.711u; PCM; G726 |
| Network protocols and functions | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (supports IP cameras, DVR, NVS, etc.) |
| Mobile phone access | iOS; Android |
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browsers | Chrome; IE; Safari; Edge; Firefox |
| Multi-channel playback | Up to 16 channels |
| Recording modes | General; motion detection; intelligent; alarm |
| Backup method | USB device and network |
| Playback modes | Instant; general; event; tag; smart |
| Disk grouping | Yes |
| General alarms | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly alarms | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; cybersecurity exception |
| Intelligent alarms | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Audio input | 1-channel RCA |
| Audio output | 1-channel RCA |
| Alarm inputs | 4 channels |
| Alarm outputs | 2 channels (1-channel 12 V, 1 A output) |
| Disk interface | 2 SATA ports; up to 20 TB per disk. This limit varies depending on ambient temperature. |
| USB | 2 USB 2.0 ports: 1 front, 1 rear |
| HDMI | 1 |
| VGA | 1 |
| Network port | 1 Ethernet RJ-45, 10/100/1000 Mbps |
| Power supply | 12 VDC, 4 A |
Does enabling AI affect performance?
Yes. Incoming and recording bandwidth are each 80 Mbps with AI enabled, compared with 160 Mbps incoming and 128 Mbps recording with AI disabled. Decoding capacity and available screen layouts also change.
How many disks can be connected?
There are 2 SATA ports, with support specified for up to 20 TB per disk. This limit varies with ambient temperature.
