Network Video Recorder Hikvision DS-7616NI-M2, 16-ch, 8K, 2x SATA

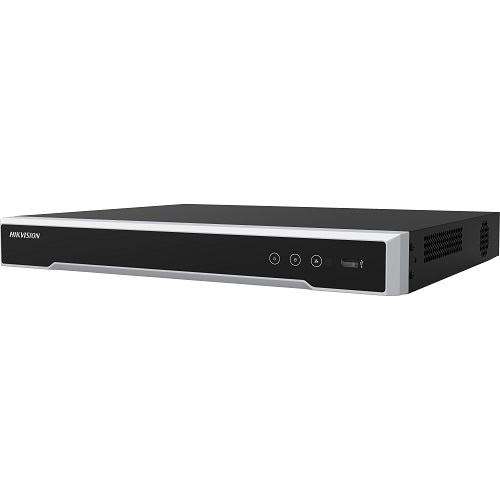

The Hikvision DS-7616NI-M2 is a 16-channel 1U network video recorder (NVR) engineered for IP surveillance setups with support for display output up to 8K resolution.
High-Performance Video Processing
This NVR supports up to 256 Mbps incoming and outgoing bandwidth and camera resolutions up to 32 MP. Video streams can be encoded and decoded using H.265+, H.265, H.264+, and H.264 compression standards to optimize bandwidth and disk usage.
Comprehensive Connectivity and Storage
Equipped with independent HDMI and VGA outputs, the HDMI port provides resolution up to 8K (7680 x 4320). For local storage, the unit includes 2 SATA interfaces supporting hard drives up to 16 TB each, along with two gigabit Ethernet ports for network connectivity.
| IP Video Input | 16-ch, Up to 32 MP resolution (up to 8-ch 32 MP/24 MP in ultra HD mode) |
|---|---|
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz |
| VGA Output | 1920 x 1080/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-ch, RCA (Linear, 1 Kiloohm) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 Kiloohm, using the audio input) |
| Decoding Format | H.265 / H.265+ / H.264+ / H.264 |
| Recording Resolution | 32 MP/ 24 MP/ 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP(30fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps) / 40-ch@1080p (30 fps) |
| Dual-Stream Recording | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP |
| Camera Access Protocol | ONVIF (Version 2.5), RTSP |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 4 / 1 |
| Power Supply | 12 VDC, 3.33 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 385 x 315 x 52 mm (15.2" x 12.4" x 2.0") |
| Weight | ≤ 3 kg (without HDD, 2.2 lb.) |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| EAN | 6931847172848 |
|---|
What is the maximum storage capacity supported by the DS-7616NI-M2?
The recorder features 2 SATA interfaces, each supporting an individual hard drive of up to 16 TB.
Does the HDMI port output 8K video?
Yes, the HDMI output supports resolutions up to 8K (7680 x 4320) at 30 Hz.
How many IP cameras can be connected to this unit?
The NVR supports up to 16 IP camera inputs with resolutions up to 32 MP.
