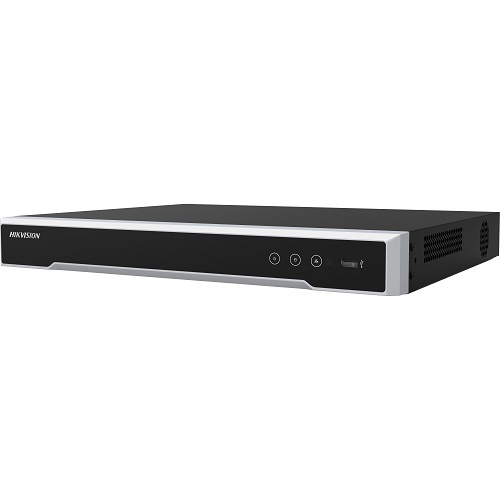

Network Video Recorder Hikvision DS-7608NI-M2 8K 8-Channel
Hikvision
| Products ID: | 195088 |
|---|---|
| Manufactured by: | Hikvision |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6931847172831 |
Delivery options to:
Choose countryThe Hikvision DS-7608NI-M2 is an 8-channel 1U network video recorder (NVR) designed for IP surveillance setups, accommodating camera resolutions up to 32 MP.
Video and Audio Performance
This unit provides up to 128 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth. It supports independent HDMI and VGA video outputs, including HDMI output up to 8K resolution (7680 x 4320 at 30 Hz). Video stream handling supports H.265+, H.265, H.264+, and H.264 formats, offering synchronous playback across up to 8 channels.
Storage and Connectivity
Equipped with 2 SATA ports, the recorder accommodates hard drives up to 16 TB per disk. Network connectivity is delivered via 2 RJ-45 Gigabit Ethernet ports, complemented by a front USB 2.0 port and a rear USB 3.0 port.
| Model | Hikvision DS-7608NI-M2 |
|---|---|
| IP Video Input | 8-ch, Up to 32 MP resolution |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz |
| VGA Output | 1920 x 1080/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-ch, RCA (Linear, 1 Kiloohm) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 Kiloohm, using the audio input) |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 32 MP/ 24 MP/ 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
| Synchronous Playback | 8-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)+2-ch@8MP(30fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Dual-Stream Recording | support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 4/1 |
| Power Supply | 12 VDC, 3.33 A |
| Consumption | < /= 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 385 x 315 x 52 mm (15.2" x 12.4" x 2.0") |
| Weight | < /= 3 kg (without HDD, 2.2 lb.) |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Obtained Certification | CE, FCC, RoHS, REACH |
What is the maximum hard drive capacity supported by this NVR?
The Hikvision DS-7608NI-M2 includes 2 SATA interfaces, each supporting an HDD with a capacity of up to 16 TB.
What video resolution can be output via HDMI?
The HDMI port supports output resolutions up to 8K (7680 x 4320) at 30 Hz.
How many IP cameras can be connected?
The NVR supports up to 8 IP camera inputs with resolutions up to 32 MP.
