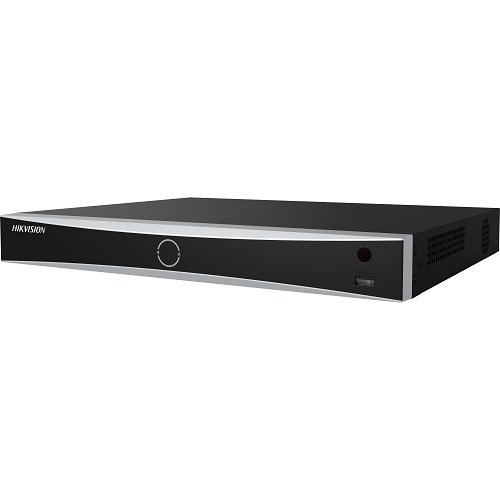

Hikvision DS-7616NXI-I2/16P/S(E) 16-Channel 4K AcuSense PoE Network Video Recorder
Hikvision
| Products ID: | 195165 |
|---|---|
| Manufactured by: | Hikvision |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942160426273 |
Delivery options to:
Choose countryThe Hikvision DS-7616NXI-I2/16P/S(E) is a 16-channel 1U network video recorder (NVR) equipped with a 16-port PoE switch and 4K video output capability.
Deep Learning Video Analytics
Powered by deep learning algorithms, this recorder provides facial recognition, Motion Detection 2.0, and up to 4 channels of perimeter protection with human and vehicle target classification to reduce false alarms.
Connectivity and Storage
It includes 2 SATA interfaces supporting up to 14 TB capacity per hard drive, independent HDMI and VGA video outputs, and 16 built-in PoE ports adhering to the IEEE 802.3af/at standard.
| Model | Hikvision DS-7616NXI-I2/16P/S(E) |
|---|---|
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz |
| VGA Output | 1920 x 1080/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ohm) |
| Audio Output | 1-ch, RCA (Linear, 1 Kiloohm) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 Kiloohm) |
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 32 MP/ 24 MP/ 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | Enable AI by NVR: 20-ch@1080p (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps) |
| Face Picture Comparison | 8-ch |
| Face Picture Library | Up to 16 libraries, up to 50 000 face pictures total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
| Perimeter Protection by NVR | 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition; up to 12 rules |
| Motion Detection 2.0 by NVR | All channels for Hikvision cameras |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connections | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| PoE Interface | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| PoE Power | ≤ 200 W |
| PoE Standard | IEEE 802.3af/at |
| SATA Interface | 2 SATA interfaces |
| SATA Capacity | Up to 14 TB capacity for each disk |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 4/1 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 30 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C |
| Working Humidity | 10% to 90% |
| Dimensions (W x D x H) | 385 x 317 x 52 mm |
| Weight | ≤ 2.5 kg (without HDD) |
| Certifications | CE, CB, REACH, WEEE, UKCA, LOA |
How many IP cameras can be connected to this NVR?
The recorder supports up to 16 IP camera inputs and features 16 integrated PoE ports for direct network camera connection.
What is the maximum hard drive capacity supported?
The device includes 2 SATA interfaces, each supporting a hard drive with a capacity of up to 14 TB.
