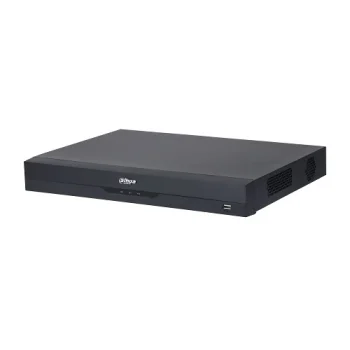

8-Channel Pentabrid Video Recorder XVR5208AN-4KL-I3 4K
Dahua Technology Co., Ltd
Price: 191.10 €
| Products ID: | 193851 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172535207 |
Delivery options to:
Choose countryThe XVR5208AN-4KL-I3 is an 8-channel standalone Pentabrid digital video recorder designed for flexible surveillance deployments. It handles high-resolution video streams up to 4K and integrates onboard artificial intelligence for perimeter monitoring and face analytics.
Smart AI Detection and Recognition
The recorder features integrated AI capabilities to provide targeted monitoring and reduce false alarms:
- Perimeter protection on 2 channels with secondary filtering for human and vehicle targets
- Face detection on 2 channels (up to 12 faces per channel) tracking 6 distinct facial attributes
- Face recognition supporting up to 10 databases and 20,000 reference images
- Full-channel SMD Plus to filter out false alerts caused by leaves, rain, and lighting fluctuations
Connectivity and Storage
Designed for versatile system configurations, the unit provides comprehensive input and storage support:
- Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras up to 8 MP
- Simultaneous or independent HDMI (up to 3840 × 2160) and VGA video outputs
- 2 SATA interfaces supporting hard drives up to 16 TB each
- Two-way audio communication and RS-485 port for PTZ control
| Main Processor | Embedded processor |
|---|---|
| Operating System | Embedded Linux |
| Perimeter Protection Channels | 2 channels |
| Face Attributes | 6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard; up to 4 detection panels displayed simultaneously |
| Face Detection Performance | 2 channels, up to 12 faces per single channel |
| Face Database Capacity | Up to 10 databases and 20 000 pictures |
| Face Recognition Performance | 2 channels |
| SMD Plus | Full-channel SMD Plus with secondary human and vehicle filtering |
| Analog Camera Input | 8 channels, BNC (HDCVI, AHD, TVI, CVBS) |
| Supported Analog Formats | CVI: 4K, 6MP, 5MP, 4MP, 1080p, 720p; TVI: 4K, 5MP, 4MP, 3MP, 1080p, 720p; AHD: 4K, 5MP, 4MP, 3MP, 1080p, 720p |
| IP Camera Input | 8+8 channels, each channel up to 8MP |
| Encoding Capacity | 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-stream | Supported (960H 1 fps–15 fps; D1/CIF 1 fps–25/30 fps) |
| Video Frame Rate | PAL: 1 fps–25 fps; NTSC: 1 fps–30 fps |
| Video Bit Rate | 32 Kbps–6144 Kbps per channel |
| Audio Sampling | 8 KHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Video Output | 1 HDMI (up to 3840 × 2160), 1 VGA (up to 1920 × 1080) |
| Multi-screen Display | Non-IP extension mode: 1/4/8/9; IP extension mode: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Video Compression | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711A / G.711u / PCM |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Mobile Phone Access | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Browser | Chrome, IE9 or above, Firefox |
| Network Mode | Single-address mode |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Backup Method | USB Device / Network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| General Alarm | Motion detection, Video Loss, tampering, and local alarm |
| Anomaly Alarm | No disk, disk error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot, IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Audio Input | 1 RCA (external), 8 BNC (coaxial) |
| Audio Output | 1 RCA |
| Two-way Talk | Yes (shared with first channel audio input) |
| HDD Interface | 2 SATA Ports, up to 16TB for a single HDD |
| RS-485 | 1 Port, for PTZ Control |
| USB | 2 USB Ports (1 USB 2.0, 1 USB 3.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 RJ-45 (10/100/1000 Mbps) |
| Power Supply | DC12V, 4A |
| Power Consumption | < 10 W |
| Net Weight | 1.59 kg |
| Dimensions | 1U, 375.0 mm × 289.0 mm × 53.0 mm |
| Operating Temperature | –10 °C to +55 °C |
| Operating Humidity | 10%–90% |
| Installation | Desktop |
How many hard drives does this recorder support?
It features 2 SATA ports, supporting hard drive capacities of up to 16 TB per drive.
Which camera standards can be connected to the recorder?
The recorder supports HDCVI, AHD, TVI, and CVBS analog cameras across 8 BNC channels, as well as up to 16 IP cameras with resolutions up to 8 MP.
Are AI functions available when adding extra IP channels?
When IP channels are added beyond the base channels, the onboard AI functions (IVS, SMD, and FACE) are disabled.
