8-Channel Pentabrid Standalone XVR XVR5208A-4KL-I3

Price: 205.80 €

Products ID:	193850
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6923172535214

Delivery options to:

Choose country

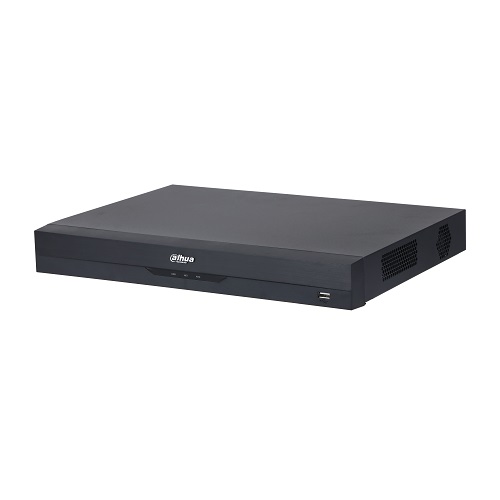

The XVR5208A-4KL-I3 is an 8-channel pentabrid standalone digital video recorder designed for processing and recording video streams from analog and IP cameras.

Video Connectivity and Compression

The unit features 8 analog BNC camera inputs supporting HDCVI, AHD, TVI, and CVBS formats, along with 8+8 IP camera channels supporting resolutions up to 8 MP per channel. Video encoding is handled via AI Coding, H.265+, H.265, H.264+, and H.264 standards with 4K recording support.

AI Analytics and Storage Capabilities

Built-in AI processing provides 2-channel perimeter protection, 2-channel face recognition with storage for up to 20,000 face images across 10 databases, and full-channel SMD Plus for human and vehicle classification. Local storage is provided through 2 SATA interfaces accommodating up to 16 TB per HDD.

Main Processor	Embedded processor
Operating System	Embedded Linux
Perimeter Protection AI Channels	2 channels
Face Attributes	6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard; up to 4 panels displayed simultaneously
Face Detection AI Channels	2 channels, up to 12 faces per single channel
Face Database Capacity	Up to 10 face databases and 20 000 pictures
Face Recognition AI Channels	2 channels
SMD Plus	Full-channel SMD Plus with human and motor vehicle secondary filtering
Analog Camera Input	8 channels, BNC (HDCVI, AHD, TVI, CVBS)
Supported Camera Input Resolutions	CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps; TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30 fps; AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30 fps
IP Camera Input	8+8 channels, each channel up to 8MP
Encoding Capacity	All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)
Dual-stream	Supported (960H 1 fps–15 fps; D1/CIF 1 fps–25/30 fps)
Video Frame Rate	PAL: 1 fps–25 fps; NTSC: 1 fps–30 fps
Video Bit Rate	32 Kbps–6144 Kbps per channel
Audio Sampling	8 KHz, 16 bit per channel
Audio Bit Rate	64 Kbps per channel
Bit Rate Type	Video stream and composite stream
Video Output	1 HDMI, 1 VGA
Multi-screen Display	Without IP extension: 1/4/8/9; with IP extension: 1/4/8/9/16
Third-party Camera Access	Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Video Compression	AI Coding / H.265+ / H.265 / H.264+ / H.264
Audio Compression	G.711A / G.711u / PCM
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Browser	Chrome, IE9 or above, Firefox
Network Mode	Single-address mode
Record Mode	Manual, Schedule, Motion Detection, Alarm, Stop
Recording Playback	1/4/09
Backup Method	USB Device / Network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Disk Group	Yes
Audio Input	4 RCA (external), 8 BNC (coaxial)
Audio Output	1 RCA
Two-way Talk	Yes (shares audio input with channel 1)
Alarm Input	8 channels
Alarm Output	3 channels
HDD Interface	2 SATA Ports, up to 16TB for a single HDD
RS-485	1 Port, for PTZ Control
USB	2 USB Ports (1 USB 2.0, 1 USB 3.0)
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply	DC 12V, 4A
Power Consumption	Lower than 10 W
Net Weight	1.64 kg (3.62 lb)
Gross Weight	2.82 kg (6.22 lb)
Product Dimensions	1U, 375.0 mm × 289.0 mm × 53.0 mm (W × D × H)
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
