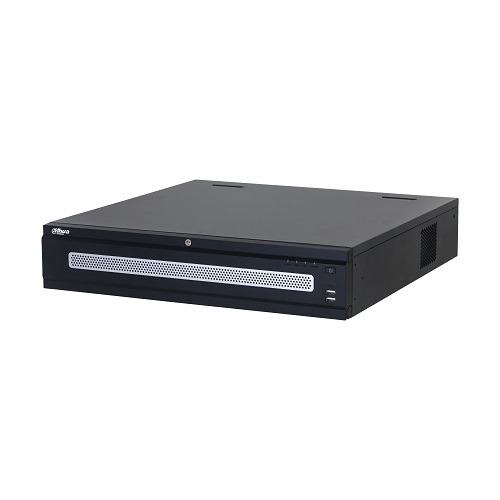

32-Channel 4K IP Network Video Recorder NVR608H-32-XI

Price: 1401.50 €

Products ID:	170872
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6923172546487

Delivery options to:

Choose country

The NVR608H-32-XI IP network video recorder supports up to 32 network camera channels and up to 32 MP recording resolution, offering comprehensive AI analytics and flexible storage architecture.

Key Features

Supports up to 32 IP channels with decoding resolution up to 32 MP
8 SATA ports (up to 16 TB each) with RAID 0/1/5/6/10 and hot swapping
Built-in AI analytics: face recognition, perimeter protection, SMD Plus, and video metadata
4 HDMI and 2 VGA outputs with multi-screen display configurations
2 RJ-45 Ethernet ports (10/100/1000/2500 Mbps) with network binding modes
16 alarm input channels and 8 alarm output channels

Channel Capacity	32 channels
Supported Resolution	32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
HDD Interface	8 SATA ports, up to 16 TB each
RAID Support	RAID 0/1/5/6/10
Video Outputs	4 × HDMI, 2 × VGA
Network Ports	2 × RJ-45 (10/100/1000/2500 Mbps)
USB Ports	4 (2 front USB 2.0, 2 rear USB 3.0)
Alarm In / Out	16 channels / 8 channels
Audio In / Out	1-channel RCA / 2-channel RCA
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG
Operating System	Embedded Linux
Power Supply	100–240 VAC, 50/60 Hz

How many hard drives can be installed in this recorder?

It accommodates up to 8 SATA hard drives with a maximum capacity of 16 TB per drive, and supports hot swapping as well as RAID 0/1/5/6/10.

What video outputs are provided on the device?

The recorder includes 4 HDMI ports (supporting up to 8K and 4K output) and 2 VGA ports (up to 1080p) supporting simultaneous and heterogeneous multi-screen display modes.

What AI features are processed directly by the recorder?

By the recorder itself, it performs face detection (4 channels), face recognition, perimeter protection (24 channels), SMD Plus (32 channels), and video metadata analysis (8 channels).
