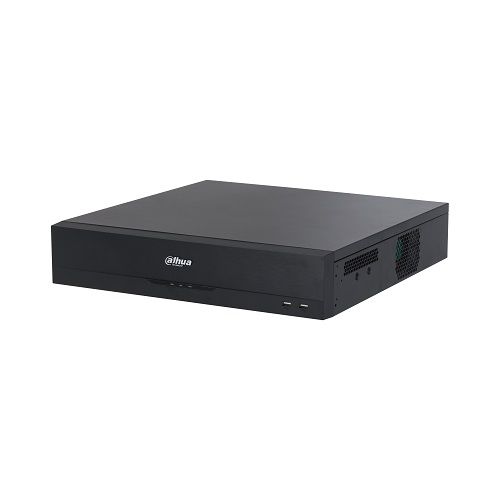

16-Channel IP Network Video Recorder NVR5816-16P-EI with PoE

Price: 1316.60 €

Products ID:	170866
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6923172589897

Delivery options to:

Choose country

The NVR5816-16P-EI is a 16-channel IP network video recorder engineered for demanding video surveillance setups, offering integrated PoE power and extensive storage capacity.

Key Features

Channel Capacity: Supports up to 16 IP camera channels with resolutions up to 32 MP.
PoE Connectivity: 16 built-in PoE ports (150 W total budget; ports 1–8 support ePoE).
Storage Interfaces: 8 SATA ports supporting up to 16 TB per drive, 1 eSATA port, and RAID 0/1/5/6/10 support.
Video Outputs: 2 HDMI outputs (with 4K support) and 2 VGA outputs.
AI Capabilities: Face detection and recognition, perimeter protection, SMD Plus, and ANPR plate reading.
Compression Standards: Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG.

Model	NVR5816-16P-EI
Access Channels	16
Network Bandwidth	384 Mbps (AI disabled) / 200 Mbps (AI enabled)
Supported Resolution	Up to 32 MP
Video Output	2 × HDMI, 2 × VGA (supports 4K display)
PoE Ports	16 ports (IEEE 802.3 af/at, ports 1–8 support ePoE, 150 W total)
HDD Interface	8 × SATA ports (up to 16 TB per HDD), 1 × eSATA
RAID	RAID 0/1/5/6/10
Video Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio I/O	1-channel RCA input / 2-channel RCA output
Alarm I/O	16 inputs / 8 outputs
Network Interface	1 × RJ-45 (10/100/1000 Mbps)
USB Ports	2 × front USB 2.0, 2 × rear USB 3.0
Power Supply	100–240 VAC, 50–60 Hz
Dimensions	440.1 mm × 457.9 mm × 89.1 mm
Net Weight	6.90 kg
