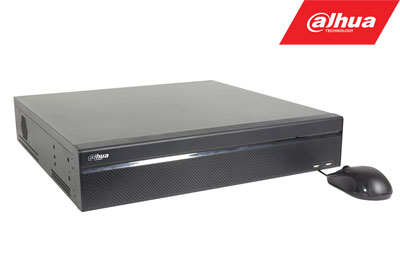

16-Channel IP Network Video Recorder NVR5816-16P-4KS2 PoE
Price: 653.40 €
| Products ID: | 169871 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4775342512028 |
Delivery options to:
Choose countryThe NVR5816-16P-4KS2 is a 16-channel IP network video recorder designed for high-resolution surveillance systems, supporting up to 12 MP preview and playback.
Key Features
- 16 IP camera inputs with 16 built-in PoE ports
- Maximum incoming bandwidth of up to 320 Mbps
- Video decoding support for H.265, H.264, MJPEG, and MPEG4
- Dual HDMI and single VGA video outputs with up to 4K resolution
- Storage support for up to 8 SATA III HDDs (up to 8TB each) and 1 eSATA port
- 16 alarm input channels and 6 relay output channels
| Model | NVR5816-16P-4KS2 |
|---|---|
| IP Camera Channels | 16 Channels |
| PoE Ports | 16 Ports (IEEE802.3af/at) |
| Incoming Bandwidth | Up to 320 Mbps |
| Recording Resolution | 12Mp / 8Mp / 6Mp / 5Mp / 4Mp / 3Mp / 1080P / 720P / D1 |
| Compression | H.265 / H.264 / MJPEG / MPEG4 |
| Video Outputs | 2x HDMI (1x up to 3840x2160), 1x VGA |
| Internal Storage | 8 SATA III ports, up to 8TB capacity for each HDD |
| External Storage | 1 eSATA port |
| Network Interface | 1 RJ-45 port (10/100/1000 Mbps) |
| USB Interfaces | 4 ports (2 Rear USB 3.0, 2 Front USB 2.0) |
| Alarm Interface | 16 Channel Input / 6 Channel Relay Output |
| Audio | Two-way talk (1 Channel Input, 1 Channel Output, RCA) |
| Power Supply | AC 100–240 V, 50/60 Hz |
How many hard drives does this NVR support?
It supports up to 8 internal SATA III hard drives, each with a capacity of up to 8TB, as well as 1 eSATA port.
Does this recorder have built-in PoE ports for cameras?
Yes, it is equipped with 16 integrated PoE ports conforming to IEEE802.3af/at standards.
What is the maximum supported camera resolution?
The recorder supports camera preview and playback resolutions up to 12 MP.
