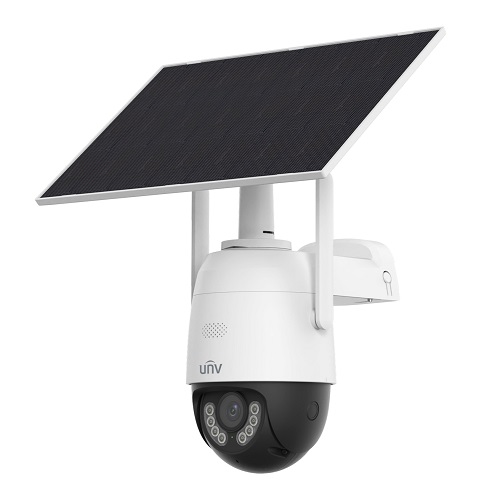

Smart Outdoor PT Solar Battery Security Camera, 3MP, 4G
Uniview
| Products ID: | 195778 |
|---|---|
| Manufactured by: | Uniview |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001085070 |
Delivery options to:
Choose countryThe autonomous 3MP outdoor PT camera with an integrated 10Ah battery and solar charging is designed for surveillance in locations without Wi-Fi or permanent electrical wiring, such as country houses, construction sites, farms, and storage facilities. Network connectivity is handled via 4G LTE using a Nano-SIM card.
Image Clarity and Night Vision
This camera captures clear video at 3MP resolution (2304x1296) and utilizes efficient H.265 video compression to reduce data traffic and storage requirements. Night surveillance is supported by dual illumination featuring infrared and warm white light up to 30 metres. Smart IR regulates infrared output automatically, while the "Polar Night" mode enhances visibility in dark conditions.
Smart Detection and PT Control
Equipped with human and vehicle detection, the camera identifies significant motion events and helps reduce false alerts. Two-way audio is enabled via the integrated microphone and speaker. Pan and tilt functionality allows a horizontal rotation range of 0° to 345° and a vertical tilt range of 0° to 90°.
Autonomous Power and Weatherproof Build
The integrated 10Ah battery recharges using the included 10W solar panel. At ambient temperatures below 0°C, the system warms the battery before initiating charging. Its IP66-rated housing withstands dust and rain, while the graphene-based front section aids heat dissipation across an operating range of -20°C to +50°C.
| CMOS sensor | 1/2.7" 3MP |
|---|---|
| Lens | 4mm F1.0 |
| Iris | Fixed |
| Field of view | 84.3° (H) |
| Max. resolution | 2304x1296 pixels |
| LED (warm light) illumination | Up to 30m |
| IR illumination | Up to 30m |
| IR wavelength | 850 nm |
| IR on/off | Automatic |
| Day/Night | ICR, IR-cut filter |
| Min. illumination | 0.0005 lux (Colour, F1.0, AGC On); 0 lux (IR on) |
| Horizontal range (Pan) | 0–345° |
| Vertical range (Tilt) | 0–90° |
| Pan/Tilt speed | Pan: 1°/s ~ 40°/s; Tilt: 1°/s ~ 30°/s |
| Video compression | H.265 |
| Frame rate | Main stream: 3MP (2304x1296) @ 15fps; sub stream: 720P (1280x720) @ 15fps, D1 (720x576) @ 15fps |
| Bit rate | 1024 Kbps |
| Signal-to-noise ratio (S/N) | >52dB |
| Noise reduction (DNR) | 2D/3D DNR |
| White balance | Automatic |
| Functions | Smart motion detection with human and vehicle recognition |
| Security | RTSP authentication, user authentication, HTTP authentication |
| Auto tracking | Not supported |
| Audio compression | G.711U |
| Audio bit rate | 64 Kbps |
| Built-in microphone and speaker | Yes |
| Two-way audio | Supported |
| MicroSD card slot | Supports cards up to 512GB |
| Network | 4G LTE |
| 4G frequency bands | LTE-FDD B1 / B3 / B5 / B8; LTE-TDD B34 / B38 / B39 / B40 / B41 |
| 4G standards | LTE-FDD, LTE-TDD |
| Network protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, HTTP, SSL/TLS |
| Integration | API |
| Software | App, EZStation |
| Charging interface | USB Type-C |
| Camera power supply | DC 5V / 2A |
| Power consumption | 6.5 W |
| Solar panel power | 10 W |
| Solar panel output | 5V / 2A |
| Battery capacity | 10 Ah |

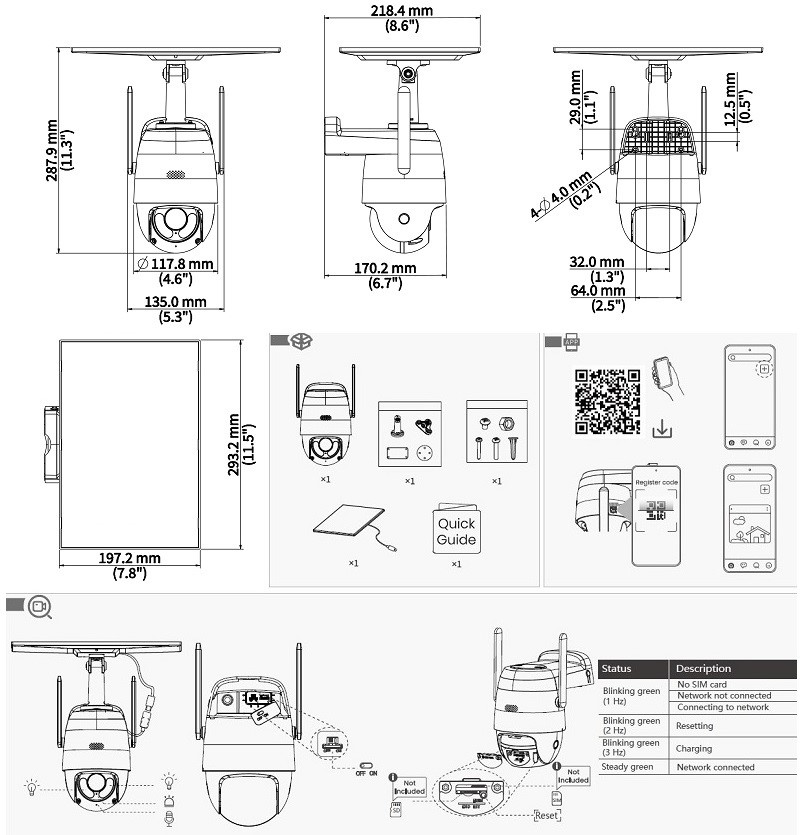

| Dimensions | Ø197.2mm x 293.2mm x 287.9mm |
| LED status indicator | 1, green |
| Operating temperature | -20°C ~ +50°C |
| Protection rating | IP66 |
Is a Wi-Fi connection required for this camera?
No, a Wi-Fi connection is not required. The camera connects via a 4G LTE mobile network using a Nano-SIM card.
What is the maximum supported MicroSD card capacity?
The camera supports MicroSD cards up to 512GB. Note that the MicroSD card and SIM card are sold separately.
How does battery charging work in sub-zero temperatures?
At temperatures below 0°C, the integrated system heats the battery first before initiating solar charging.
