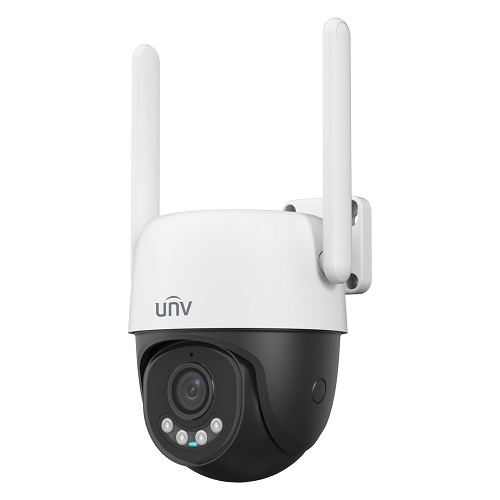

Smart Outdoor PT Camera 3MP 4G LTE IP66

Price: 74.40 €

Products ID:	195801
Manufactured by:	Uniview
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990001085087

Delivery options to:

Choose country

The smart outdoor PT camera with 3MP resolution and IP66 weather resistance provides video surveillance in locations without Wi-Fi by transmitting data over 4G LTE mobile networks.

Wide Area Coverage and High Resolution

The pan/tilt mechanism rotates horizontally up to 345° and tilts vertically up to 90° to minimize blind spots. It captures video at 2304x1296 resolution at 25 fps with Ultra 265, H.265, and H.264 compression standards.

Intelligent Detection and Dual Night Vision

Equipped with human and vehicle detection, motion detection, high-decibel sound detection, and auto tracking, the camera helps detect relevant events accurately. Dual illumination provides both IR and warm white light up to 30 meters, supported by audible and visual alarm alerts.

Two-Way Audio and Local Storage

A built-in microphone and speaker enable two-way remote communication with visitors. Video recordings can be saved directly to a microSD card with a capacity of up to 512GB.

Ingress Protection	IP66
CMOS Sensor	1/3" 3MP
Scanning System	Progressive scan
Lens	4.0mm, F1.6
Iris	Fixed
Field of View	75.0° (H)
Max. Resolution	2304x1296
LED (Warm Light) Illumination	Up to 30 m
IR Illumination	Up to 30 m
IR Wavelength	850 nm
IR On/Off Control	Automatic
Day/Night	ICR, IR-cut filter
Minimum Illumination	0.003 lux (Color, F1.6, AGC On); 0 lux (IR On)
Electronic Shutter	Auto/Manual, 1 ~ 1/100000 s
Image Flip	Normal / Vertical / Horizontal / 180°
Pan Range	0-345°
Tilt Range	0-90°
Pan/Tilt Speed	Pan 1°/s ~ 40°/s; Tilt 1°/s ~ 30°/s
Presets	20
Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main stream: 3MP (2304x1296) @ 25fps; 2MP (1920x1080) @ 25fps; 720p (1280x720) @ 25fps. Sub stream: 640x360 @ 25fps; 2CIF (704x288) @ 25fps; CIF (352x288) @ 25fps
Bit Rate	128 Kbps ~ 2048 Kbps
WDR	DWDR
S/N Ratio	>52 dB
ROI	Supported
Privacy Masking	Supported (NVR only)
Noise Reduction	2D/3D DNR
White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2
Image Enhancement	Digital Defog
Detection Functions	Motion detection, human and vehicle detection, high-decibel sound detection
Security	IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Auto Tracking	Supported
Digital Zoom	4x
Audio Compression	G.711U, G.711A
Audio Bit Rate	64 Kbps
Two-Way Audio	Supported (built-in microphone and speaker)
Audio Noise Reduction	Supported
MicroSD Card Slot	Supports cards up to 512GB
4G Frequency Bands	LTE-FDD B1 / B3 / B5 / B7 / B8 / B20 / B28; LTE-TDD B38 / B40 / B41
4G Standards	LTE-FDD, LTE-TDD
Integration	API, SDK
Network Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP
Supported Browsers	IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Network Interface	1 x RJ45 10M/100M Base-TX Ethernet
Power Interface	Ø5.5 mm coaxial DC power connector
Power Supply	DC 12V
Power Consumption	8W

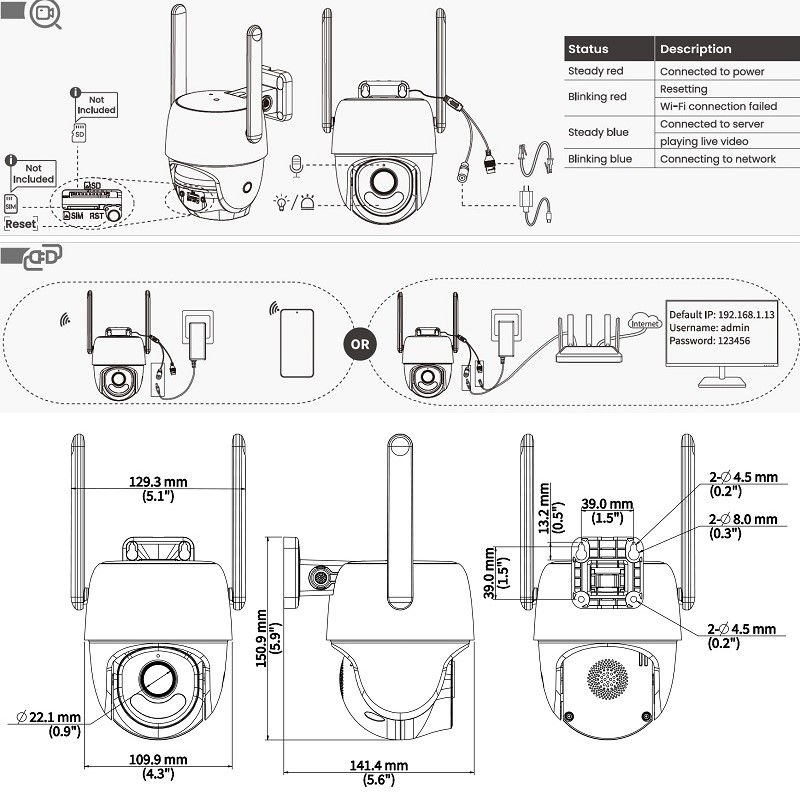

Dimensions	Ø110 mm x 141 mm x 151 mm (Ø4.3" x 5.6" x 6.0")
LED Status Indicator	1, red/blue
Operating Temperature	-30°C ~ +60°C
