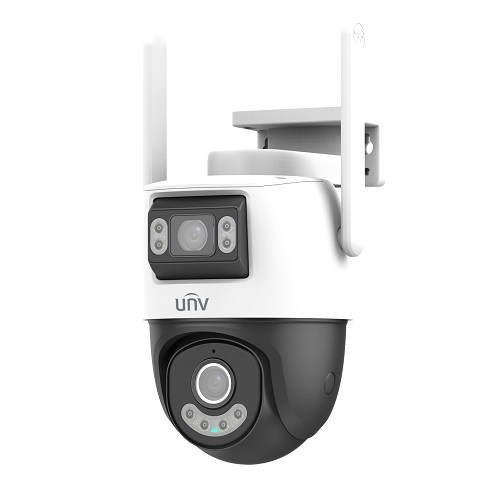

Smart Outdoor Dual-Lens PT Camera, 3MP+3MP, 4G LTE, IP66
Uniview
| Products ID: | 195779 |
|---|---|
| Manufactured by: | Uniview |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001085094 |
Delivery options to:
Choose countryThe smart outdoor PT camera features a dual-lens 3MP + 3MP system and IP66 weather resistance, combining a fixed panoramic camera and an adjustable PT camera in a single housing. Both video channels stream via one IP address, enabling simultaneous wide-area surveillance and close-up tracking.
Coverage and Intelligent Detection
The PT camera pans horizontally up to 350° and tilts vertically up to 90° to eliminate blind spots. Integrated detection capabilities identify humans and vehicles, detect high-decibel sounds, recognize camera tampering, and offer automated object tracking.
Connectivity and Night Illumination
Designed for locations without Wi-Fi, the camera transmits data over 4G LTE mobile networks using a Nano-SIM card and includes an RJ45 10/100 Mbps port for wired network setups. Dual illumination provides IR and warm white light with a range of up to 30 meters.
- Two-way audio communication with integrated speaker and microphone
- Audible and visual alarm signals
- Local recording via microSD card slot supporting up to 512GB
| Image Sensor | 1/3" CMOS |
|---|---|
| Scanning System | Progressive scan |
| Panoramic Camera Lens | 2.8mm, F1.6 |
| PT Camera Lens | 4.0mm, F1.6 |
| Panoramic Field of View | 85.9° (H) |
| PT Field of View | 74.3° (H) |
| Digital Zoom | 4x |
| Max. Resolution | 2304x1296 |
| Warm LED Illumination | Up to 30m |
| IR Illumination | Up to 30m |
| IR Wavelength | 850 nm |
| Day/Night | ICR, automatic IR-cut filter |
| Minimum Illumination | 0.003 lux (Colour, F1.6, AGC On); 0 lux (IR On) |
| Panoramic Horizontal Range | -150° ~ 150° |
| Panoramic Vertical Range | -5° ~ 30° |
| PT Pan Range | 0° ~ 350° |
| PT Tilt Range | 0° ~ 90° |
| PT Pan / Tilt Speed | Pan 1°/s ~ 40°/s; Tilt 1°/s ~ 30°/s |
| Presets | 20 |
| Video Compression | H.265, H.264 |
| Frame Rate | Main stream: 3MP (2304x1296) @ 15fps; Sub stream: up to 15fps |
| WDR | DWDR |
| Noise Reduction | 2D/3D DNR |
| Detection Functions | Human and vehicle recognition, high-decibel sound detection, camera tampering |
| Auto Tracking | Supported |
| Built-in Microphone and Speaker | Yes |
| Two-Way Audio | Supported |
| MicroSD Card Slot | Up to 512GB |
| SIM Card | Nano-SIM |
| 4G Standard | LTE-FDD |
| 4G Frequency Bands | LTE-FDD B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| Wi-Fi | Not supported |
| Network Interface | 1 x RJ45 10M/100M Base-TX Ethernet |
| Power Connector | Ø5.5 mm coaxial DC power connector |
| Power Supply | DC 12V |
| Power Consumption | 10.5W |
| Dimensions | Ø117.0mm x 201.9mm |
| Operating Temperature | -30°C ~ +60°C |
| Ingress Protection | IP66 |
| Surge Protection | 4 KV |
| Weight | 0.61kg |
| Warranty | 24 months |
Are the SIM card and microSD card included in the package?
No, the microSD card and SIM card are sold separately.
What is the night vision range of this camera?
The camera features both infrared and warm white LED illumination with an effective range of up to 30 meters.
How does the camera connect to the internet?
It connects via a 4G LTE mobile network using a Nano-SIM card or via a wired RJ45 Ethernet connection. Wi-Fi is not supported.
