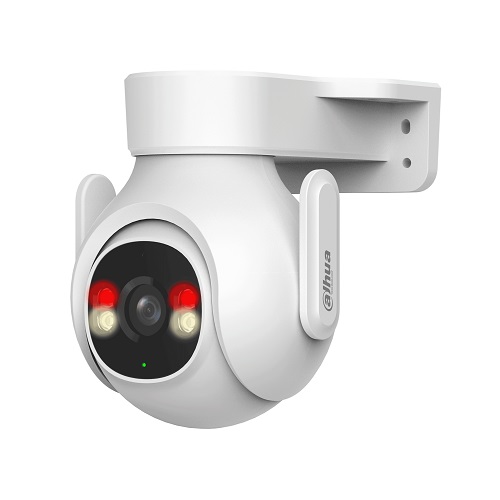

P5B-PV 5 MP pan-and-tilt IP camera with Wi-Fi and two-way audio
Delivery options to:
Choose countryThe P5B-PV is a compact Picoo series pan-and-tilt IP camera with 2880 × 1620 resolution. It detects people and vehicles, and triggers sound and light alarms when an intrusion is detected, sending event information to the mobile client.
Imaging and viewing direction
Adjust the pan angle from 0° to 355° and tilt from 0° to 90°. Smart Dual Illuminators combine infrared and warm lighting and support full-colour video recording. Each illumination type has a range of up to 30 m.
Communication and connectivity
- Two-way audio: the built-in microphone and speaker let you talk to people in front of the camera.
- Networking: connect through RJ-45 or 2.4 GHz Wi-Fi.
- Storage: supports a microSD card up to 256 GB.
- Mobile access: DMSS management software and iOS and Android clients.
The camera requires a 12 V DC, 1 A power supply. Its operating temperature range is –20 °C to +50 °C.
| Image sensor | 1/3" CMOS |
|---|---|
| Maximum resolution | 2880 (H) × 1620 (V) |
| Electronic shutter speed | Auto/manual: 1/3 s–1/100 000 s |
| Illumination distance | Up to 30 m (98.43 ft), IR; up to 30 m (98.43 ft), warm light |
| Illuminator on/off control | Auto |
| Number of illuminators | 2 IR LEDs; 2 warm-light illuminators |
| Angle adjustment | Pan: 0°–355°; tilt: 0°–90° |
| Maximum aperture | F1.6 |
| Field of view | Horizontal: 78°; vertical: 40°; diagonal: 93° |
| Human detection | Yes |
| Vehicle detection | Yes |
| Video compression | H.265 |
| Video frame rate | Main stream: 2880 × 1620 at 1–25/30 fps; sub stream: 640 × 360 at 1–25/30 fps |
| Supported resolutions | 5M (2880 × 1620); nHD (640 × 360) |
| Video bit rate | H.265: 80–4096 kbps |
| Day/night mode | Auto (ICR)/colour/black and white |
| Wide dynamic range | DWDR |
| Motion detection | Yes |
| Smart illumination | Yes |
| Image rotation | 0°/180° |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Audio compression | G.711a |
| Network port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax; 2.412–2.472 GHz; 2.4 GHz band |
| Storage | microSD card up to 256 GB |
| Management software | DMSS |
| Mobile clients | iOS; Android |
| Power supply | 12 V DC, 1 A |
| Power consumption | Basic: 1.68 W; maximum: 4.56 W (H.265 and warm light on) |
| Operating temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Alarm functions | Sound and light alarms, with information sent to the mobile client when an intrusion is detected |
| Two-way audio | Yes |
| EAN | 6923172563491 |
|---|
Can the camera connect by cable or Wi-Fi?
Yes. It has an RJ-45 (10/100 Base-T) port and 2.4 GHz Wi-Fi supporting IEEE 802.11b/g/n/ax.
What power supply and memory card does it require?
The camera requires 12 V DC, 1 A power. It supports a microSD card with a capacity of up to 256 GB for recording storage.
