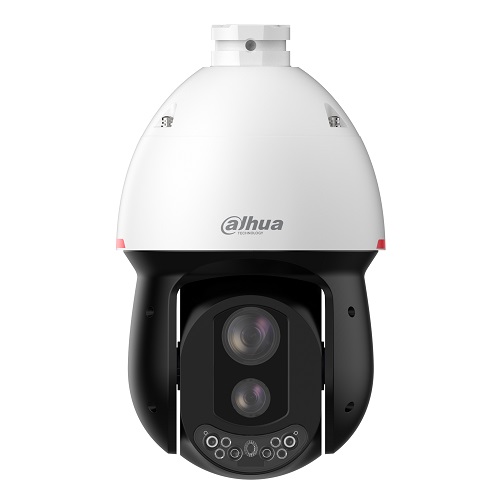

Network PTZ Dome Camera SD4F420DA-HNY 4MP 20x Hybrid Zoom IP66
Price: 485.00 €
| Products ID: | 178228 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6937552446380 |
Delivery options to:
Choose countryThe SD4F420DA-HNY network PTZ dome camera features a 1/1.8" CMOS sensor, 4MP maximum resolution, and 20x hybrid zoom for comprehensive area surveillance.
Key Features
- 4MP (2688 x 1520) maximum resolution with progressive scanning
- 20x hybrid zoom with a 2.8 mm–56 mm focal length
- Warm light illuminator with coverage up to 80 m
- Endless 360° pan and –15° to 90° tilt range
- IVS perimeter protection, face detection, and SMD 3.0 support
- Window heating function to clear moisture, ice, and fog
- IP66 weather protection and power via 12 VDC or PoE+ (802.3at)
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 2688 (H) x 1520 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100 000 s |
| Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 80 m (Warm light) |
| Illuminator Control | Auto; Manual; Zoomprio |
| Illuminator Number | 5 (Warm light) |
| Hybrid Zoom | 20x (Optical + Digital) |
| Focal Length | 2.8 mm–56 mm |
| Max. Aperture | F1.0–F1.1 |
| Field of View | H: 7°–105°; V: 4°–57°; D: 8°–125° |
| Iris Control | Auto; Manual |
| Close Focus Distance | 1 m |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| AI Coding | AI H.265; AI H.264 |
| Streaming Capability | 3 streams |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1 |
| Network Port | RJ-45 (10/100 Base-T) |
| Edge Storage | Micro SD card (supports max. 512 GB) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to 90°, auto flip 180° |
| Preset | 300 |
| Power Supply | 12 VDC (±10%), 2.5 A; PoE+ (802.3at) |
| Protection Rating | IP66; TVS 6000 V lightning proof |
| Operating Temperature | –40 °C to +65 °C |
| Casing Material | Metal + Plastic |
| Product Dimensions | 270.4 mm x 160 mm |
| Net Weight | 2.2 kg |
What is the maximum micro SD card capacity supported by the SD4F420DA-HNY?
The camera supports micro SD cards with a capacity of up to 512 GB, along with FTP, SFTP, and NAS storage options.
What power sources are supported by this camera?
It can be powered via a 12 VDC (2.5 A) power supply or through PoE+ (802.3at).
What is the range of the built-in warm light illuminator?
The camera features 5 warm light illuminators providing an illumination distance of up to 80 m.
