Mini 2MP HD PTZ Dome Camera SD22204GC-LB 4x Optical Zoom
Price: 89.70 €
| Products ID: | 170509 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554949135 |
Delivery options to:

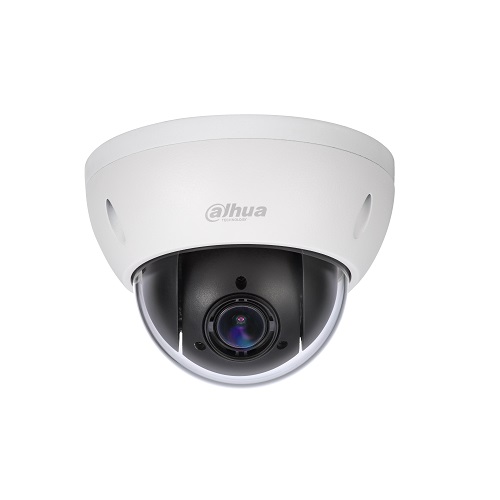

Choose countryThe SD22204GC-LB is a compact 2 Megapixel PTZ dome camera equipped with a 4x optical zoom lens and pan/tilt capabilities for flexible area monitoring.
Key Features
- Image Sensor: 1/2.8" STARVIS CMOS delivering up to 1080P resolution
- Optical Zoom: 4x optical zoom with a 2.7 mm–11 mm focal length
- PTZ Movement: 0°–355° pan range and 0°–90° tilt range
- Image Enhancement: 120 dB true WDR, 2D/3D noise reduction, and BLC/HLC
- Multi-Format Output: Supports CVI, TVI, AHD, and CVBS video modes
- Durable Enclosure: Metal housing rated IP66 for weather resistance and IK10 for impact protection
| Model | SD22204GC-LB |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Resolution | 2MP (1920 × 1080) |
| Focal Length | 2.7 mm–11 mm |
| Optical Zoom | 4x |
| Digital Zoom | 16x |
| Pan/Tilt Range | Pan: 0°–355°, Tilt: 0°–90° |
| Presets | 300 |
| Video Output Modes | CVI, TVI, AHD, CVBS |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Ingress Protection | IP66, IK10 |
| Casing Material | Metal |
| Power Supply | 12V DC / 1.5A ±10% |
| Power Consumption | 5W (6W with PTZ active) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Dimensions | Φ122 mm × 89 mm |
| Net Weight | 0.6 kg |
What video output formats are available?
The camera supports switchable CVI, TVI, AHD, and CVBS output modes via its BNC port.
What is the environmental rating of this camera?
The camera has an IP66 rating for dust and water resistance, along with an IK10 vandal-proof rating.
