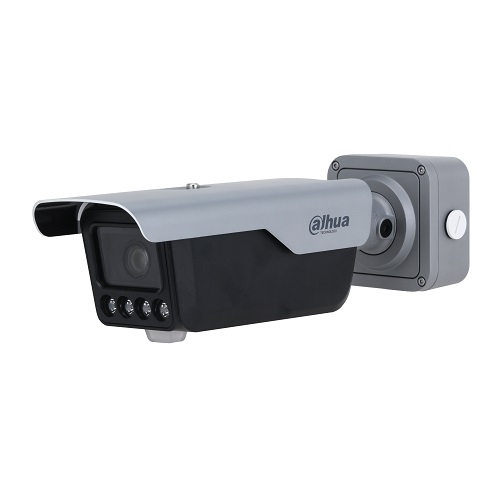

ITC413-PW4D-IZ1 ANPR IP camera with 2.7–12 mm motorised lens
Delivery options to:
Choose countryThe ITC413-PW4D-IZ1 is an ANPR network camera for detecting vehicles and recognising number plates. Its motorised 2.7–12 mm vari-focal lens adjusts the field of view, and baseline plate support includes Latvia, Lithuania and Estonia.
Recognition and installation conditions
The camera recognises vehicles without plates, 147 vehicle logos, 12 colours and 10 vehicle types. Maximum detection speed is 80 km/h, with a specified capture distance of 3–8 m and detection width of 3–4 m. The European number plate recognition rate of ≥98% applies under recommended installation and lighting conditions.
Access control and event detection
- Barrier control: relay outputs connect external equipment such as entry and exit barriers.
- Perimeter monitoring: intrusion and loitering detection in up to 4 areas, with sound and light alarms and custom audio playback.
- Illumination: 730 nm IR and warm light, with illumination distances of 10 m for ANPR and 30 m for video monitoring.
- Recording and integration: TF card slot, ONVIF Profile S/T, API and SDK support.
Housing and power
The all-in-one structure incorporates a junction box and bracket. The camera is rated IP67 and IK10. It supports 12 V DC or PoE 802.3at Type 2 Class 4 power.
| Image sensor | 1/1.8" CMOS |
|---|---|
| Maximum resolution | 2688 × 1520 |
| Maximum detection speed | 80 km/h |
| Minimum illumination | 0.001 lux at F1.4 (colour, 30 IRE); 0.0002 lux at F1.4 (B/W, 30 IRE); 0 lux with illuminator on |
| Lens type | Motorised vari-focal |
| Focal length | 2.7–12 mm |
| Maximum aperture | F1.4 |
| Focus control | Auto, area focus, manual |
| Illuminator type | Dual: 730 nm IR and warm light |
| Illumination distance | ANPR: 10 m (32.81 ft); video monitoring: 30 m (98.43 ft) |
| Video compression | H.265+; H.264+; H.264H; H.264B; H.264M (default); H.265; MJPEG |
| Video stream resolutions | Main: 4M (2688 × 1520), 1080p (1920 × 1080), 720p (1280 × 720); sub: 720p (1280 × 720), 960H (960 × 576, 960 × 480), D1 (704 × 576, 704 × 480), CIF (352 × 288, 352 × 240) |
| Bit rate control | CBR; VBR |
| Noise reduction | 3D NR |
| Regions of interest (ROI) | 3 |
| Memory card support | Built-in TF card slot; Kingston, Dahua and SanDisk cards: 16 G, 32 G, 128 G, 256 G |
| Allowlist and blocklist | Allowlist: 110 000; blocklist: 110 000 |
| IVS | Intrusion and loitering detection; up to 4 areas |
| Sound and light alarm | Blue and red indicator; custom audio playback |
| Capture distance | 3–8 m (9.84–26.25 ft) |
| Detection width | 3–4 m (9.84–13.12 ft) |
| Network protocols | HTTP; HTTPS; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP; DDNS; SNMP; PPPoE |
| Interoperability | ONVIF Profile S/Profile T; CGI; ITSAPI; P2P |
| Management software | DSS Pro; DSS Express; Cybercity; Smart PSS |
| Browser support | With plug-in: IE 9, 10, 11; Chrome 52 and earlier; Firefox 42 and earlier. Without plug-in: Chrome 92 and later |
| Wide dynamic range (WDR) | 140 dB |
| Day/night mode | IR filter; colour, B/W and auto modes |
| Built-in microphone | Pickup distance: 3 m (9.84 ft); sampling rate: 48 k |
| Built-in speaker | 2 W |
| Audio input | 1 channel, RCA |
| Audio output | 1 channel, RCA |
| Network port | RJ-45, 10/100/1000 auto-adaptive Ethernet |
| Alarm inputs | 2 optocoupler inputs; wet-node on/off value: 5 V |
| Alarm outputs | 2 relay outputs: 2 A at 30 V DC / 0.5 A at 125 V AC; supports barrier connection |
| RS-485 | 2; half duplex; Transparent, DHRS, data push through serial port |
| Wiegand | 1 channel, SHA-1, 26 bit |
| Maximum connections | 10 |
| Vehicle brand recognition | 147 logos |
| Vehicle colour recognition | 12: grey, black, white, silver, blue, green, purple, red, orange, pink, brown, yellow |
| Vehicle type recognition | 10: large bus, heavy truck, medium truck, sedan, van, light truck, medium bus, SUV, MPV, pickup |
| Vehicle capture rate | ≥99% under recommended installation and lighting conditions |
| Recognition rate | Approaching and departing vehicles: ≥96%; European vehicle plates: ≥98%, under recommended installation and lighting conditions |
| Remote control | Supported |
| Communication bands | 433 MHz; 868 MHz |
| Remote control distance | 15 m (49.21 ft) in an open, undisturbed environment |
| Power supply | 12 V DC, 2 A; PoE 802.3at, Type 2, Class 4: 44–57 V, 0.455–0.351 A, max. 20 W |
| Protection ratings | IP67; IK10 |
| Construction | Integrated junction box and bracket |
| Metadata and integration | Continuous metadata extraction 24/7; API and SDK support |
| Vehicles without plates | Recognition supported |
| EAN | 6923172581396 |
|---|
Does it recognise Baltic number plates?
Yes. Latvia, Lithuania and Estonia are included in baseline ANPR support. The stated recognition rates apply under recommended installation and lighting conditions.
Can it connect to a barrier?
Yes. It has 2 relay alarm outputs for external devices such as barriers, rated at 2 A at 30 V DC or 0.5 A at 125 V AC.
