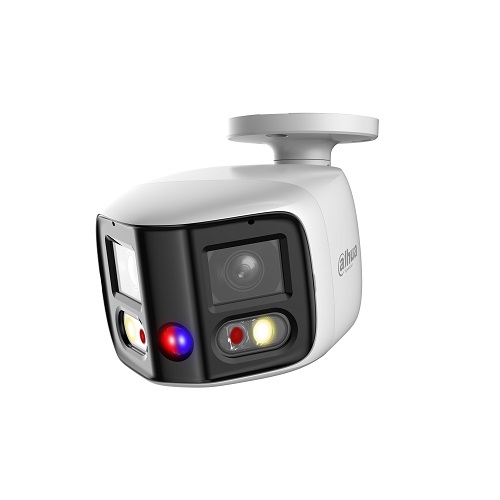

IPC-PFW3849S-A180-AS-PV 8 MP IP camera, 2.8 mm, 180°

291.40 €

Products ID: 197996

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–10 business days

Delivery options to:

The IPC-PFW3849S-A180-AS-PV is an 8 MP IP surveillance camera with dual CMOS sensors and a fixed-focal 2.8 mm lens. Its 180° horizontal and 86° vertical field of view covers a wide scene, with a maximum resolution of 4096 × 1860.

Imaging and event analysis

IR illumination reaches up to 25 m, while warm-light illumination reaches up to 20 m. Lighting can be controlled automatically or manually. The camera also provides 120 dB WDR and 3D noise reduction.

Perimeter monitoring: intrusion and tripwire detection support human and vehicle classification, alongside SMD 4.0.
Event review: Quick Pick works with an AI NVR, while Smart Search works with a Smart NVR. EPTZ enlarges and tracks intelligent alarm targets.
Audio: dual built-in microphones and a speaker, plus separate audio input and output.
Storage: microSD cards up to 256 GB, FTP, SFTP or NAS.

Connection and installation

Power the camera using PoE (802.3af) or 12 V DC (±30%). It supports ONVIF Profiles S, G and T. The metal housing has an IP67 protection rating, with an operating temperature range of –40 °C to +60 °C. The main stream supports up to 20 fps; simultaneous streams are subject to the total encoding capacity.

Image sensor	Dual 1/2.7" CMOS
Maximum resolution	4096 (H) × 1860 (V)
Electronic shutter speed	Auto/manual: 1/3–1/100 000 s
Minimum illumination	0.005 lux at F1.4 (colour, 30 IRE); 0.0005 lux at F1.4 (B/W, 30 IRE); 0 lux with illuminator on
Illumination distance	IR LED: up to 25 m (82.02 ft); warm light: up to 20 m (65.62 ft)
Illuminator control	Auto; manual
Angle adjustment	Pan: 0°–360°; tilt: 0°–77°; rotation: 0°–360°
Lens type	Fixed-focal
Focal length	2.8 mm
Field of view	Horizontal: 180°; vertical: 86°
Maximum aperture	F1.4
Close focus distance	0.8 m (2.62 ft)
DORI distances with 2.8 mm lens	Detect: 50.6 m (166.01 ft); observe: 20.2 m (66.27 ft); recognise: 10.1 m (33.14 ft); identify: 5.1 m (16.73 ft)
IVS perimeter protection	Intrusion and tripwire; both support classification and detection of humans and vehicles
SMD	SMD 4.0
Quick Pick	With an AI NVR: select human and vehicle targets from SMD events
Smart Search	With a Smart NVR: refined intelligent search, event extraction and merging into event videos
EPTZ	Enlarges and tracks intelligent alarm targets
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart codec	Smart H.265+; Smart H.264+
AI coding	AI H.265; AI H.264
Video frame rate	Main: 4096 × 1860 at 1–20 fps; sub: 1200 × 530 at 1–20 fps; third: 1920 × 860 at 1–20 fps. These are individual stream maxima; multiple streams are subject to total encoding capacity.
Stream capability	3 streams
Supported resolutions	4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432
WDR	120 dB
Noise reduction	3D NR
Motion detection	Off/on; 4 rectangular areas
Region of interest (ROI)	Yes, 4 areas
Privacy masking	4 areas
Built-in microphones	Yes, dual microphones
Built-in speaker	Yes
Audio compression	G.711a; G.711Mu; PCM; G.726; G.723
Network port	RJ-45 (10/100 Base-T)
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI
Storage	FTP; SFTP; microSD card up to 256 GB; NAS
Management software	Smart PSS Lite; DSS; DMSS
Mobile client platforms	iOS; Android
Audio input	1 channel, RCA port
Audio output	1 channel, RCA port
Alarm input	1 channel: wet contact, 5 mA, 3–5 V DC
Alarm output	1 channel: wet contact, 300 mA, 12 V DC
Power supply	12 V DC (±30%); PoE (802.3af)
Power consumption	Basic: 3.4 W (12 V DC), 3.8 W (PoE). Maximum with H.265, WDR, warm light, siren and light active deterrence and intelligence on: 9 W (12 V DC), 10.3 W (PoE).
Operating temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection rating	IP67
Casing	Metal
Product dimensions	183.1 × 99.0 × 78.0 mm (7.20 × 3.90 × 3.07 inches), L × W × H
Net weight	695 g (1.53 lb)
Gross weight	870 g (1.92 lb)
