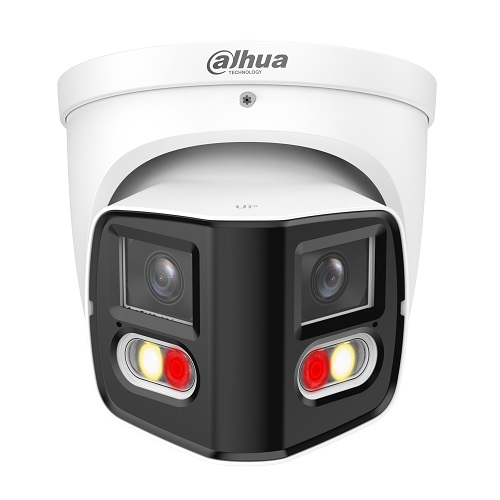

IP Network Camera 8MPPDW2849-A180-S-PV 8 MP 180° 2.8 mm IP67 PoE
Price: 183.80 €
| Products ID: | 178216 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6937552431850 |
Delivery options to:
Choose countryThe 8MPPDW2849-A180-S-PV IP network camera provides panoramic 8 MP surveillance with a wide 180° horizontal field of view.
Key Features
- Dual 1/2.7" CMOS image sensors with up to 4096 x 1860 resolution
- Fixed 2.8 mm lens offering 180° horizontal and 86° vertical coverage
- Smart dual illumination with IR LEDs up to 25 m and warm light up to 20 m
- Built-in dual microphones and speaker supporting sound warnings
- Intelligent perimeter protection (IVS) and SMD 3.0 human/vehicle classification
- Durable metal casing rated IP67 with PoE support
| Image Sensor | 1/2.7" CMOS (x2) |
|---|---|
| Max. Resolution | 4096 (H) x 1860 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100 000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE), 0.0005 lux@F1.4 (B/W, 30 IRE), 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 2.8 mm: up to 25 m (IR), up to 20 m (Warm light) |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–77°; Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.4 |
| Field of View | H: 180°; V: 86° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m |
| DORI Distance | Detect: 50.6 m; Observe: 20.2 m; Recognize: 10.1 m; Identify: 5.1 m |
| EPTZ | Yes |
| Perimeter Protection (IVS) | Intrusion, tripwire (human and vehicle classification) |
| SMD | SMD 3.0 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 4096 x 1860@(1–20 fps) |
| Streaming Capability | 3 streams |
| Resolution | 8M (4096 x 1860); 6M (3632 x 1632); 4M (3040 x 1368); 1200 x 536; 1920 x 860; 960 x 432; D1 |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes (max power: 2 W; max sound level: 110 dB at 10 cm) |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Network Port | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S / Profile G / Profile T / Profile M); CGI |
| Storage | Micro SD card (up to 512 GB); FTP; SFTP; NAS |
| Mobile Client | iOS; Android |
| Light Warning | Warm light warning (flash/solid duration: 5 s–30 s) |
| Sound Warning | 11 sound alarms, supports 10 custom sound alarms |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Directive 2014/30/EU |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 4.5 W (12 VDC) / 5.3 W (PoE); Max.: 9.7 W (12 VDC) / 11.2 W (PoE) |
| Operating Temperature | –40 °C to +60 °C |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | 135.2 mm x 122.0 mm |
| Net Weight | 0.95 kg |
What is the maximum supported Micro SD card capacity?
The camera supports Micro SD cards with a capacity of up to 512 GB.
What is the camera field of view?
With the 2.8 mm lens, the field of view is 180° horizontally and 86° vertically.
