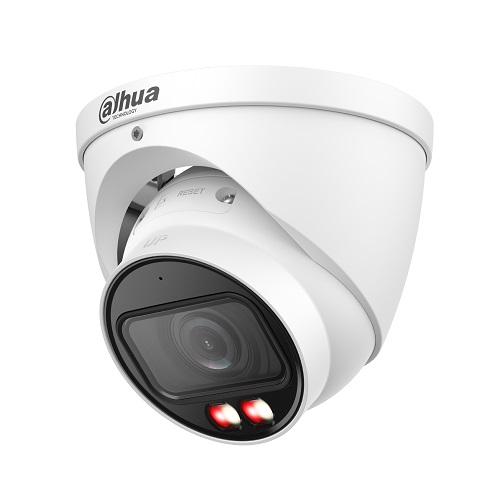

HDW2449T-ZS-IL 4 MP IP camera with 2.7–13.5 mm motorised lens

191.10 €

Products ID: 197581

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–10 business days

Delivery options to:

The HDW2449T-ZS-IL is a 4 MP network surveillance camera with a motorised 2.7–13.5 mm varifocal lens. Adjusting the focal length lets you select a wider view or a narrower area of coverage.

Imaging and illumination

Maximum resolution is 2688 × 1520 at up to 20 fps, with up to 25/30 fps available at 2560 × 1440. Both IR and warm light illumination reach up to 40 m. Smart Dual Light, 120 dB WDR and 3D noise reduction are supported.

Detection and recording

Perimeter protection: intrusion and tripwire detection with human and vehicle classification, alongside SMD Plus.
Audio: a built-in microphone captures sound.
Storage: supports microSD cards up to 256 GB, FTP and SFTP.
Search: works with a Smart NVR for refined intelligent search, event extraction and merging into event videos.

Connection and housing

The camera has an RJ-45 network port and supports ONVIF Profile S, T and G. Power it using 12 V DC or PoE (802.3af). Its metal housing is rated IP67, with an operating temperature range of −30 to +60 °C.

Image sensor	1/2.9" CMOS
Maximum resolution	2688 (H) × 1520 (V)
Electronic shutter speed	Auto/manual: 1/3–1/100 000 s
Minimum illumination	0.006 lux at F1.5 (colour, 30 IRE); 0.0006 lux at F1.5 (B/W, 30 IRE); 0 lux with illuminator on
Illumination distance	IR: up to 40 m (131.23 ft); warm light: up to 40 m (131.23 ft)
Illuminator on/off control	Auto; manual
Number of illuminators	2 multi-core illuminators (IR + warm light)
Angle adjustment	Pan: 0°–360°; tilt: 0°–78°; rotation: 0°–360°
Lens type	Motorised varifocal
Focal length	2.7–13.5 mm
Maximum aperture	F1.5
Field of view	Horizontal: 97°–28°; vertical: 52°–16°; diagonal: 117°–32°
IVS perimeter protection	Intrusion and tripwire; both functions support human and vehicle classification and detection
Smart motion detection	SMD Plus
Smart search	With a Smart NVR: refined intelligent search, event extraction and merging into event videos
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (substream only)
Smart codecs	Smart H.265+; Smart H.264+
Video frame rate	Main stream: 2688 × 1520 at 1–20 fps; 2560 × 1440 at 1–25/30 fps. Substream: 704 × 576 at 1–25 fps; 704 × 480 at 1–30 fps. Maximum rates per stream; multiple streams are subject to total encoding capacity.
Stream capability	2 streams
Supported resolutions	4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit rate control	VBR; CBR
Video bit rate	H.264: 32–6144 kbps; H.265: 12–6144 kbps
Day/night mode	Auto (ICR); colour; B/W
Backlight compensation BLC	Yes
Highlight compensation HLC	Yes
Wide dynamic range WDR	120 dB
White balance	Auto; natural; street lamp; outdoor; manual; regional custom
Noise reduction	3D NR
Motion detection	On/off; 4 rectangular areas
Region of interest RoI	4 areas
Smart illumination	Yes
Smart Dual Light	Yes
Image rotation	0°/90°/180°/270°; 90°/270° supported at 2688 × 1520 resolution and lower
Mirror	Yes
Privacy masking	4 areas
Built-in microphone	Yes
Audio compression	G.711a; G.711Mu; G.726; PCM
Network port	RJ-45 (10/100 Base-T)
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability	ONVIF Profile S, Profile T, Profile G; CGI
Storage	FTP; SFTP; microSD card up to 256 GB
Management software	Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile platforms	iOS; Android
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power supply	12 V DC; PoE (802.3af)
Power consumption	Basic: 2.3 W (12 V DC), 2.8 W (PoE). Max.: 7.8 W (12 V DC), 9.3 W (PoE), with H.265, intelligence on, WDR and warm light intensity.
Operating temperature	−30 to +60 °C (−22 to +140 °F)
Protection rating	IP67
Housing material	Metal
Net weight	0.69 kg (1.52 lb)
