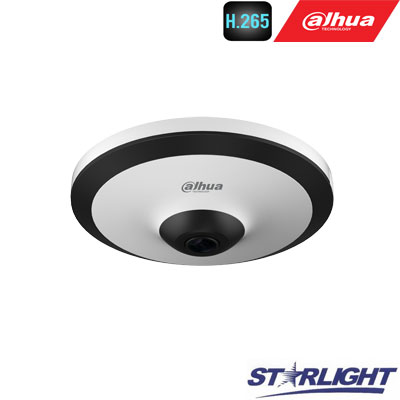

5MP Panoramic Fish-Eye IP Camera IPC-EW5541-AS
191.10 €
Dahua Technology Co., Ltd
Products ID: 171974
In supplier warehouse
Available to order: 6 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe IPC-EW5541-AS is a 5-megapixel panoramic Fish-Eye IP camera equipped with a 1.4 mm fixed lens, providing a complete 180° horizontal, vertical, and diagonal field of view for wide-area surveillance.
Key Features
- Image Sensor & Resolution: 1/2.7" 5MP progressive CMOS sensor delivering up to 2592 × 1944 resolution.
- Optics: 1.4 mm fixed-focal lens with 180° coverage and M12 mount.
- Night Vision: 3 IR LEDs providing up to 10 m illumination distance.
- Image Enhancement: 120 dB WDR, 3D DNR, BLC, and HLC for clear image capture in varied lighting.
- Audio & Storage: Built-in microphone, RCA audio input/output, and Micro SD card slot up to 256 GB.
- Power Supply: Supports 12V DC power input and Power over Ethernet (PoE).
| Model | IPC-EW5541-AS |
|---|---|
| Image Sensor | 1/2.7” 5 Megapixel progressive CMOS |
| Max. Resolution | 2592 × 1944 |
| Focal Length | 1.4 mm |
| Field of View | Horizontal: 180°, Vertical: 180°, Diagonal: 180° |
| IR Distance | 10 m |
| Number of IR LEDs | 3 |
| Min. Illumination | 0.006 Lux @F2.0 |
| WDR | 120 dB |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Built-in MIC | Yes |
| Audio Port | 1 channel in (RCA), 1 channel out (RCA) |
| Alarm Port | 1 in, 1 out |
| Storage | Micro SD card (max. 256 GB) |
| Network | RJ-45 (10/100 Base-T) |
| Power Supply | 12V DC / PoE |
| Casing | Metal + plastic |
| Dimensions | 44.6 mm × Φ126.2 mm |
| Net Weight | 299 g |
| EAN | 6939554993855 |
|---|
What is the maximum Micro SD card capacity supported?
The camera supports Micro SD cards with a capacity of up to 256 GB.
What is the viewing angle of this camera?
The 1.4 mm lens provides a 180° field of view horizontally, vertically, and diagonally.
Can the camera be powered using PoE?
Yes, it supports both 12V DC power input and Power over Ethernet (PoE).
