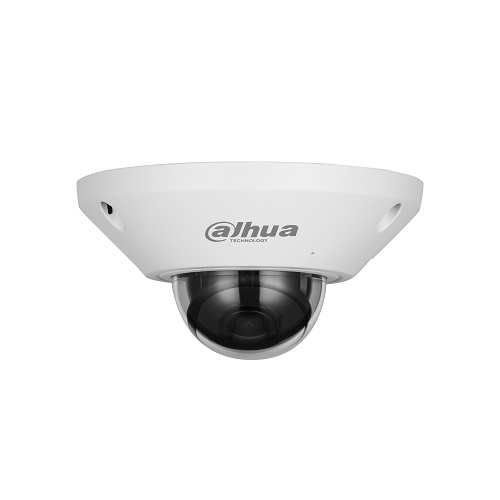

5MP Fisheye IP Camera IPC-EB5541-AS (1.4mm, PoE, IP67, IK10)
Price: 213.20 €
| Products ID: | 171973 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554948930 |
Delivery options to:
Choose countryThe IPC-EB5541-AS is a 5MP fisheye IP camera designed for wide-area surveillance, providing a 180° panoramic field of view and high-definition 2592 × 1944 resolution.
Key Features
- Panoramic Coverage: 1.4 mm fixed-focal lens delivering 180° horizontal, vertical, and diagonal field of view.
- Image Performance: 1/2.7" 5MP CMOS sensor with 120 dB WDR and 3D DNR for clear image capture.
- Smart Functions: Perimeter protection (tripwire, intrusion), people counting across 4 areas, and heat mapping.
- Audio & Interfaces: Built-in microphone, RCA audio input/output, and alarm input/output ports.
- Durable Construction: Robust metal casing rated IP67 for weather resistance and IK10 for impact protection.
- Flexible Power: Supports 12V DC or Power over Ethernet (PoE).
| Image Sensor | 1/2.7” 5 Megapixel progressive CMOS |
|---|---|
| Max. Resolution | 2592 (H) × 1944 (V) |
| Focal Length | 1.4 mm |
| Field of View | Horizontal: 180°, Vertical: 180°, Diagonal: 180° |
| WDR | 120 dB |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Built-in MIC | Yes |
| Audio Port | 1 channel in (RCA), 1 channel out (RCA) |
| Alarm Port | 1 channel in, 1 channel out |
| Storage | Micro SD card (up to 256 GB), FTP, SFTP, NAS |
| Network | RJ-45 (10/100 Base-T) |
| Protection Rating | IP67, IK10 |
| Casing | Metal |
| Power Supply | 12V DC / PoE |
| Power Consumption | Max. 5.1W (12V DC); 6W (PoE) |
| Operating Temperature | -30°C to +55°C |
| Dimensions | 62.0 mm × Ø110.0 mm |
| Net Weight | 387 g |
What is the field of view of this camera?
The camera features a 1.4 mm fisheye lens that provides a 180° field of view horizontally, vertically, and diagonally.
Can the camera be powered via Ethernet cable?
Yes, it supports Power over Ethernet (PoE) as well as a standard 12V DC power supply.
Does it have a built-in microphone?
Yes, the camera includes an integrated built-in microphone along with external RCA audio input and output ports.
