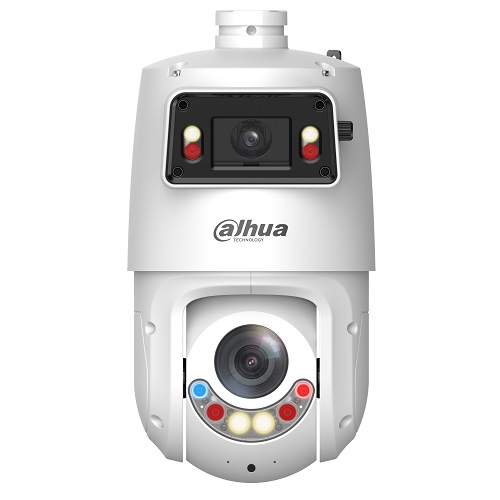

4 MP PTZ IP Camera SDT4E425-4F-GB-A-PV1-S2 with 25x Optical Zoom

Price: 537.20 €

Products ID:	178226
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939554936432

Delivery options to:

Choose country

Dual-channel 4 MP PTZ IP network camera combining an overview fixed lens and an agile pan-tilt-zoom detail lens for comprehensive area monitoring and targeted detail capture.

Key Features

Dual 4 MP sensors delivering 2560 x 1440 resolution on both channels
25x optical zoom on detail channel with 5 mm–125 mm focal length
Active deterrence with red-blue warning light and customizable sound alarms
Multi-mode illumination with IR (up to 100 m) and warm light (up to 50 m)
Integrated dual microphones and built-in speaker for two-way audio
Rugged ADC12 aluminum housing with IP66 ingress protection and PoE+ support

Image Sensor	Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS
Resolution	Overview channel: 4 MP (2560 x 1440); Detail channel: 4 MP (2560 x 1440)
Focal Length	Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm
Optical Zoom	Detail channel: 25x
Digital Zoom	Detail channel: 16x
Pan/Tilt Range	Overview: Pan 0°, Tilt +12° to +24°; Detail: Pan 0° to 360° endless, Tilt -15° to +90°
Illumination Distance	Overview: 30 m (IR/warm light); Detail: 100 m (IR), 50 m (warm light)
Min. Illumination	Overview: 0.001 lux@F1.0; Detail: 0.005 lux@F1.6; 0 lux with illuminator on
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG
Wide Dynamic Range (WDR)	Overview channel: DWDR; Detail channel: 120 dB
Active Deterrence	Red-blue light warning and sound alarm
Built-in Audio	Yes, built-in dual mic and speaker
Network Port	1 x RJ-45 (10/100 Base-T)
Storage Support	Micro SD card (up to 512 GB); FTP/SFTP; NAS
Alarm I/O	2 inputs / 1 output
Power Supply	12 VDC (± 10%), 3 A; PoE+ (802.3at)
Power Consumption	Basic: 14 W; Max: 25 W
Protection Rating	IP66, TVS 6000 V lightning surge protection
Operating Temperature	-40 °C to +65 °C
Casing Material	ADC12

What is the resolution and zoom capability of this camera?

The camera features dual 4 MP sensors (2560 x 1440 resolution) and provides 25x optical zoom on its detail channel with a 5 mm–125 mm focal length.

What active deterrence capabilities are included?

It features active deterrence equipped with red-and-blue flashing light warnings and audible siren alarms with 11 built-in sounds and support for custom audio imports.

What local storage options does the camera support?

The camera accommodates Micro SD cards up to 512 GB, as well as network storage via NAS and FTP/SFTP.
