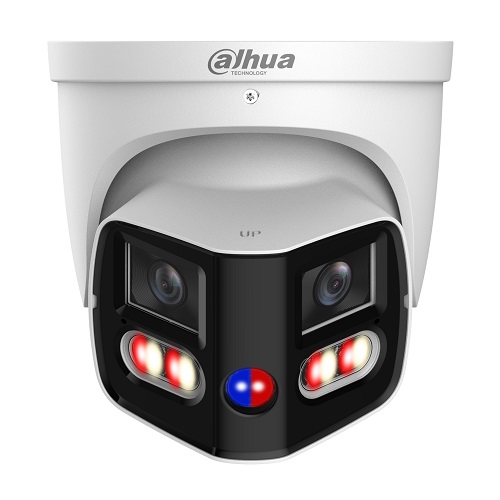

12MP Panoramic IP Network Camera PDW31259-A180-AS-PV (2.8mm, 180°, PoE+, IP67)
Price: 311.90 €
| Products ID: | 178223 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6937552430761 |
Delivery options to:
Choose countryThe PDW31259-A180-AS-PV is a high-resolution 12MP panoramic network IP camera featuring a 2.8mm fixed-focal lens designed for comprehensive 180° horizontal area surveillance.
Key Features
- 12MP maximum resolution (5000 x 2500) for detailed panoramic coverage
- Ultra-wide 180° horizontal field of view
- Smart dual illuminators (IR and warm light) with up to 30 m range
- Built-in dual microphone and dual speaker (up to 110 dB at 10 cm)
- Active deterrence with red and blue light warning and custom sound alarms
- PoE+ (802.3at) and 12 V DC power supply support
- Local storage support via Micro SD card slot up to 512 GB
- Rugged metal casing with IP67 ingress protection
| Image Sensor | 1/2.5" CMOS |
|---|---|
| Max. Resolution | 5000 (H) x 2500 (V) / 12MP |
| Focal Length | 2.8 mm |
| Field of View | H: 180°; V: 78° |
| Max. Aperture | F1.0 |
| Min. Illumination | 0.0008 lux @ F1.0 (Color, 30 IRE); 0.0003 lux @ F1.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (IR) / Up to 30 m (Warm light) |
| Illuminator Number | 4 (Multi-core IR + warm light) |
| Wide Dynamic Range (WDR) | 120 dB |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in dual speaker (max. 110 dB at 10 cm) |
| Light Warning | Red and blue light warning |
| Sound Warning | 11 sound alarms, supports custom sound imports |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| Storage | Micro SD card (up to 512 GB) |
| Power Supply | 12 VDC (±30%) / PoE+ (802.3at) |
| Power Consumption | Basic: 4.9 W (12 VDC), 6.8 W (PoE); Max: 13.3 W (12 VDC), 16.1 W (PoE) |
| Protection | IP67 |
| Casing Material | Metal |
| Operating Temperature | -40 °C to +60 °C |
| Product Dimensions | 135.2 mm x Ø 122.0 mm |
| Net Weight | 0.99 kg |
What is the viewing angle of this camera?
The camera features a 2.8mm fixed-focal lens providing a wide 180° horizontal and 78° vertical field of view.
Does this camera include two-way audio hardware?
Yes, it has a built-in dual microphone and dual speaker capable of up to 110 dB sound level at 10 cm distance.
What power supply options are supported?
The camera can be powered using 12 V DC (±30%) or via network cable using PoE+ (802.3at).
