Unitree R1 Rational Guardian battery, 6 000 mAh, white
SOLDOUT!

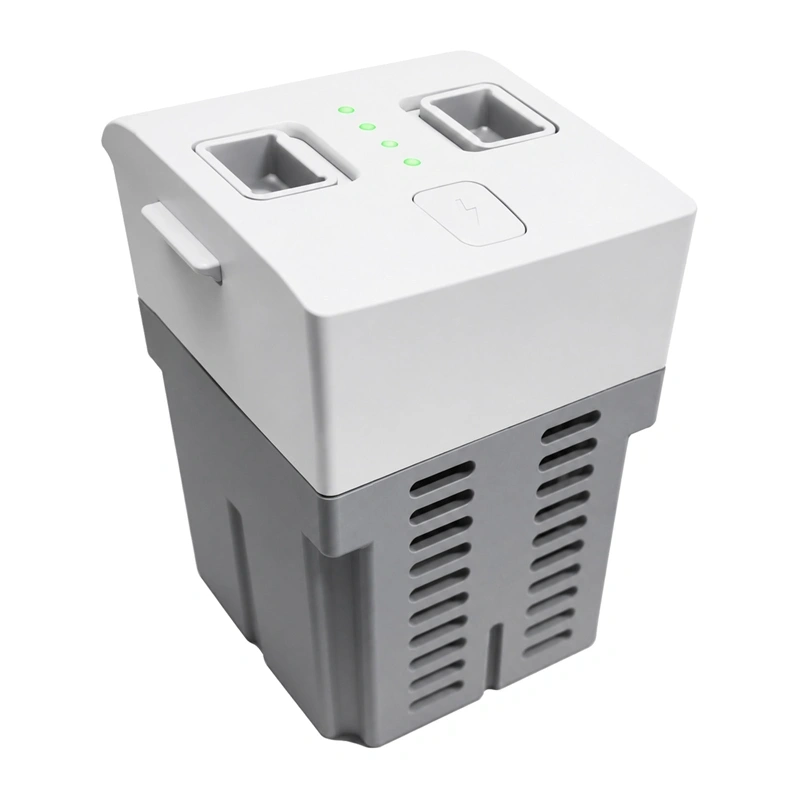

The Unitree R1 Rational Guardian is a white 6 000 mAh battery designed to power the Unitree R1 robot. It has a rated energy capacity of 194.4 Wh and measures 85 × 83 × 146.5 mm.
Charge monitoring and protection
A battery level display lets you check the remaining charge. The proprietary BMS battery management system controls charging and discharging processes.
Protection features include charge balancing protection, overcharge, over-discharge and short-circuit protection, alongside a load detection system. Storage mode provides self-discharge protection. The nominal voltage is 32.4 V, with a charging limit voltage of 37.8 V.
| Manufacturer | Unitree |
|---|---|
| Model | 081104 |
| Dimensions | 85 mm × 83 mm × 146.5 mm |
| Nominal voltage | 32.4 V |
| Charging limit voltage | 37.8 V |
| Rated capacity | 6 000 mAh, 194.4 Wh |
| Battery management system | Proprietary BMS |
| Features | Battery level display, self-discharge protection in storage mode, charge balancing protection, overcharge protection, over-discharge protection, short-circuit protection, load detection system |
| Compatibility | Unitree R1 |
| Colour | White |
| EAN | 5907085529981 |
|---|
Which robot is this battery designed for?
This battery is designed for the Unitree R1 robot.
Can I check the battery's charge level?
Yes, the battery has a charge level display.
