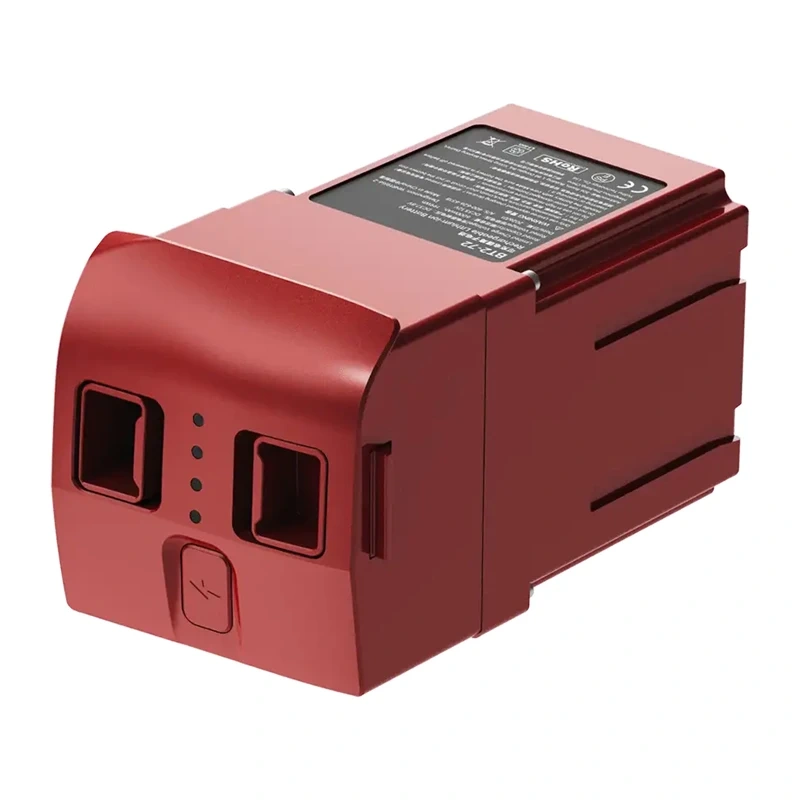

Unitree R1 Crismon Hero battery, 6000 mAh, red
SOLDOUT!
The Unitree R1 Crismon Hero is a red 6000 mAh battery for powering the Unitree R1 robot. It has a nominal voltage of 32.4 V and measures 85 × 83 × 146.5 mm.

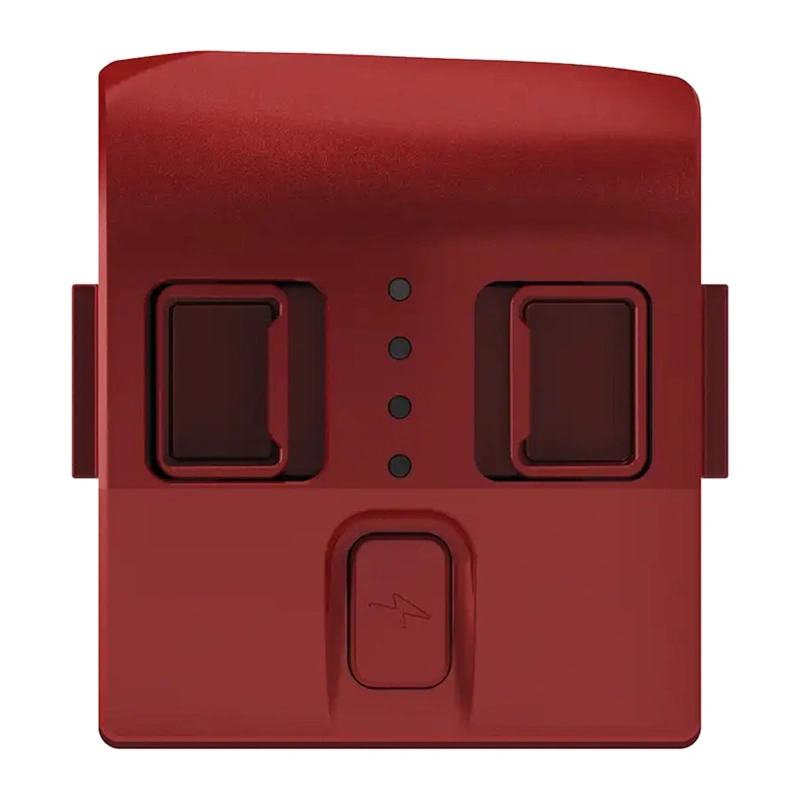

Charge monitoring and protection
A built-in charge level display lets you check the battery's current status. The proprietary BMS battery management system controls charging and discharging processes.
- Electrical protection: protection against overcharging, over-discharging and short circuits.
- Charge management: charge balancing protection and a load detection system.
- Storage mode: a self-discharge protection function for periods when the battery is not in use.
The battery has an energy capacity of 194.4 Wh and a charging limit voltage of 37.8 V.
| Manufacturer | Unitree |
|---|---|
| Dimensions | 85 mm × 83 mm × 146.5 mm |
| Nominal voltage | 32.4 V |
| Charging limit voltage | 37.8 V |
| Rated capacity | 6 000 mAh, 194.4 Wh |
| Battery management system | Proprietary BMS |
| Features | Battery level display, self-discharge protection in storage mode, charge balancing protection, overcharge protection, over-discharge protection, short-circuit protection, load detection system |
| Compatibility | Unitree R1 |
| Colour | Red |
| EAN | 5905156111202 |
|---|
Which robot is this battery designed for?
This battery is designed for the Unitree R1 robot.
Can I check the battery's charge level?
Yes, the battery has a built-in charge level display.
