Metabo KGS 305 M Mitre Saw with Extra Saw Blade, 305 mm, 1600 W
Metabo
| Products ID: | 185971 |
|---|---|
| Manufactured by: | Metabo |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4061792235328 |
Delivery options to:
Choose country

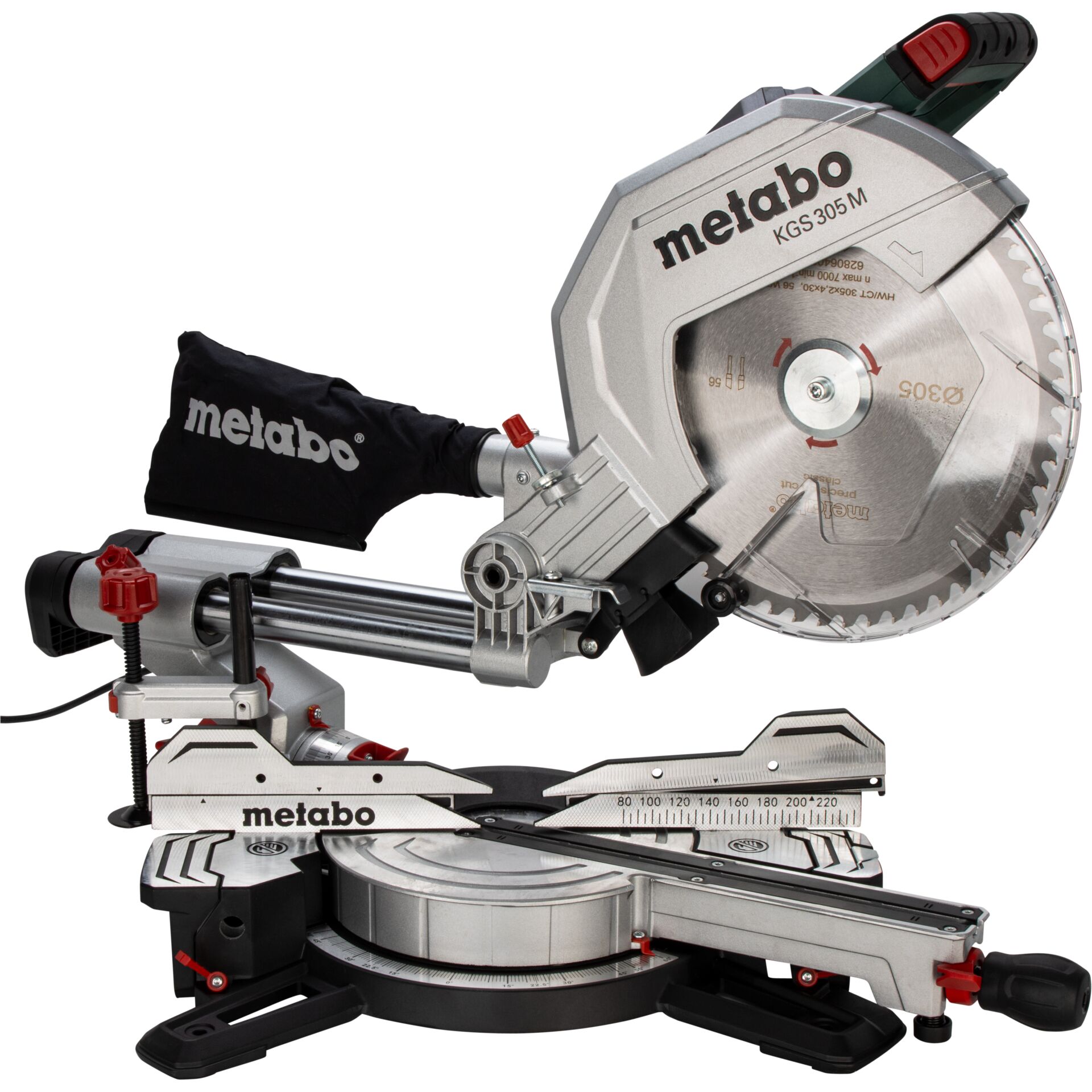

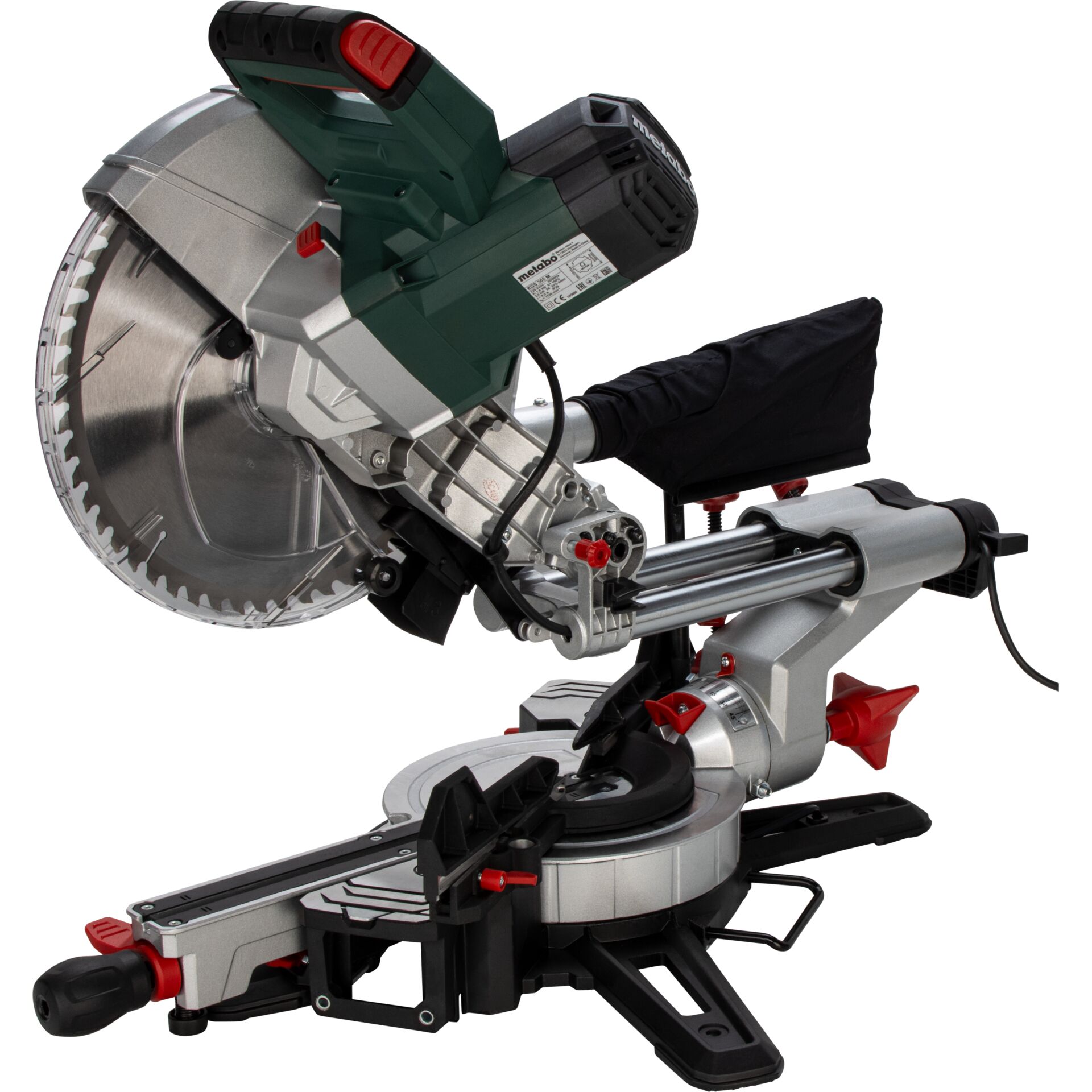

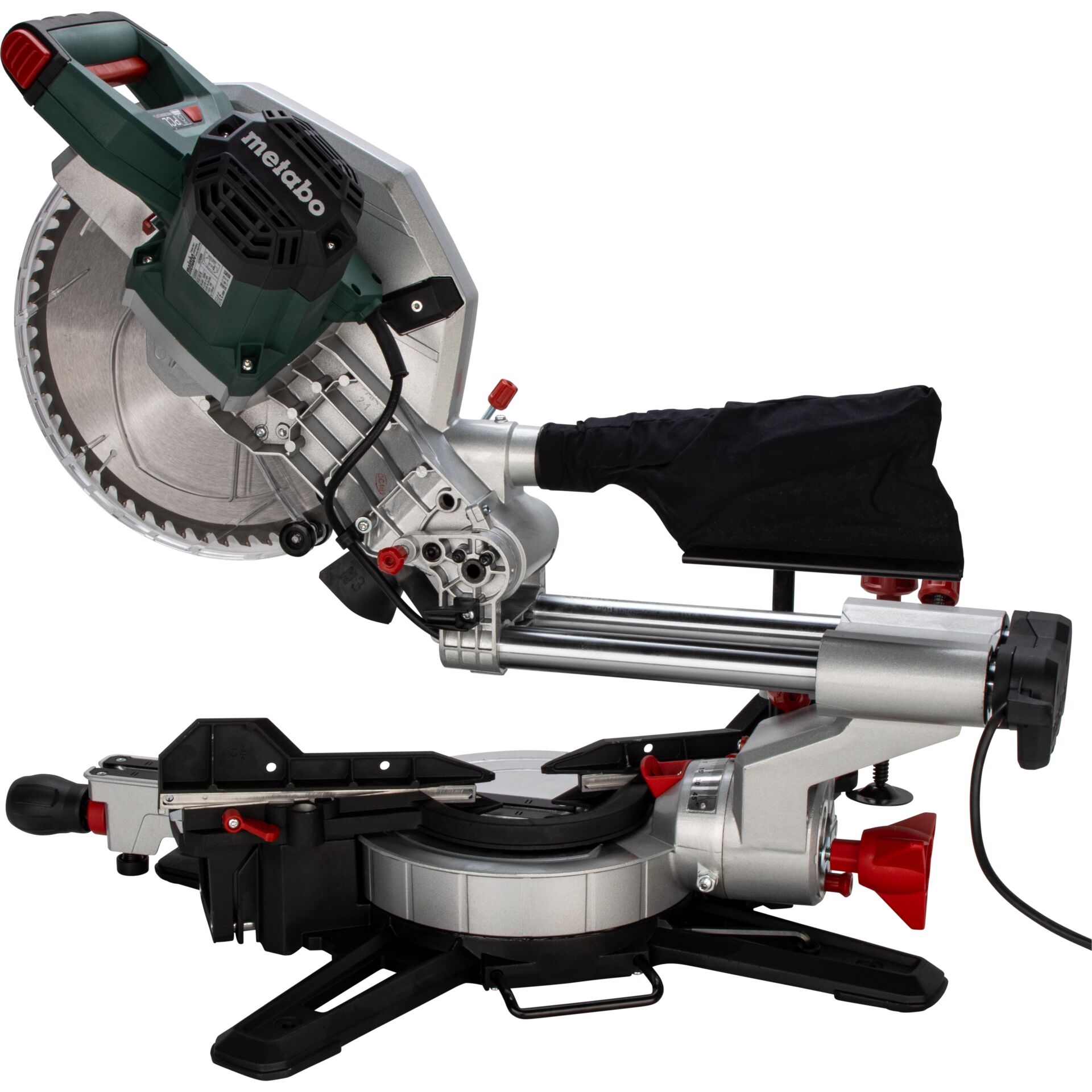

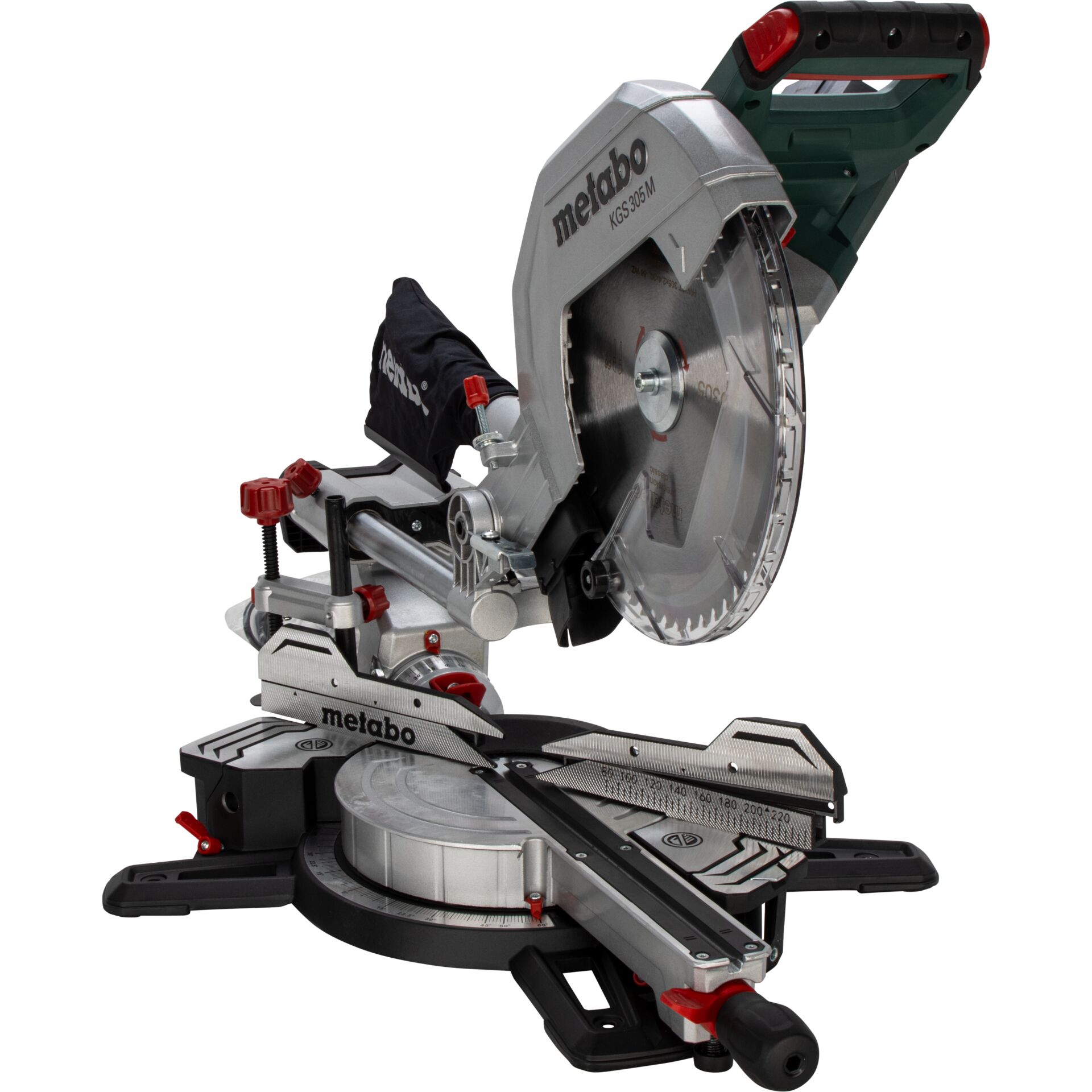

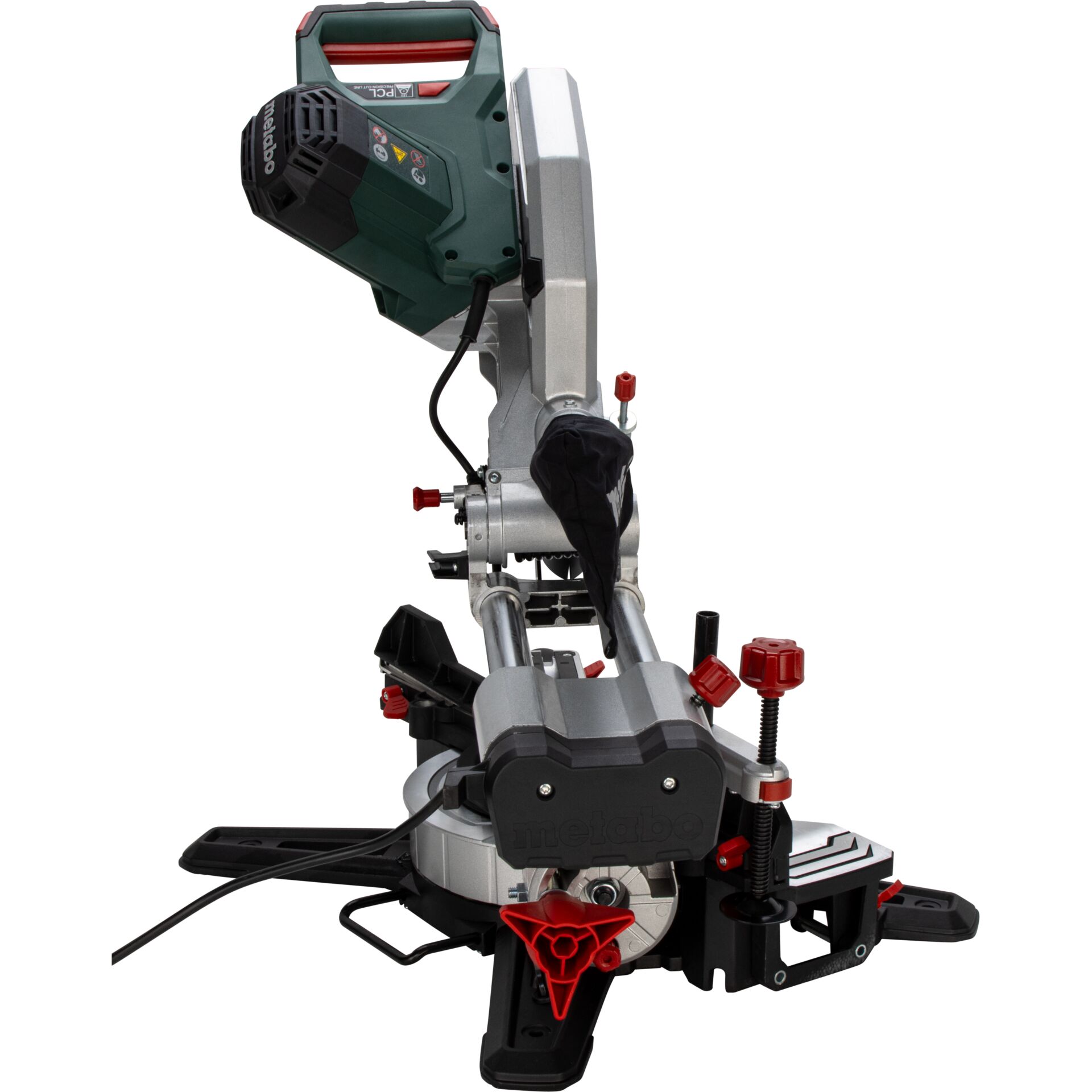

The Metabo KGS 305 M is a high-capacity crosscut and mitre saw from the mobile M-class, engineered for precise and reliable cutting performance.
Accurate Alignment and Versatile Angles
The integrated Precision Cut Line feature uses an LED to project an exact shadow cut line onto the workpiece. Common angle settings can be quickly locked in on the rotary table, and the saw blade tilts up to 47 degrees to both the left and the right.
Durable Build and Convenient Workpiece Support
Built with a robust die-cast aluminium housing, this saw features soft start and integrated chip extraction. Extendable table extensions support long workpieces, while a quick-clamping device firmly secures material from the top or front.
| Operating mode | Mains (230 V) |
|---|---|
| Rated input power (S1 100%) | 1600 W |
| Rated input power (S6 20%) | 2000 W |
| Saw blade diameter | 305 mm |
| Saw blade bore diameter | 30 mm |
| Number of teeth | 56 |
| No-load speed | 3700 /min |
| Speed at nominal load | 3000 /min |
| Cutting speed | 59 m/s |
| Max. cutting width 90° / 45° | 305 / 215 mm |
| Max. cutting depth 90° / 45° | 110 / 67 mm |
| Cutting capacity 90° / 90° | 305 x 110 mm |
| Cutting capacity 45° / 45° | 215 x 67 mm |
| Turntable setting left / right | 50 / 60° |
| Saw blade tilt left / right | 47 / 47° |
| Support surface | 345 x 770 mm |
| Dimensions | 780 x 500 x 657 mm |
| Material | Die-cast aluminium |
| Cable length | 2 m |
| Weight | 18.6 kg |
| Sound pressure level | 87 dB(A) |
| Sound power level (LwA) | 100 dB(A) |
| Measurement uncertainty K | 3 dB(A) |
What is included in the package?
The package includes the Metabo KGS 305 M crosscut saw, a second carbide saw blade, 2 integrated table extensions, a crosscut fence, a material clamp, a blade change tool, cable rewind, and a chip collection bag.
What are the maximum cutting capacities at 90 degrees?
At 90°, the maximum cutting width is 305 mm and the maximum cutting depth is 110 mm (305 x 110 mm total cutting capacity).
