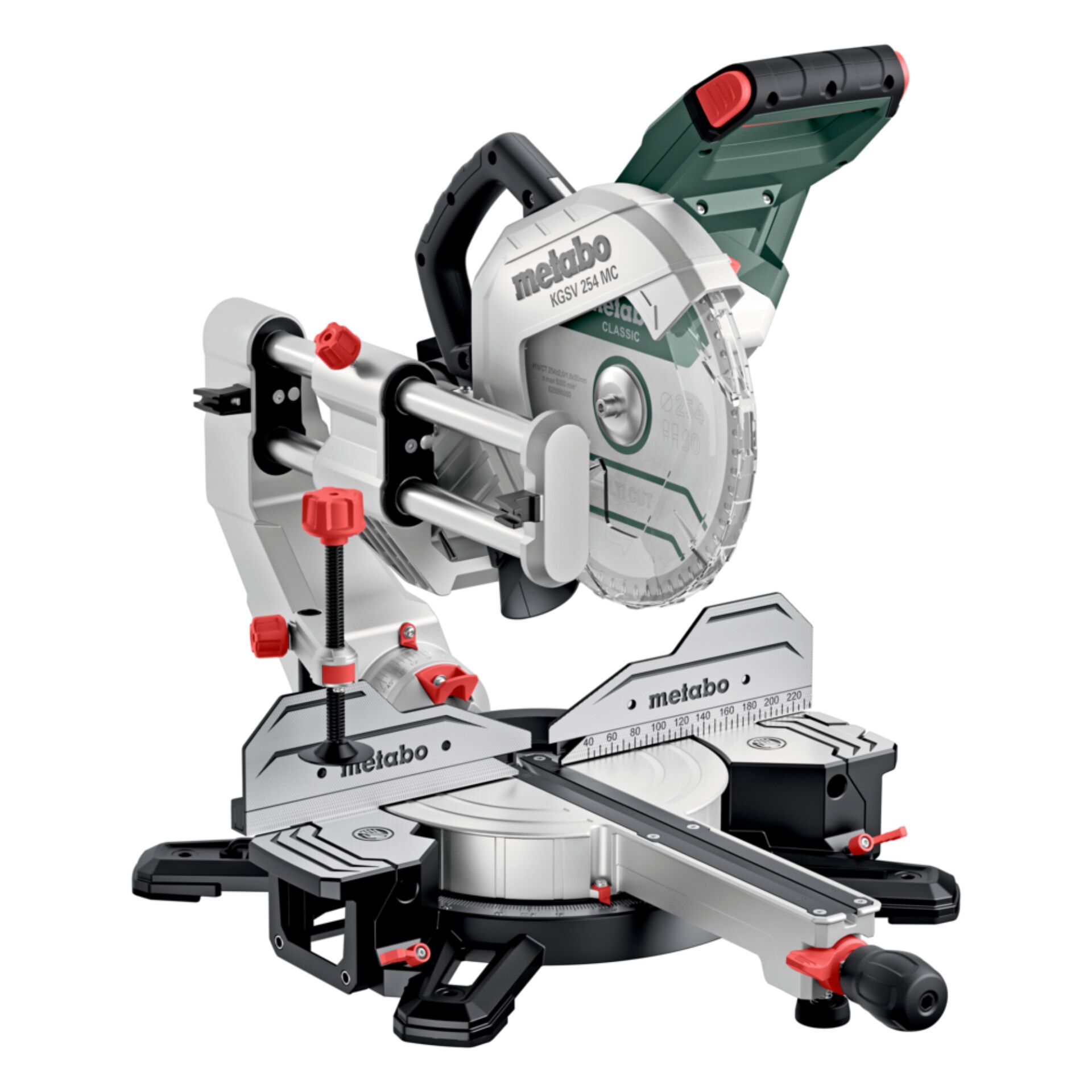

Metabo KGSV 254 MC Sliding Mitre Saw

Metabo KGSV 254 MC Sliding Mitre Saw — image 3

Metabo KGSV 254 MC Sliding Mitre Saw — image 4

Metabo KGSV 254 MC Sliding Mitre Saw — image 5

Price: 421.30 €

Products ID:	183907
Manufactured by:	Metabo
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4061792268272

Delivery options to:

Choose country

The Metabo KGSV 254 MC mitre saw with sliding function delivers precise cutting across wood, aluminium, and plastics. Its integrated LED projects a clear shadow line onto the workpiece without requiring adjustment, while the compact slide mechanism eliminates the need for clearance behind the tool.

Key Features

Compact sliding mechanism saves space behind the machine
Integrated LED shadow line for accurate cutting lines

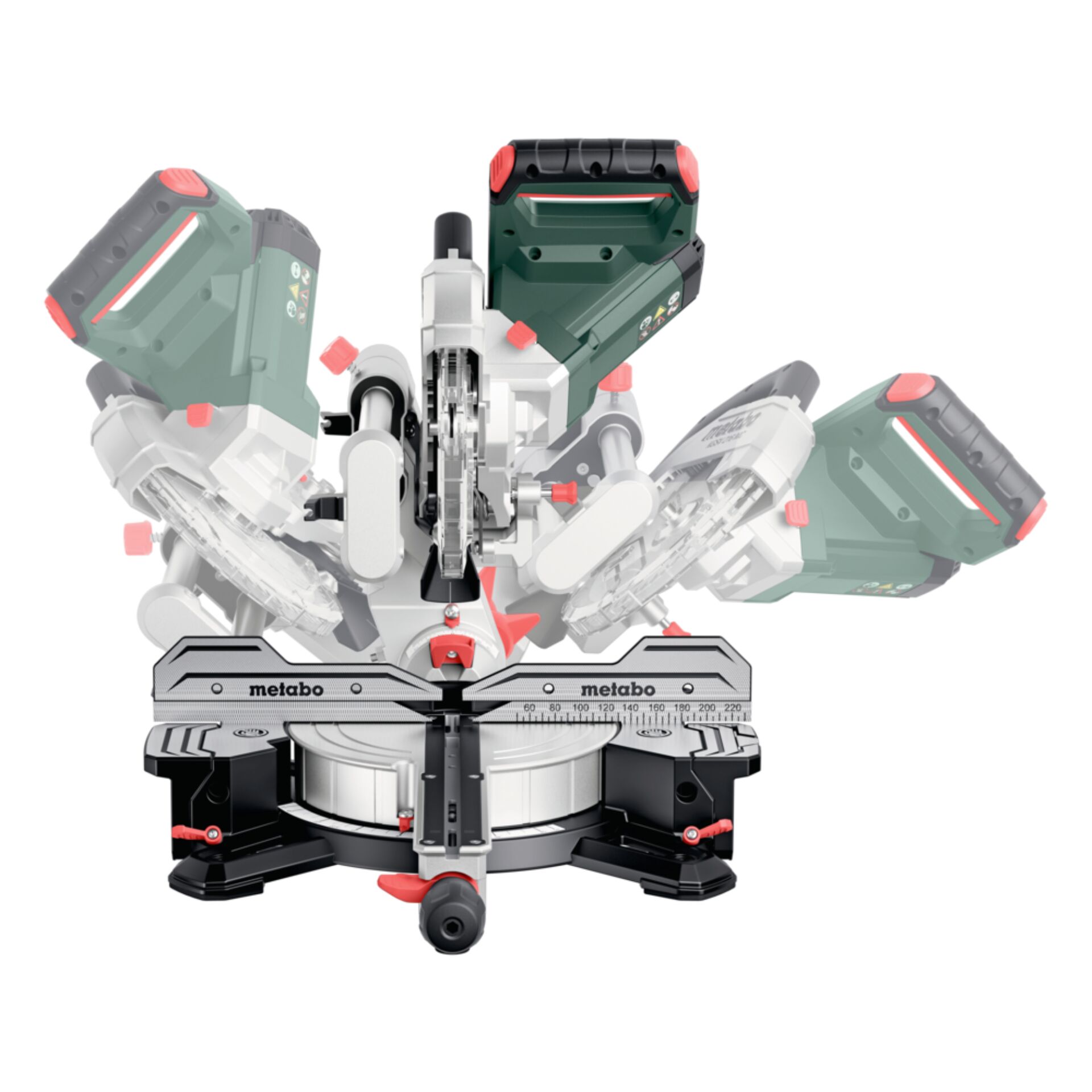

Rotating turntable and saw head tilting to both sides for compound cuts
Variable speed control tailored to wood, aluminium, and plastics
Electronic soft start and fast-acting blade brake

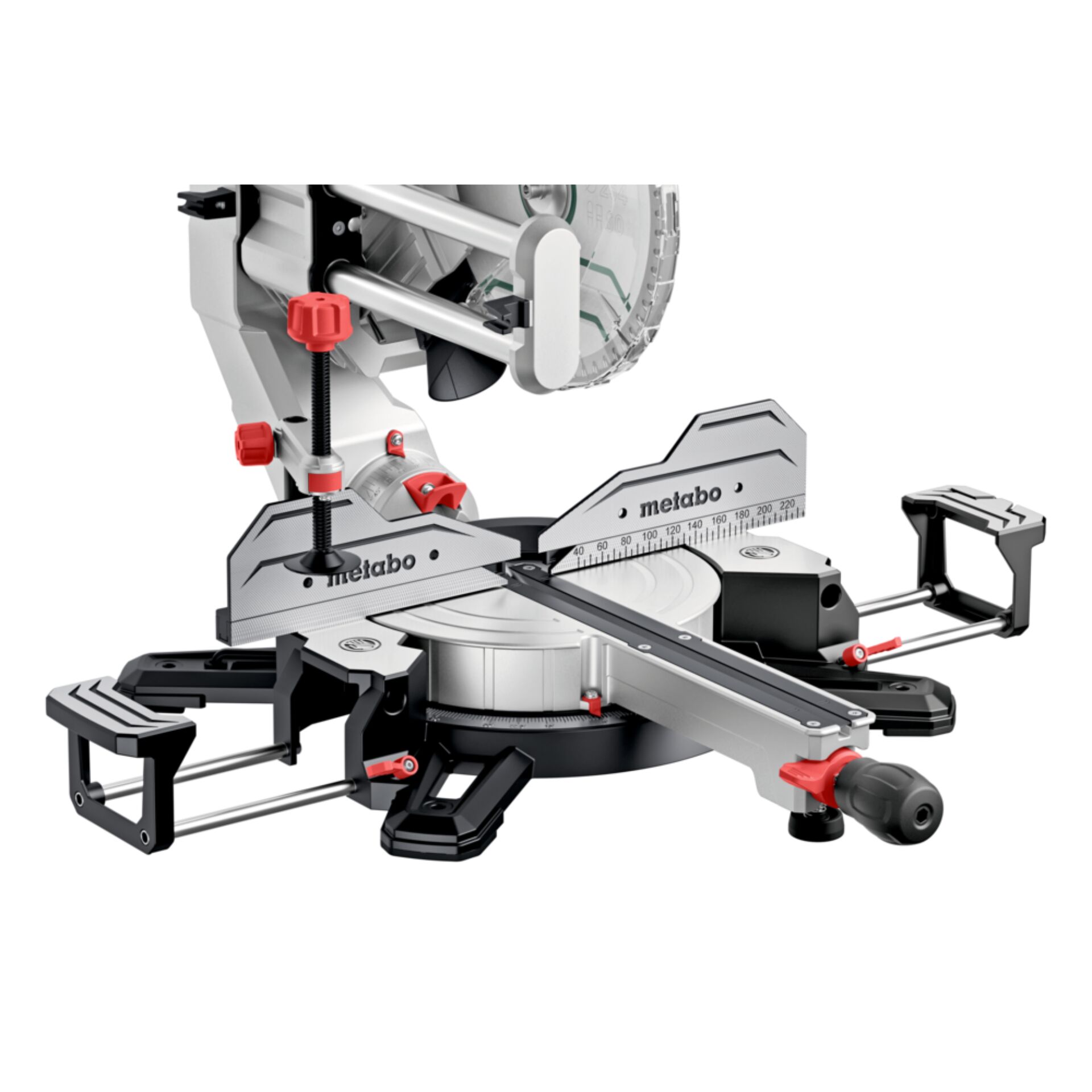

Extendable table extensions and quick-release clamp for workpiece stability

Operating Mode	Mains
Saw Blade Diameter	254 mm
Saw Blade Drilling Diameter	30 mm
No-Load Speed	1900 - 4500 min-1
Max Cutting Width 90° / 45°	305 / 215 mm
Max Cutting Depth 90° / 45°	92 / 48 mm
Cutting Capacity 90°/90°	305 x 92 mm
Cutting Capacity 45°/45°	215 x 48 mm
Turntable Setting Left / Right	50° / 50°
Saw Blade Tilt Left / Right	47° / 47°
Pulling Function	Yes
Laser Guidance	No
Support Surface	34.5 x 76.0 cm
Dimensions	72.5 x 49.0 x 59.5 cm
Cable Length	2 m
Weight	18.4 kg
Colour	Green / Silver

What comes in the box?

The package includes the mitre saw with sliding function, a 254 mm saw blade, a quick-release clamp, extendable table extensions, and a chip collection funnel.

Does this mitre saw feature a guide laser?

No, this model uses an LED shadow line instead of a laser to indicate the cutting line.

What is the maximum cutting capacity at 90°/90°?

At 90°/90°, the saw provides a maximum cutting capacity of 305 x 92 mm.
