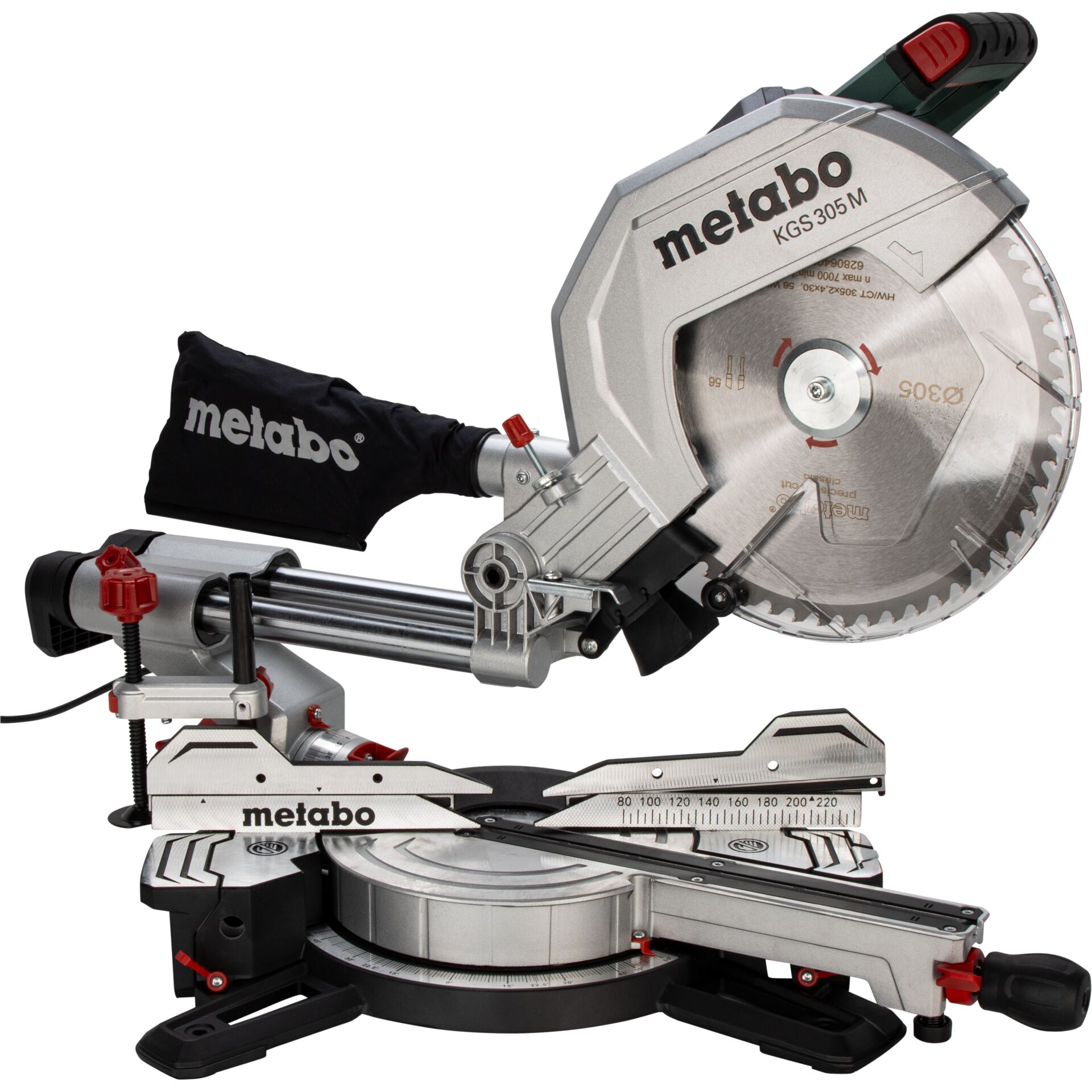

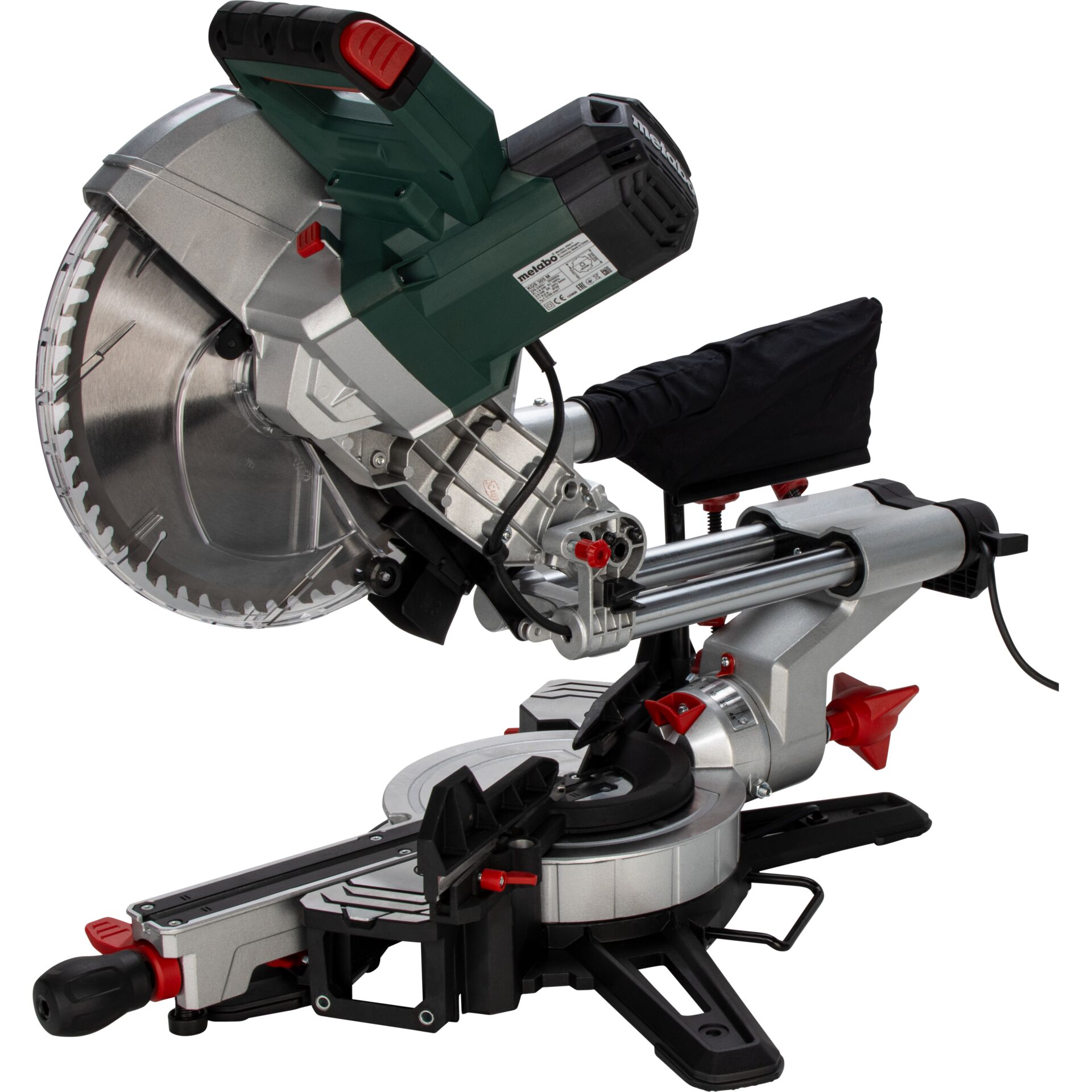

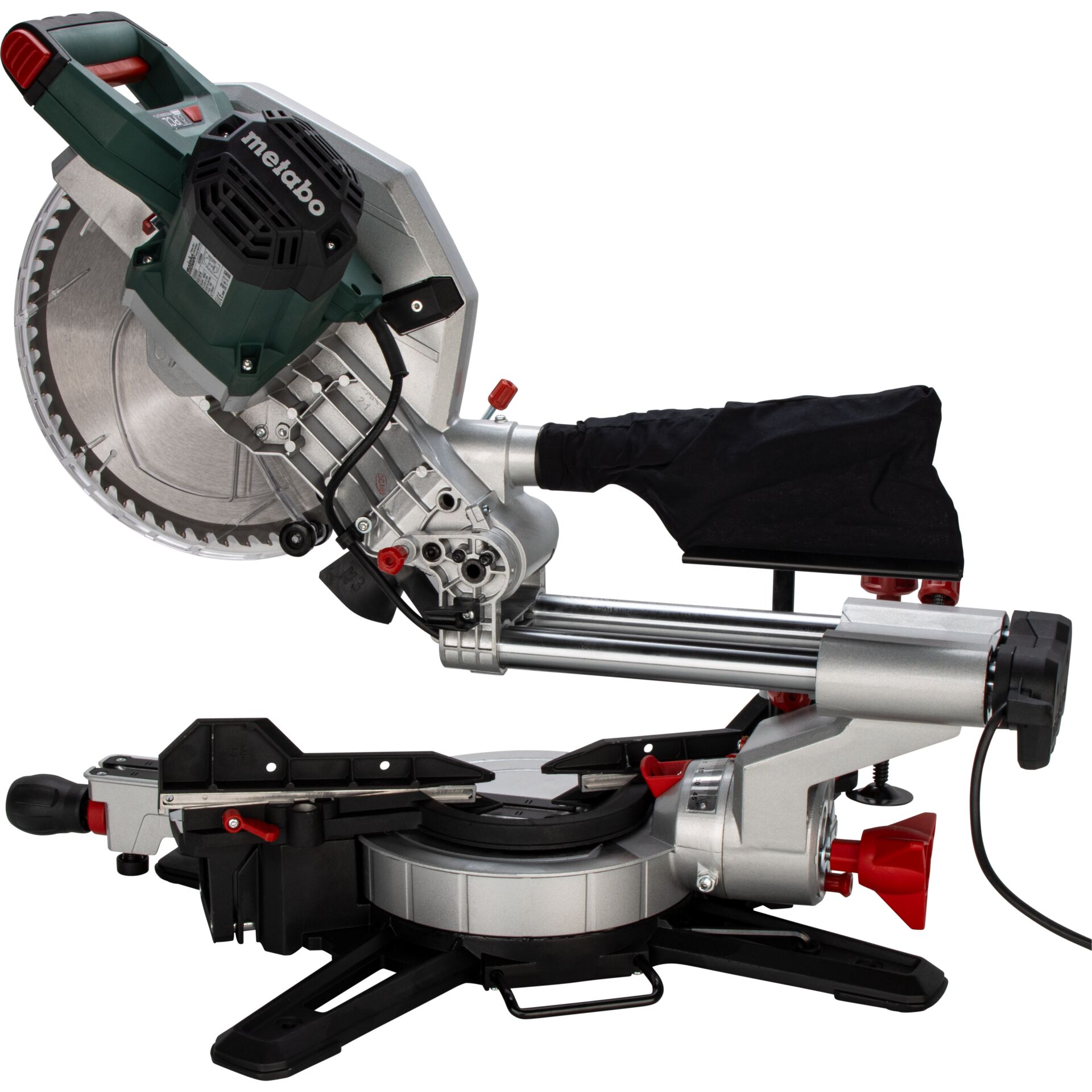

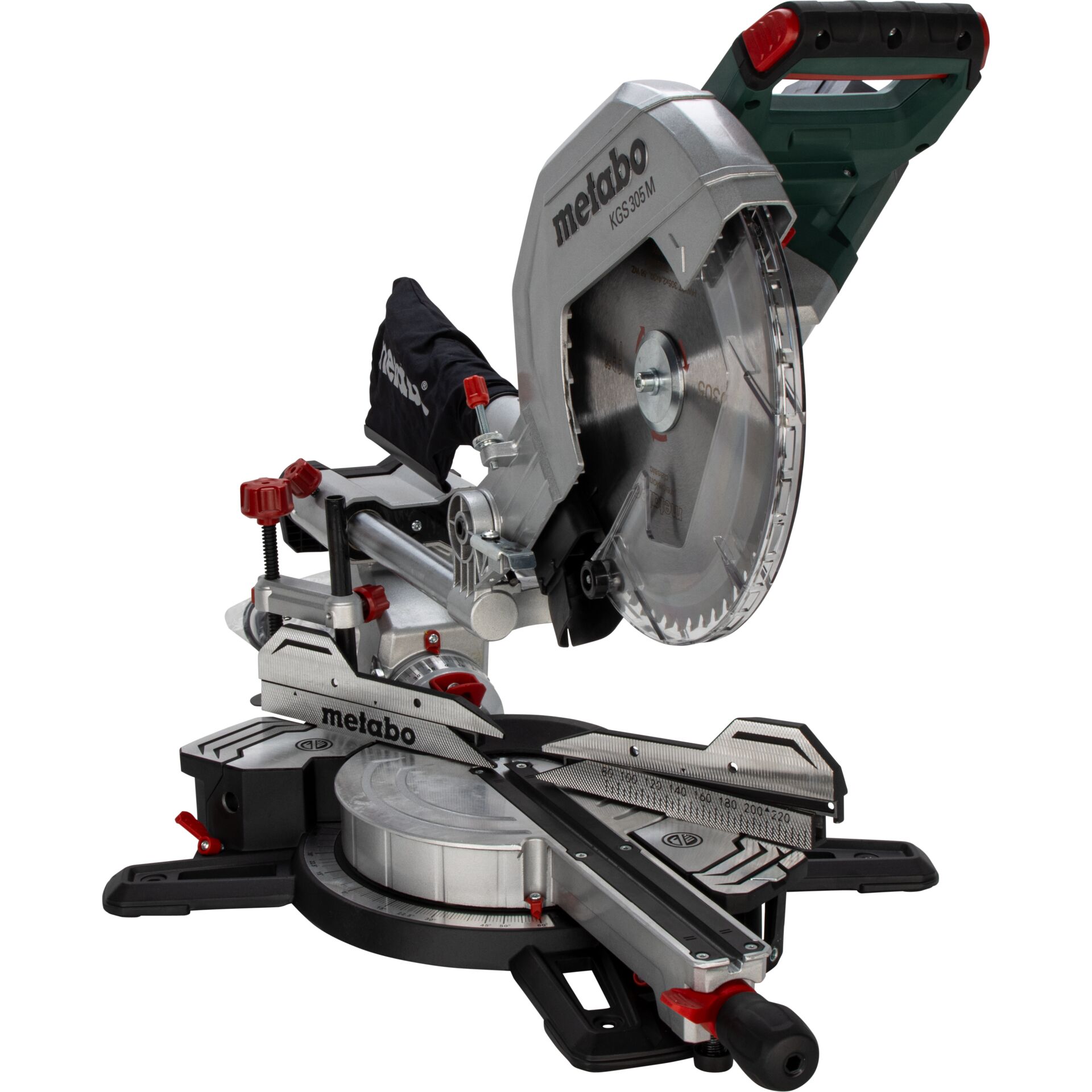

Metabo Chop and Mitre Saw with Stand Set KGS 305 M + KSU 251, 2000 W, 305 mm
Metabo
| Products ID: | 185972 |
|---|---|
| Manufactured by: | Metabo |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4061792226104 |
Delivery options to:
Choose country
The Metabo KGS 305 M chop and mitre saw set with KSU 251 machine stand provides reliable cutting capacity and portable stability for workshop and job-site tasks.
High Cutting Power and Exact Guidance
Driven by a motor with soft start delivering up to 2000 W input power (S6 20%), the saw uses a 305 mm blade to manage demanding cuts. The Precision Cut Line system utilizes an integrated LED to project an exact blade shadow onto the workpiece without requiring calibration.
Flexible Mitre and Bevel Angles
The turntable features positive stops for common angles, rotating up to 50° to the left and 60° to the right. The saw head tilts up to 47° on both sides, allowing efficient dual-bevel compound cuts.
Durable Build and Supported Work Area

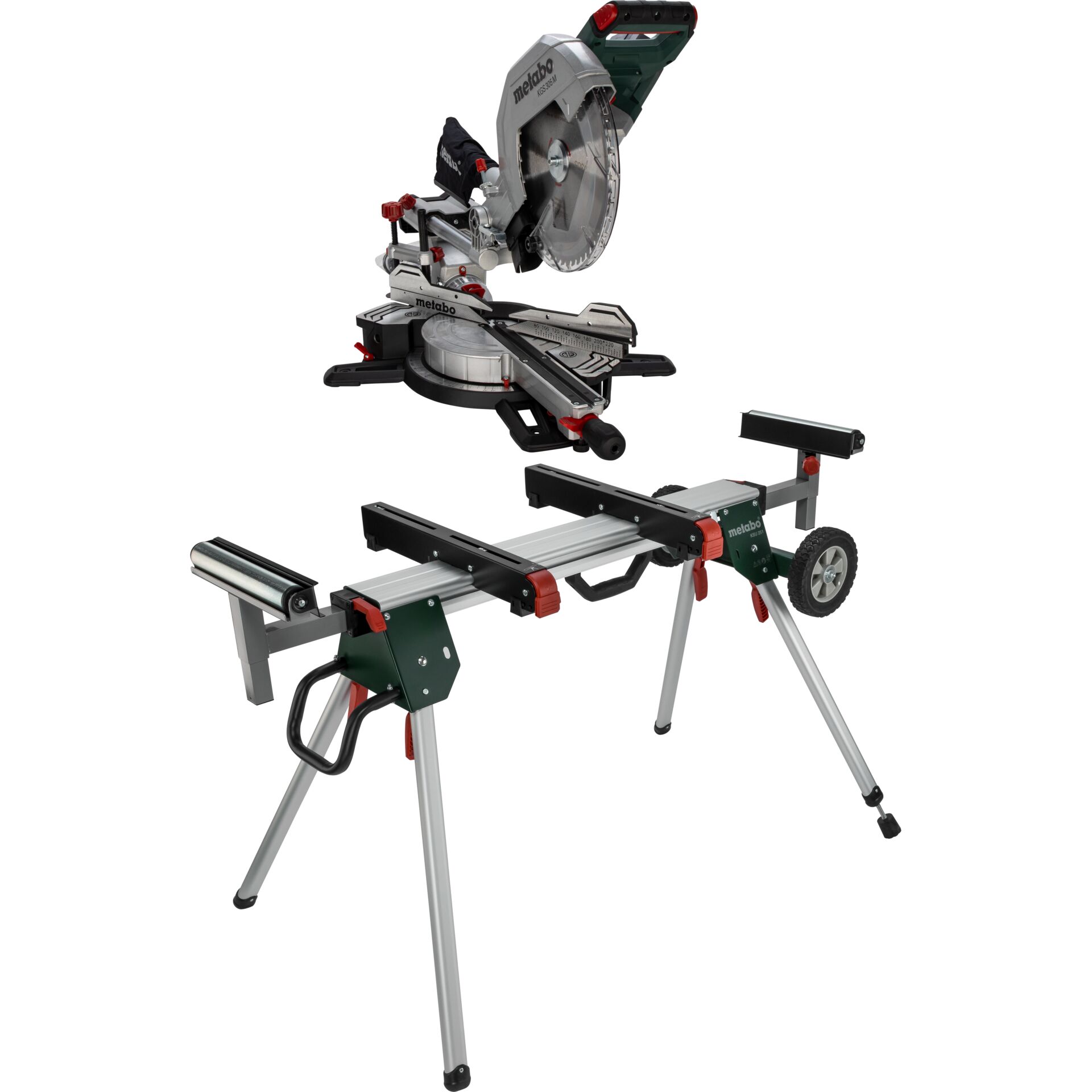

Constructed from die-cast aluminium, the saw features a smooth pull function, depth stop, integrated chip extraction, and an ergonomic handle. The accompanying KSU 251 stand offers dedicated support for stable mounting and comfortable material handling.
| Tool type | Chop and mitre saw with stand |
|---|---|
| Rated input power S1 100% | 1600 W |
| Rated input power S6 20% | 2000 W |
| Supply voltage | 230 V |
| Saw blade diameter | 305 mm |
| Saw blade drilling diameter | 30 mm |
| Number of teeth | 56 |
| No-load speed | 0 - 3700 /min |
| Speed at nominal load | 3000 /min |
| Cutting speed | 59 m/s |
| Max. cutting width 90° / 45° | 305 / 215 mm |
| Max. cutting depth 90° / 45° | 110 / 67 mm |
| Cutting capacity 90°/90° | 305 x 110 mm |
| Max. cutting capacity 45°/45° | 215 x 67 mm |
| Turntable setting left / right | 50 / 60° |
| Saw blade tilt left / right | 47 / 47° |
| Support surface | 345 x 770 mm |
| Dimensions | 780 x 500 x 657 mm |
| Material | Aluminium |
| Weight | 18.6 kg |
| Cable length | 2 m |
| Sound pressure level | 87 dB(A) |
| Sound power level (LwA) | 100 dB(A) |
| Measurement uncertainty K | 3 dB(A) |
What is included in the package?
The set includes the Metabo KGS 305 M crosscut saw, KSU 251 machine stand, 2 integrated table extensions, crosscut fence, material clamp, tool for saw blade changes, cable rewind, and a chip collection bag.
What are the maximum cutting dimensions at 90 degrees?
At 90°/90°, the saw provides a maximum cutting capacity of 305 mm in width and 110 mm in depth.
How does the cut line indicator work?
The saw uses the Precision Cut Line system, where an LED projects the exact shadow of the blade directly onto the cut line.
