Holzmann KAP305JL Mitre Saw with Pull Function, 1800W, 305 mm
Price: 332.40 €
| Products ID: | 183511 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120039900742 |
Delivery options to:
Choose country
The Holzmann KAP305JL is a mains-powered pull, chop, and mitre saw engineered for precise angled and straight cuts in woodworking and workshop applications.
Key Features
- Belt drive mechanism for low-noise operation and reduced mechanical wear

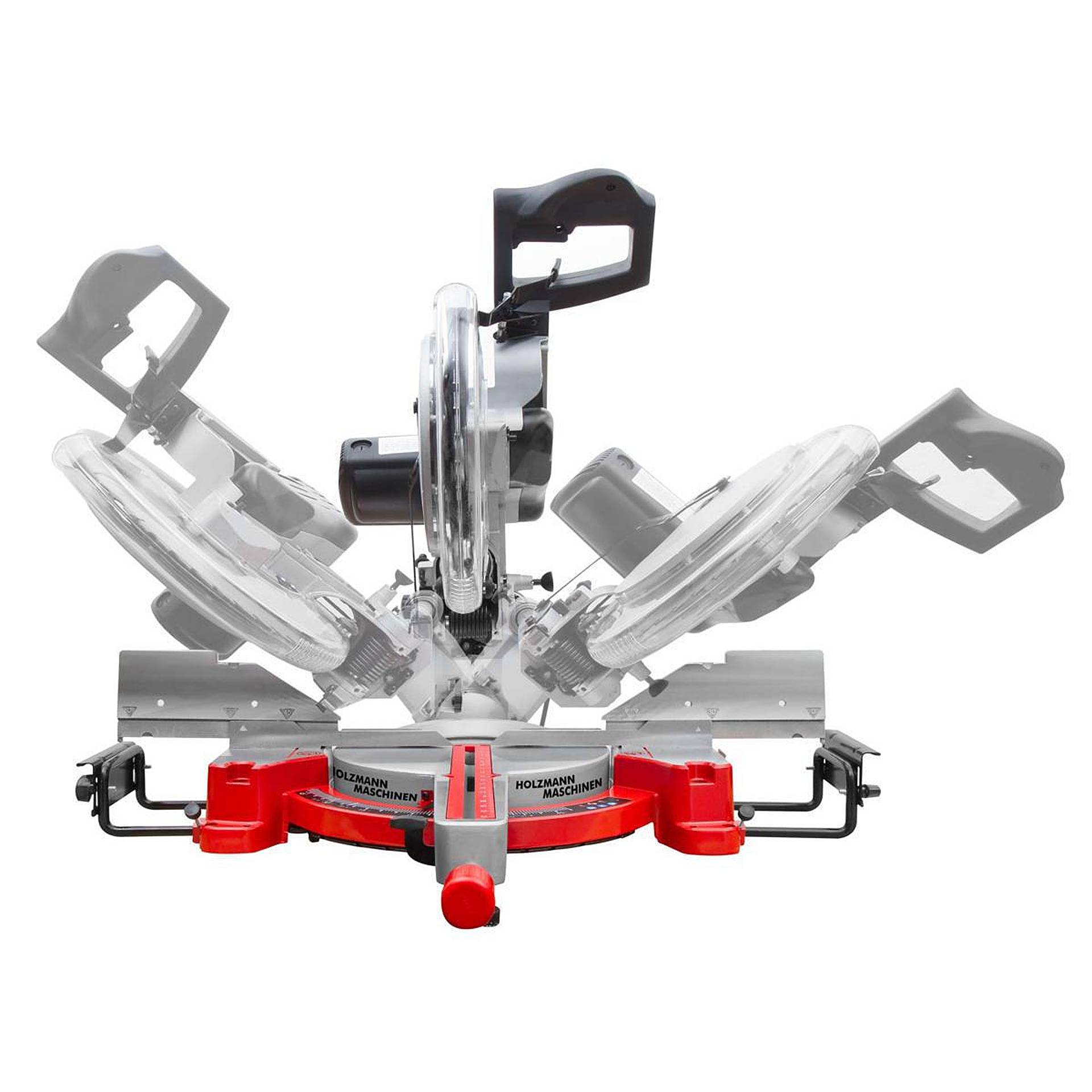

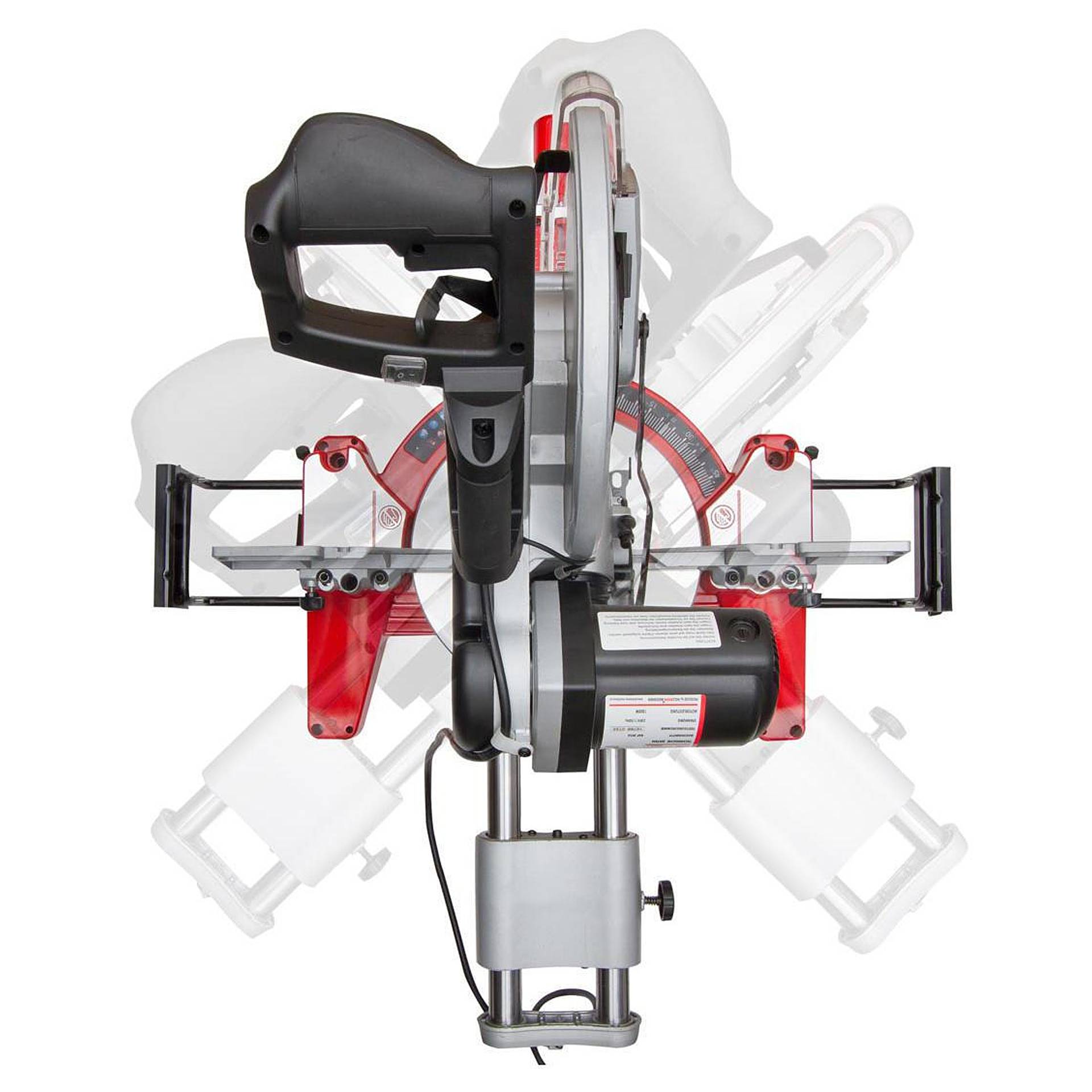

- Saw unit tilts left and right (-45°/+45°) and rotates left and right (-45°/+45°)
- Narrow laser line for precise cutting line alignment

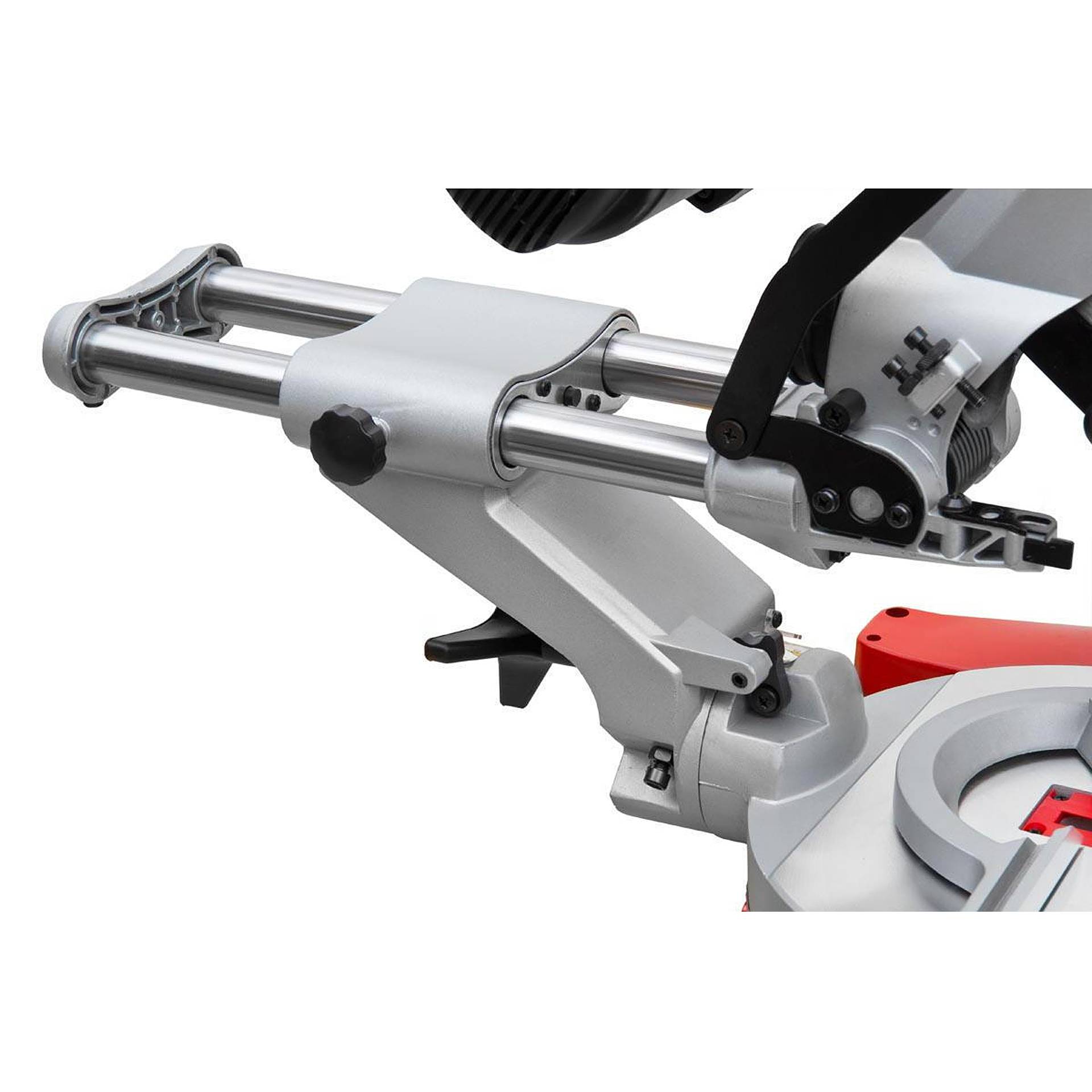

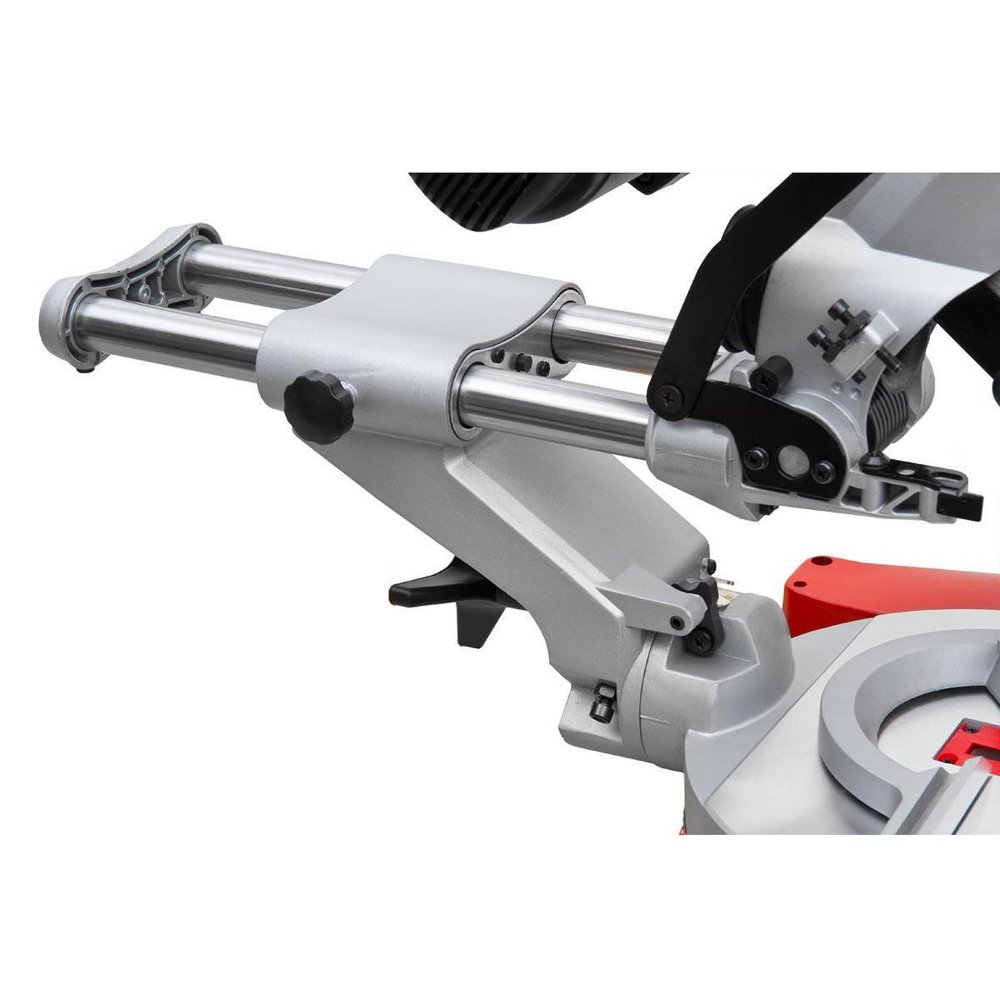

- Smooth-running precision-bearing mounted double guide train system
- Extendable back stop for workpiece support
- Die-cast aluminium base frame for solid stability
| Operating mode | Mains |
|---|---|
| Voltage | 230 V |
| Motor power (S1) | 1800 W |
| Power output | 1600 W |
| No-load speed | 4200 min-1 |
| Saw blade diameter | 305 mm |
| Max. cutting height 90° | 115 mm |
| Max. cutting height 45° | 85 mm |
| Max. cutting length 90° | 340 mm |
| Max. cutting length 45° | 240 mm |
| Laser guidance | Yes |
| Pulling function | Yes |
| Material | Metal / plastic |
| Colour | Silver / red |
| Weight | 22.7 kg |
What is the maximum cutting capacity at 90 degrees?
At 90°, the saw achieves a maximum cutting height of 115 mm and a maximum cutting length of 340 mm.
What saw blade size does this model require?
This saw uses a 305 mm diameter saw blade.
Does the saw unit tilt and swivel in both directions?
Yes, the saw unit tilts left/right from -45° to +45° and rotates left/right from -45° to +45°.
