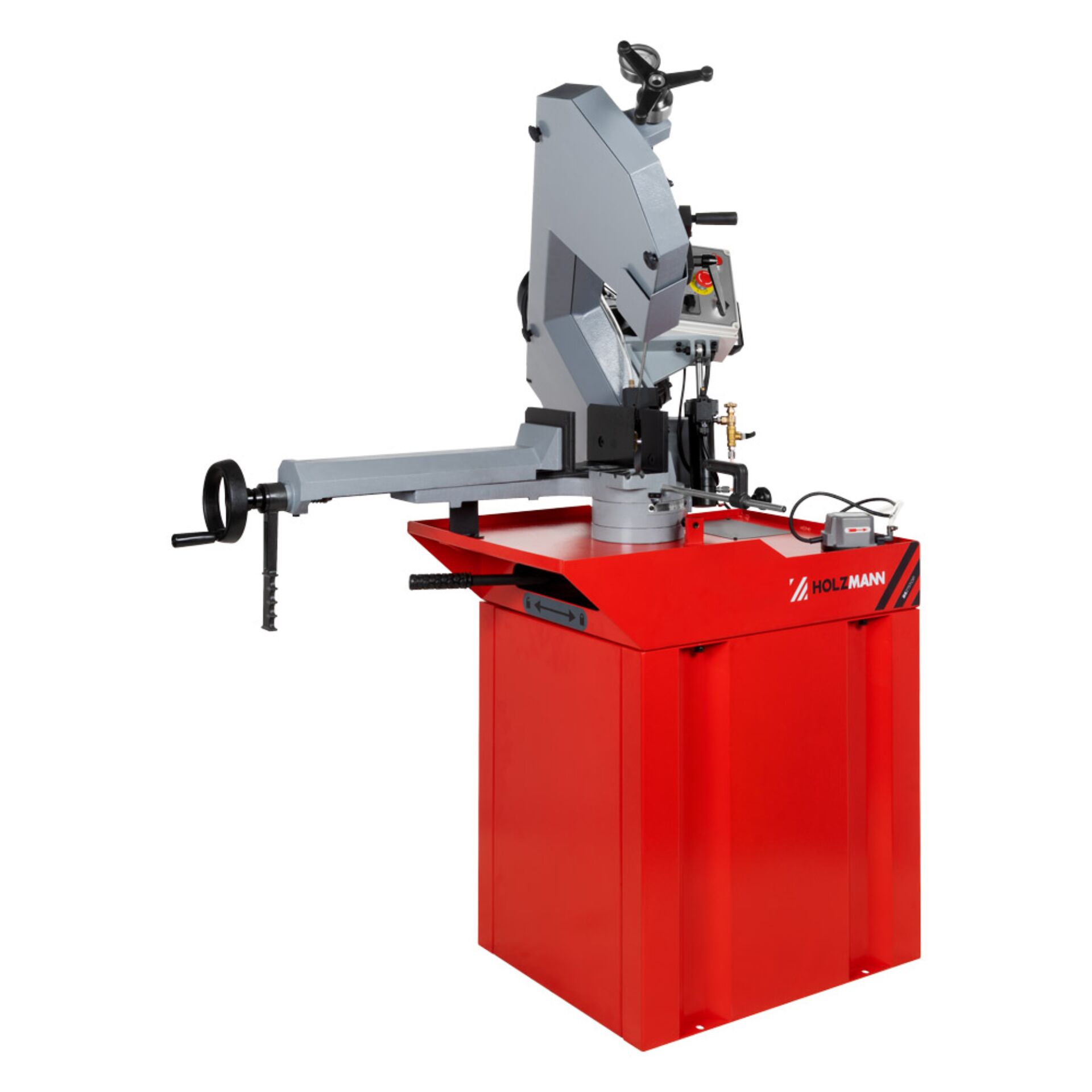

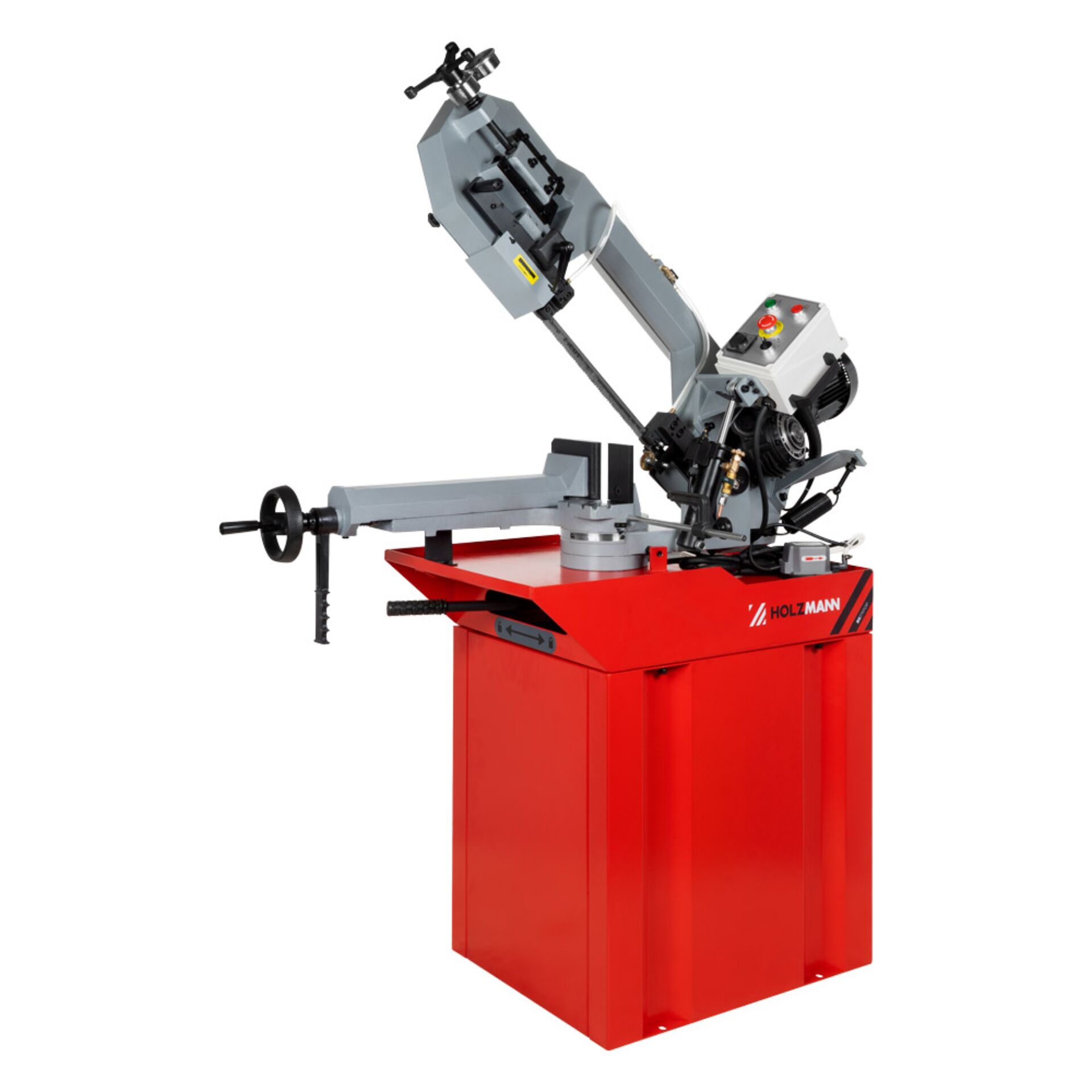

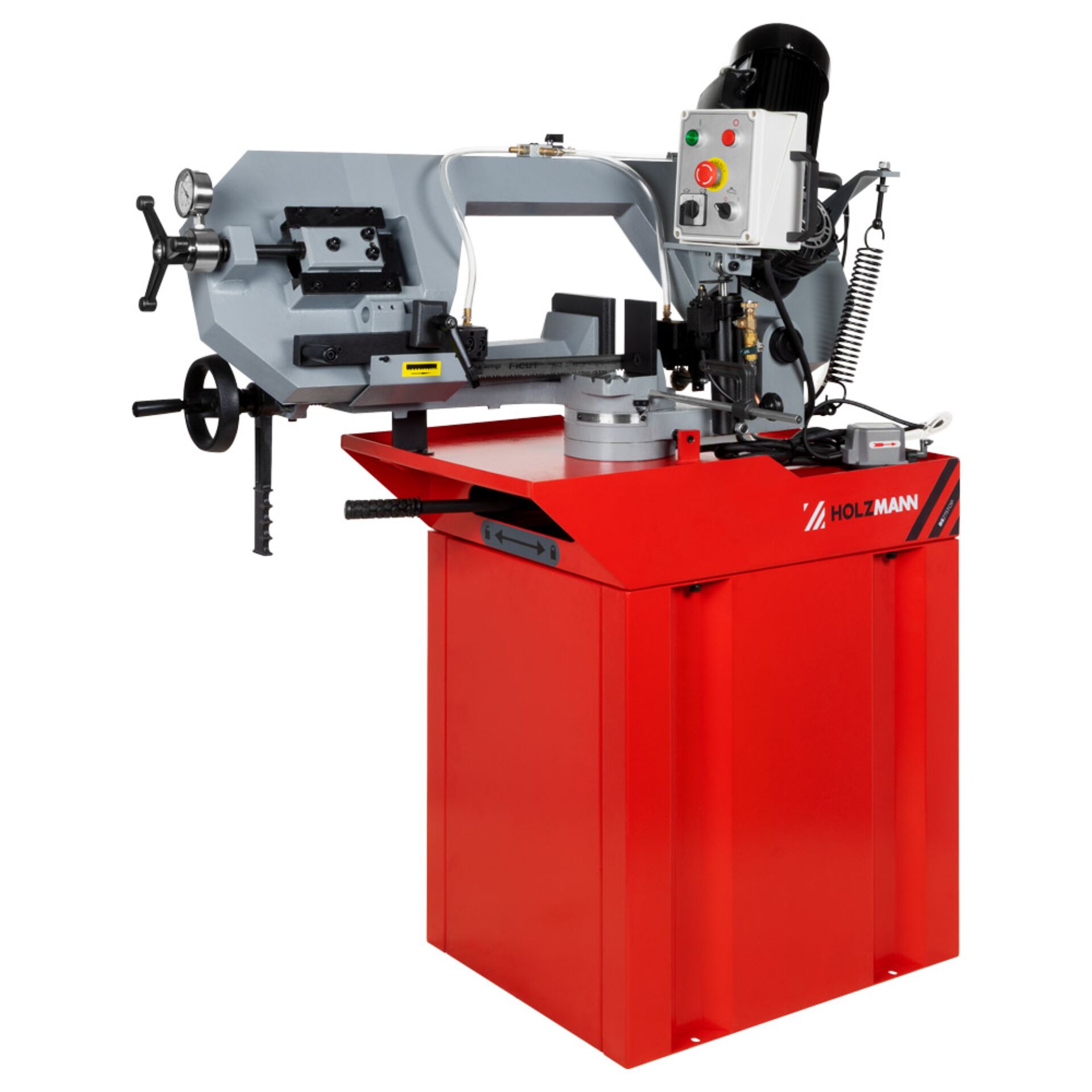

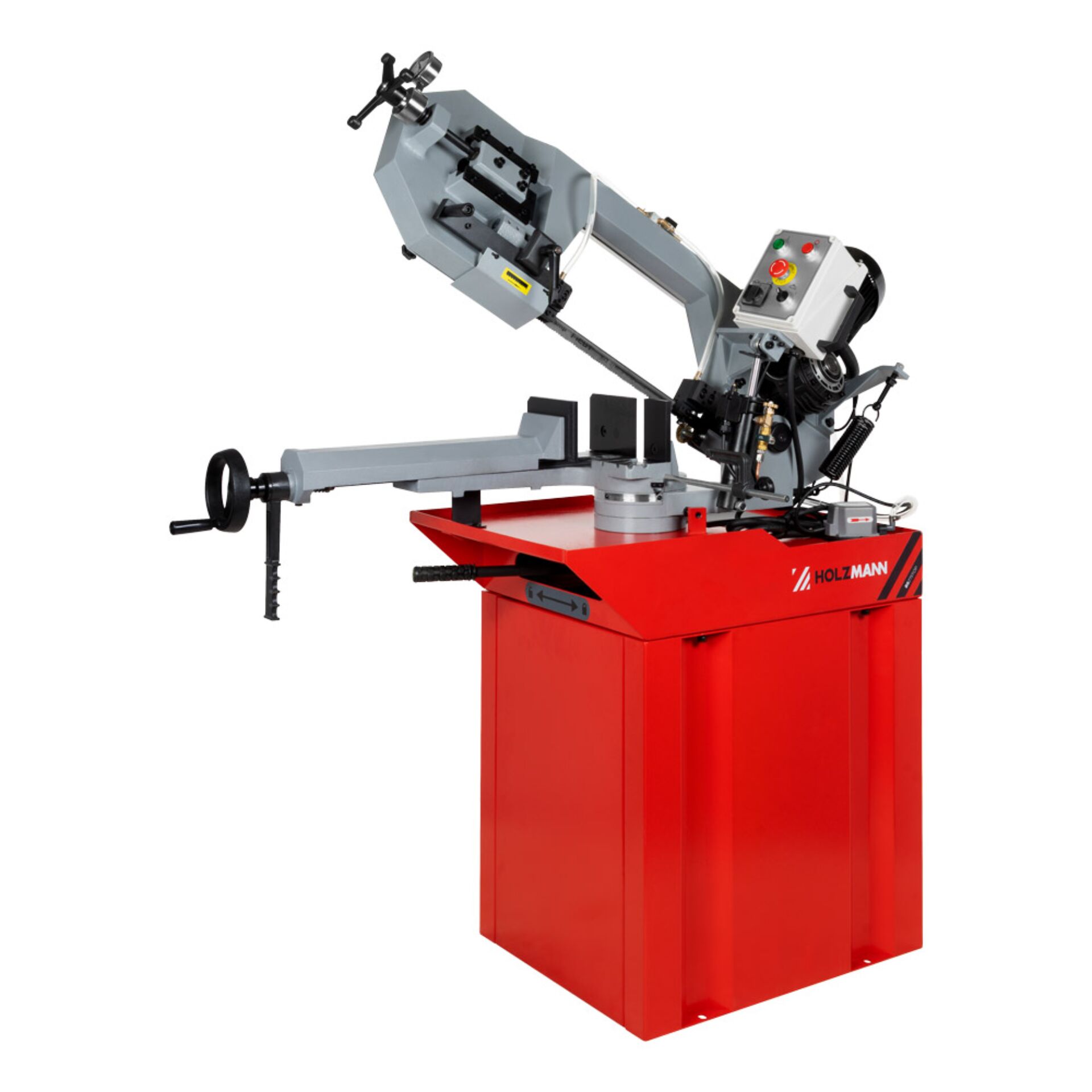

Holzmann BS275TOP 400V Metal Band Saw
Price: 1782.20 €
| Products ID: | 181068 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120058374258 |
Delivery options to:
Choose country
The Holzmann BS275TOP 400V is a metal band saw built with a solid cast construction designed for low-vibration operation and precise, repeatable cuts.
Key Features
- Solid cast construction with 5-point blade guide ensures clean cuts and reduced wear
- Swivelling saw bow from 0° to 60° for flexible mitre cutting
- 2-speed gearbox drive provides blade speeds of 37.5 and 75 m/min
- Continuously adjustable lowering speed supported by a pressure cylinder
- Integrated coolant system and automatic shut-off feature
- Grey cast iron vice with eccentric clamping and manometer for blade tension
| Motor power S1 | 1.5 kW |
|---|---|
| Voltage | 400 V / 3 / 50 Hz |
| Swivel range | 0°–60° |
| Cutting capacity round Ø 90° | 225 mm |
| Cutting capacity round Ø 45° | 160 mm |
| Cutting capacity round Ø 60° | 100 mm |
| Cutting capacity L x H 90° | 200 x 200 mm |
| Cutting capacity L x H 45° | 160 x 160 mm |
| Cutting capacity L x H 60° | 100 x 100 mm |
| Saw blade | 2450 x 27 x 0.9 mm |
| Saw blade speed | 37.5 / 75 m/min |
| Weight | 195 kg |
| Type | Metal Band Saw |
| Operating mode | Mains |
| Colour | Red / Grey |
What electrical connection is required for this machine?
This metal band saw requires a 400 V three-phase power connection (400 V / 3 / 50 Hz).
What is the maximum round cutting capacity at 90 degrees?
The maximum round workpiece cutting capacity at 90° is 225 mm in diameter.
What are the dimensions of the compatible saw blade?
The saw uses a band saw blade measuring 2450 x 27 x 0.9 mm.
