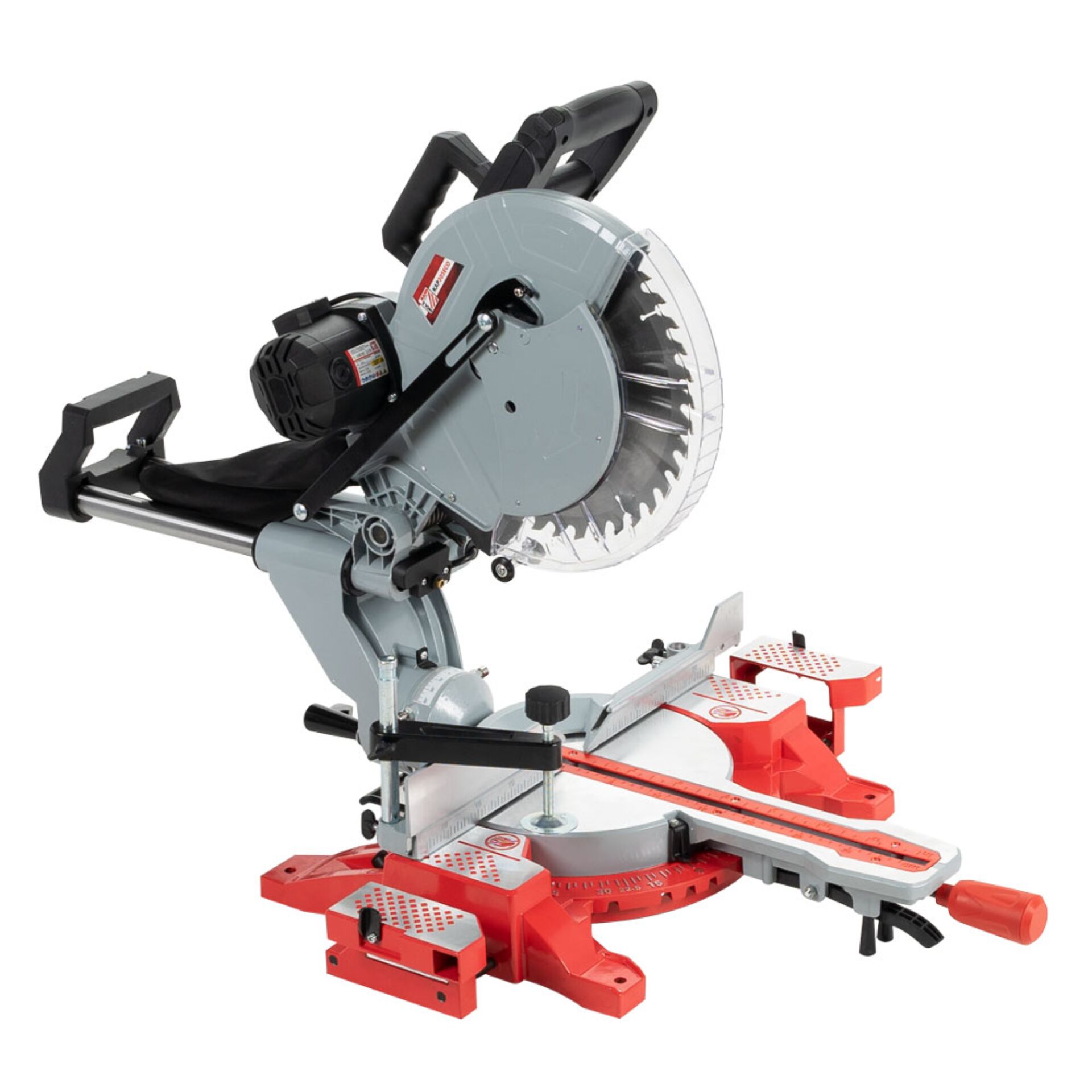

Chop and Mitre Saw Holzmann KAP305ECO 230V, 2000 W, 305 mm

Chop and Mitre Saw Holzmann KAP305ECO 230V, 2000 W, 305 mm — Image 3

Chop and Mitre Saw Holzmann KAP305ECO 230V, 2000 W, 305 mm — Image 4

Chop and Mitre Saw Holzmann KAP305ECO 230V, 2000 W, 305 mm — Image 5

347.70 €

Products ID: 183227

In supplier warehouse Available to order: 3 pcs. Delivery Time 7–15 business days

Delivery options to:

Choose country

The Holzmann KAP305ECO 230V is a solid and reliable cross-cut and mitre saw designed for diverse cutting tasks in the workshop. A built-in laser clearly indicates the cutting line, while the saw unit geometry allows cutting heights up to 105 mm.

Key Features

Belt drive provides smooth, quiet operation with reduced mechanical wear

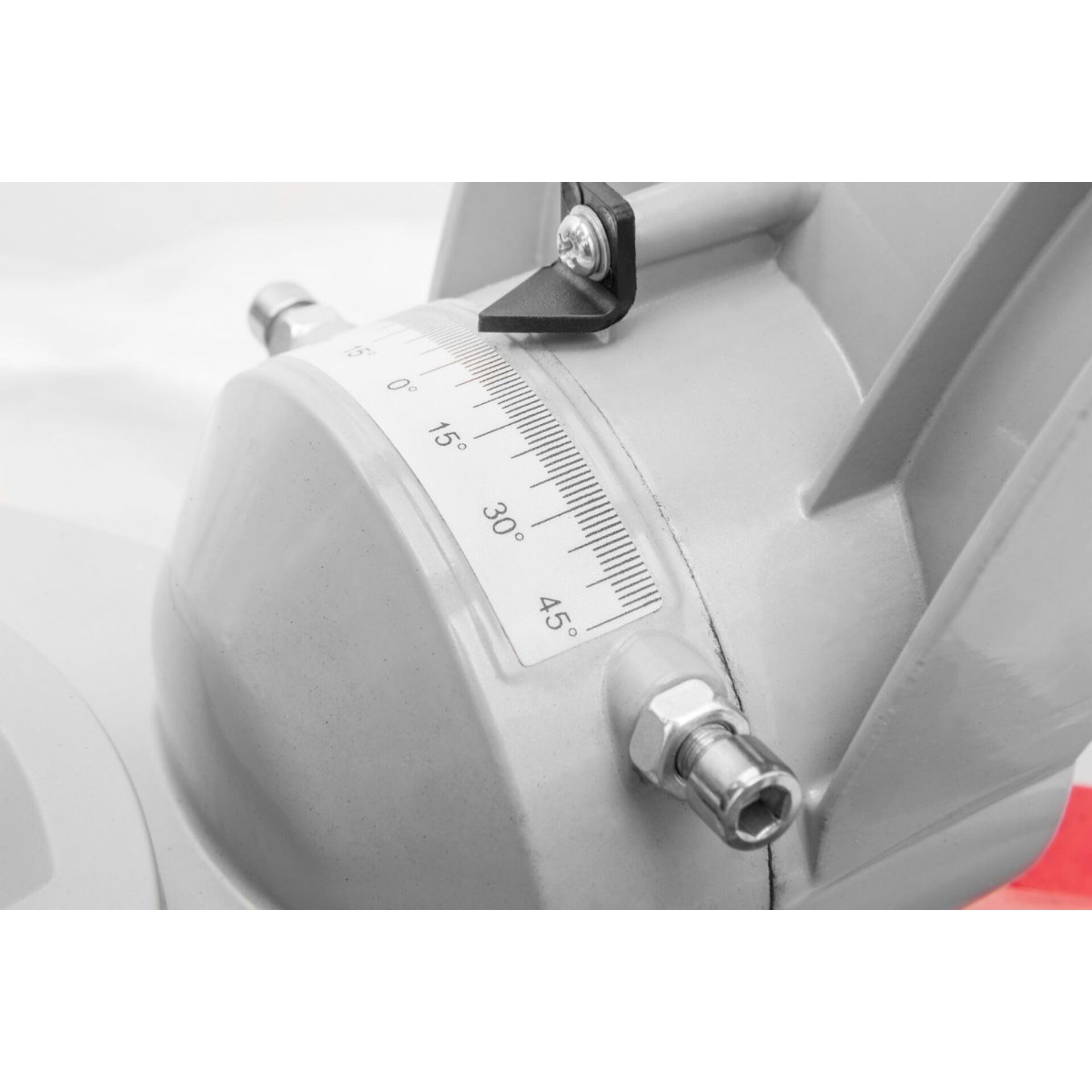

Saw unit swivels and tilts left/right (-45°/+45°)
Smooth double guide pulley system for precise movement

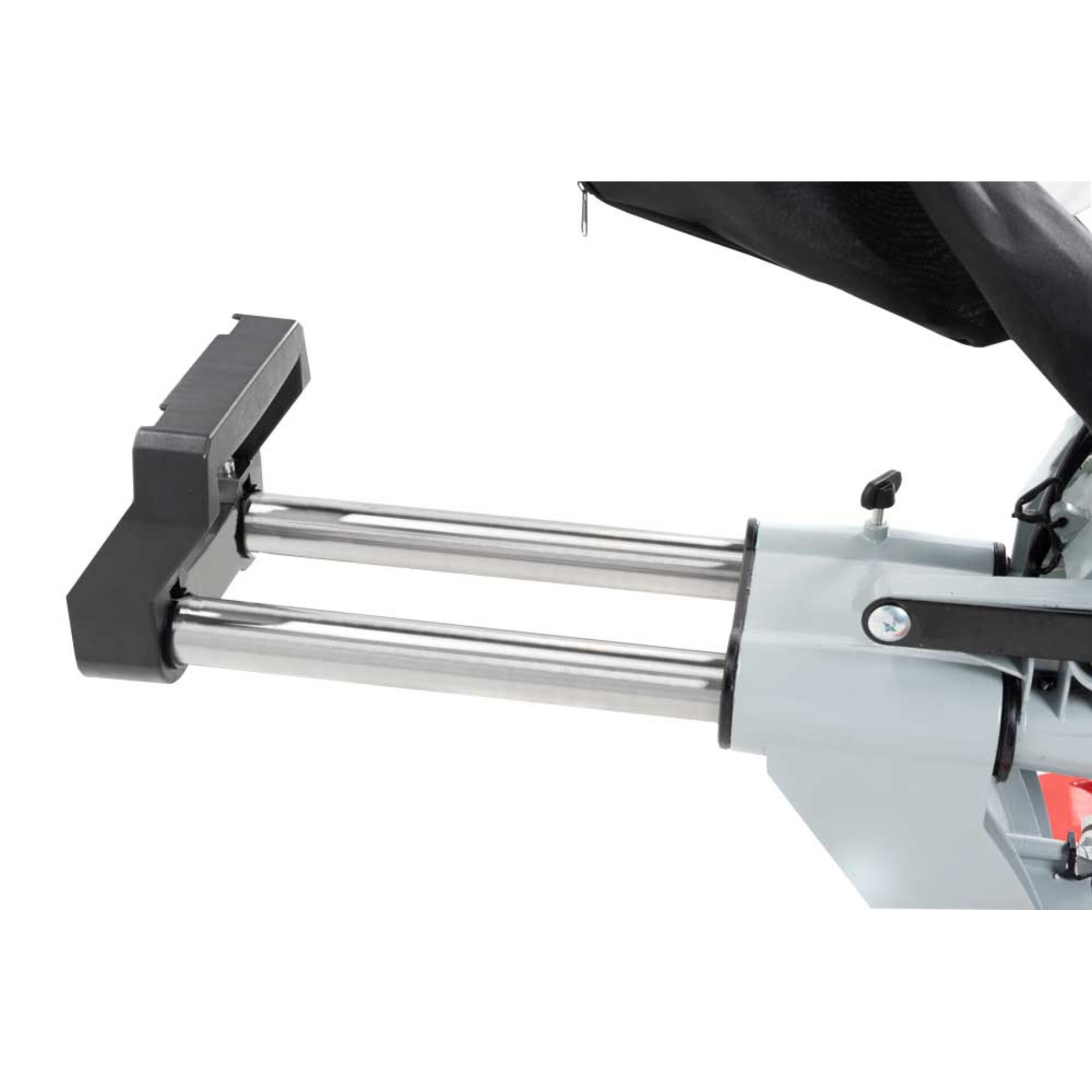

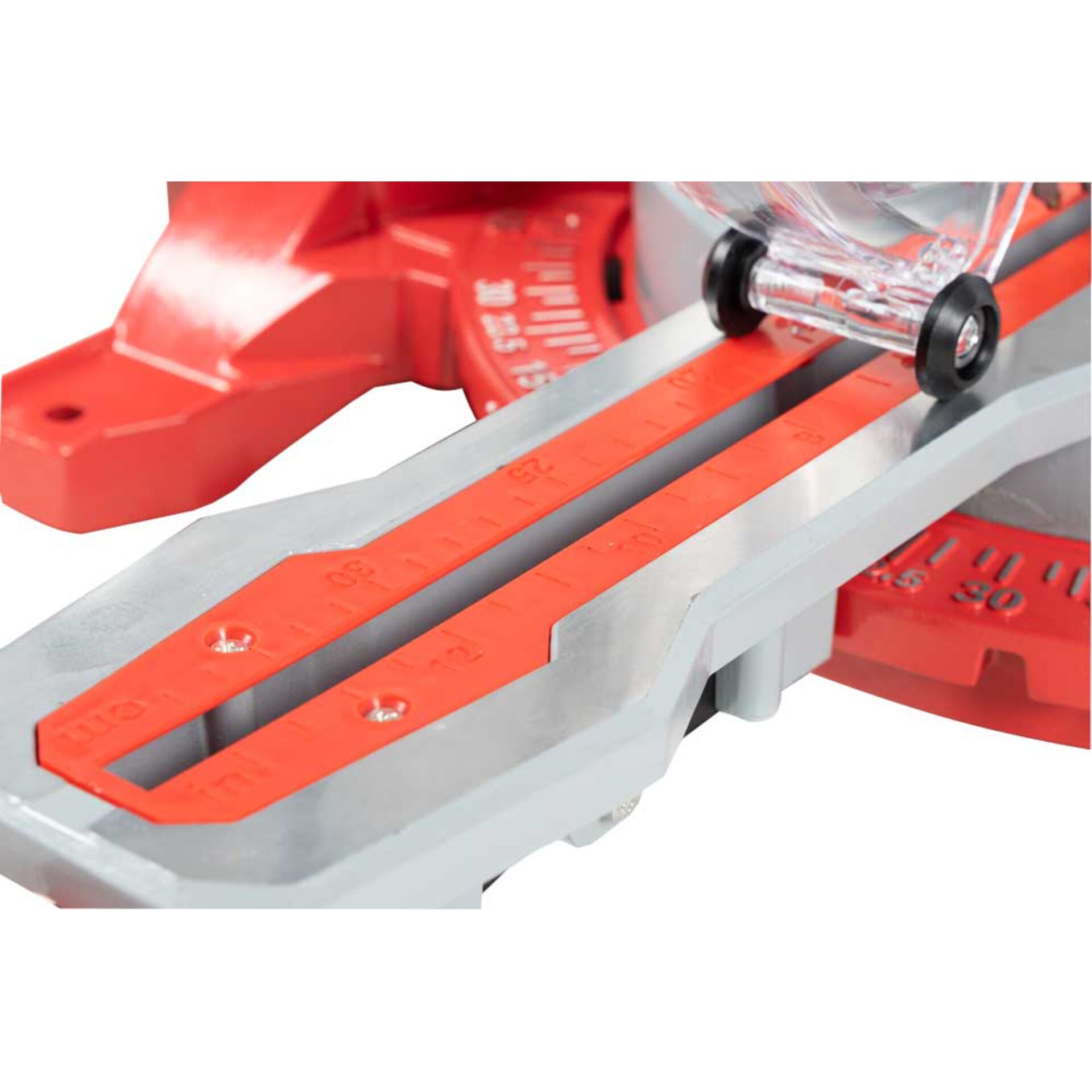

Solid die-cast aluminium base frame and extendable backgauge

Motor power	2000 W
Voltage	230 V
No-load speed	3800 min-1
Protection class	II
IP rating	IP20
Cable length	2 m
Suction connection diameter	37.5 mm
Installation dimensions	890 x 600 x 490 (max. 1140 x 1020 x 690) mm
Max. cutting height 90°	105 mm
Max. cutting height 45°	60 mm
Max. cutting length 90°	330 mm
Max. cutting length 45°	230 mm
Saw blade diameter	305 mm
Bore diameter	25.4 mm
Sound pressure level	95 dB(A)
Colour	Red / Grey
Weight	21 kg
Material	Metal / Plastic
Pulling function	Yes

EAN	9120058376658

What is the maximum cutting height at 90 degrees?

The maximum cutting height at 90° is 105 mm.

What items are included in the package?

The delivery includes the Holzmann KAP305ECO 230V cross-cut and mitre saw, a carbide circular saw blade, a laser guide, a table extension, and a depth stop.
