Mitre Saw Set Metabo KGS 305 M + KSU 401

Mitre Saw Set Metabo KGS 305 M + KSU 401 — image 3

Mitre Saw Set Metabo KGS 305 M + KSU 401 — image 4

Mitre Saw Set Metabo KGS 305 M + KSU 401 — image 5

Price: 743.90 €

Products ID:	183731
Manufactured by:	Metabo
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4061792226111

Delivery options to:

Choose country

Mitre Saw Set Metabo KGS 305 M + KSU 401

The Metabo KGS 305 M is a mains-powered mitre saw with pulling function, supplied together with the KSU 401 machine frame for workshop and job site wood cutting.

Key features

Precision Cut Line (PCL): exact shadow cut line without readjustment via an integrated LED

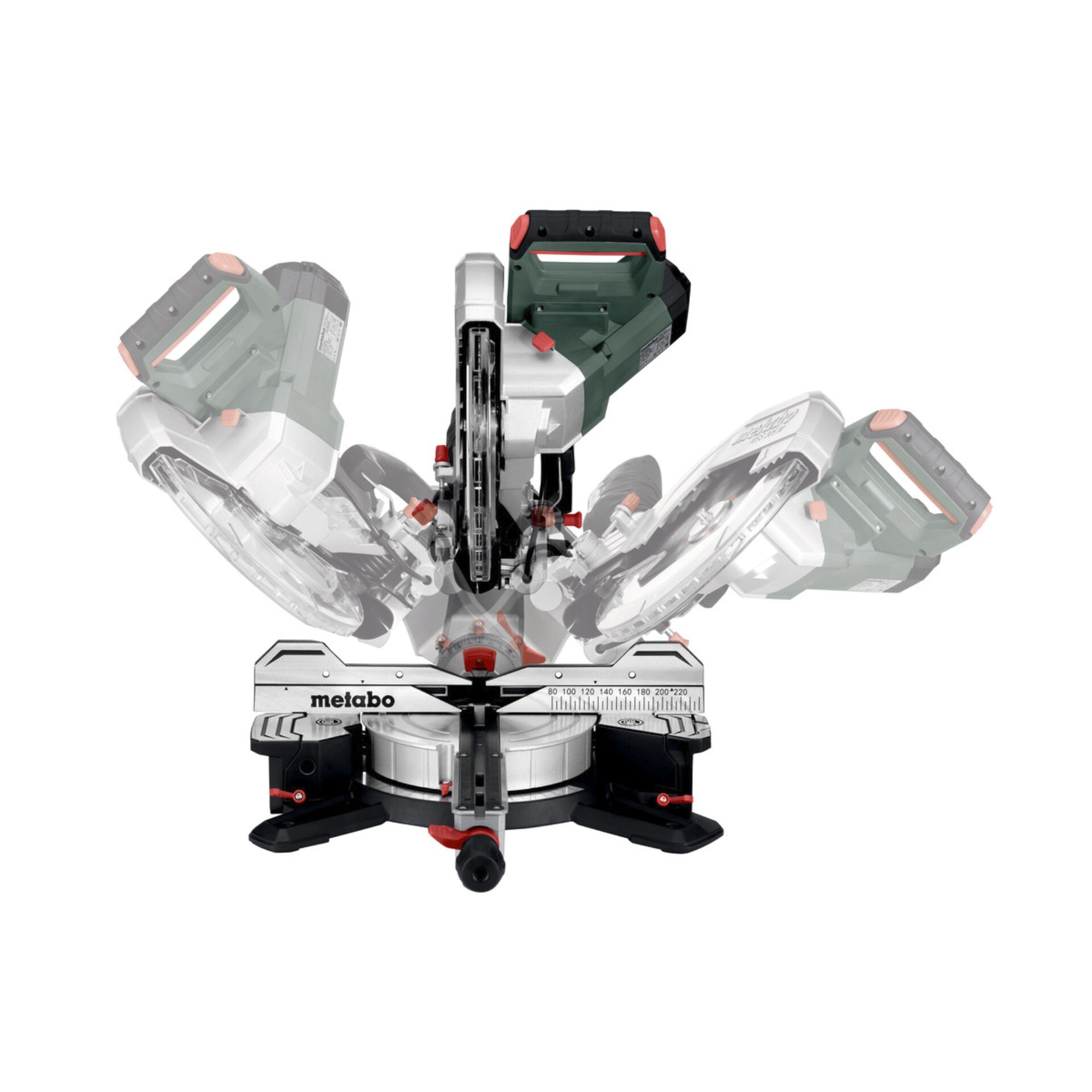

Saw blade tilt on both sides up to 47° for versatile bevel cuts

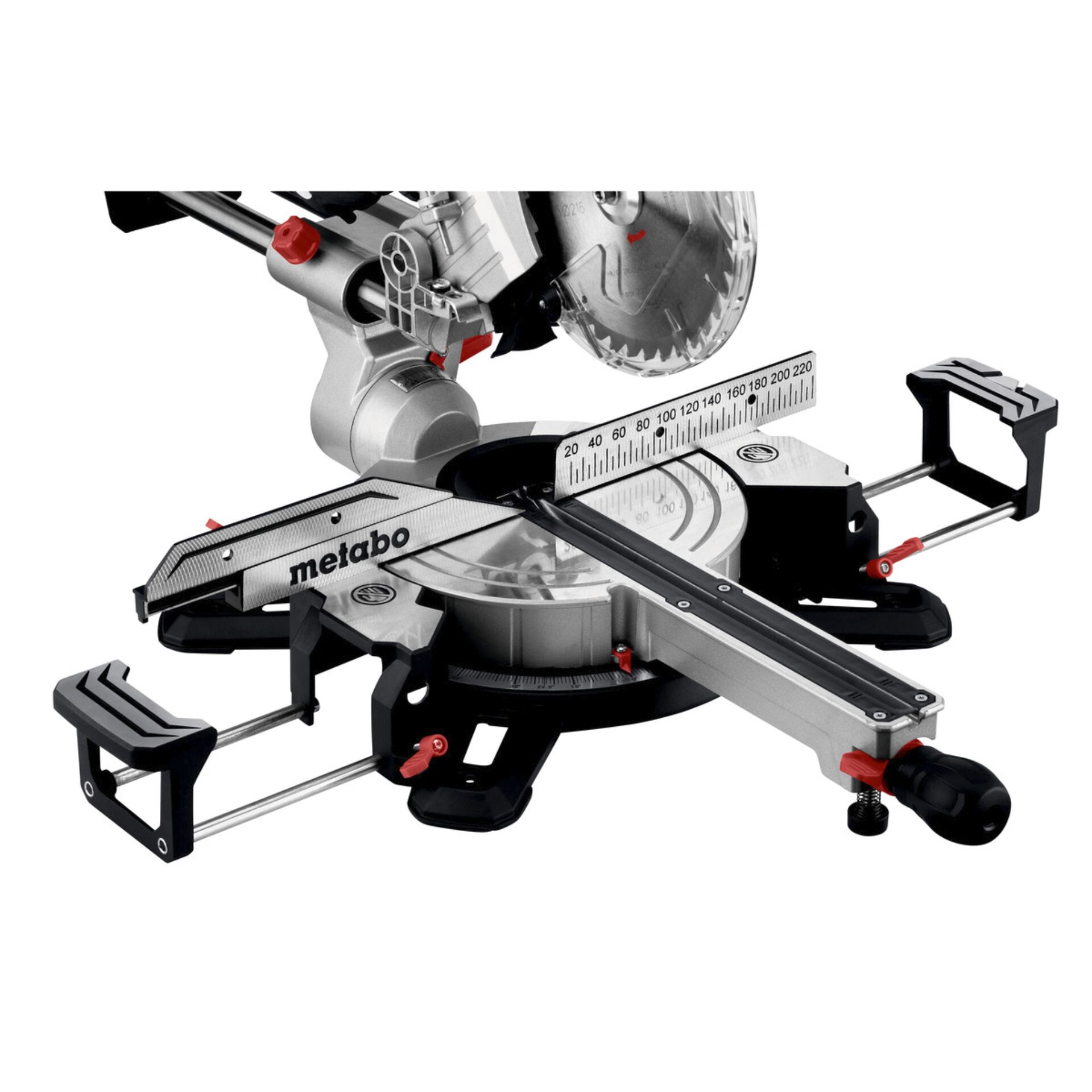

Rotating table with quick and accurate setting of standard angles
Durable die-cast aluminium housing and ergonomic carry handle
Integrated chip catch funnel for efficient dust extraction

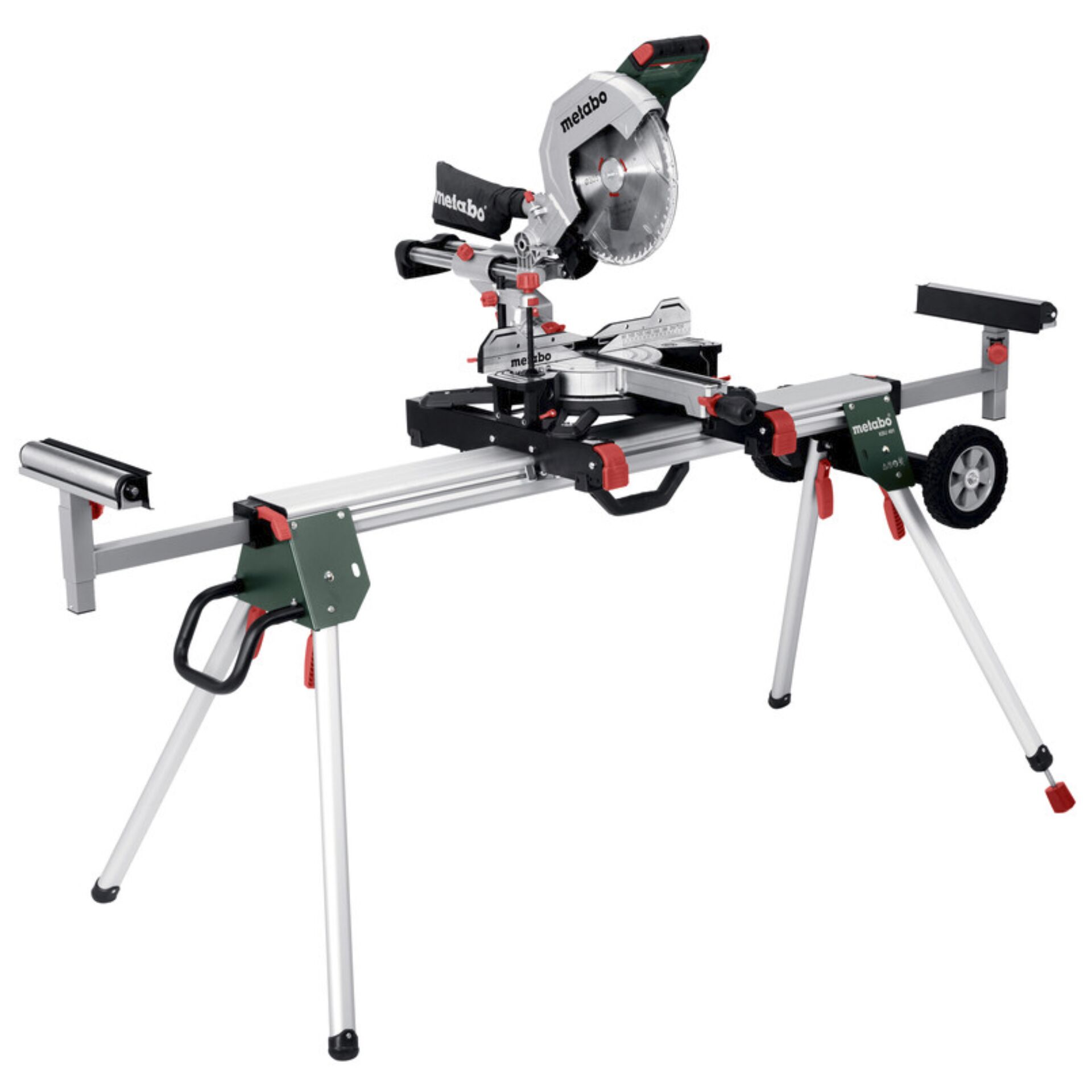

Complete set includes KSU 401 machine frame and 56-tooth saw blade

Dimensions	780 x 500 x 657 mm
Support surface	345 x 770 mm
Max. cutting width 90° / 45°	305 / 215 mm
Max. cutting depth 90° / 45°	110 / 67 mm
Cutting capacity 90° / 90°	305 x 110 mm
Cutting capacity 45° / 45°	215 x 67 mm
Rotating table adjustment left / right	50 / 60 °
Saw blade tilt left / right	47 / 47 °
Saw blade	305 x 30 mm
Rated input power	1600 W
Rated input power S1 100%	1600 W
Rated input power S6 20%	2000 W
No-load speed	3700 /min
Speed at rated load	3000 /min
Cutting speed	59 m/s
Weight	18.6 kg
Cable length	2 m
Sound pressure level	87 dB(A)
Sound power level (LwA)	100 dB(A)
Measurement uncertainty K	3 dB(A)
Operating mode	Mains
Saw blade drilling diameter	30 mm
Number of teeth	56
Pulling function	Yes
Material	Aluminium
Colour	Green / Silver
Voltage	220 - 240 V

What is included in the package?

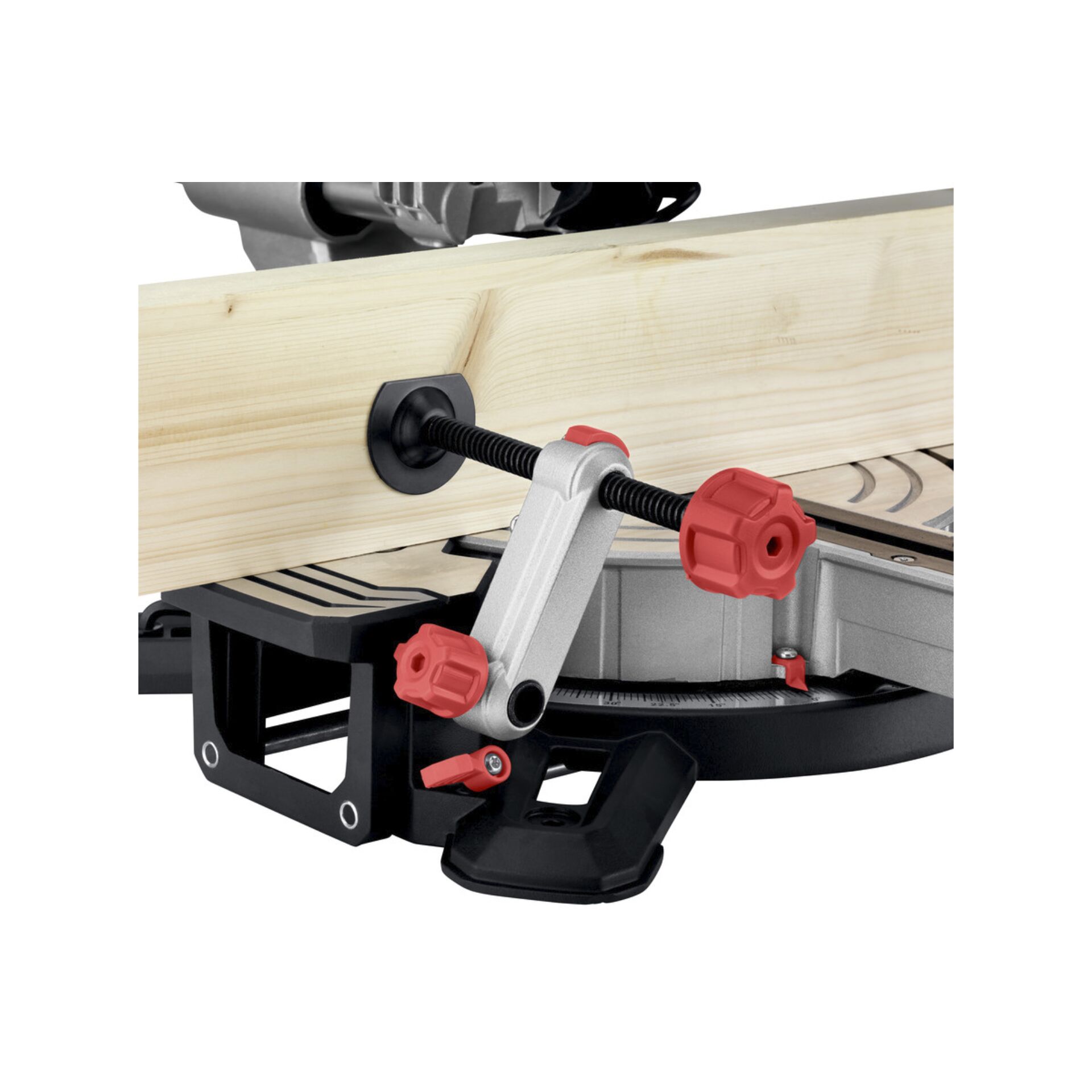

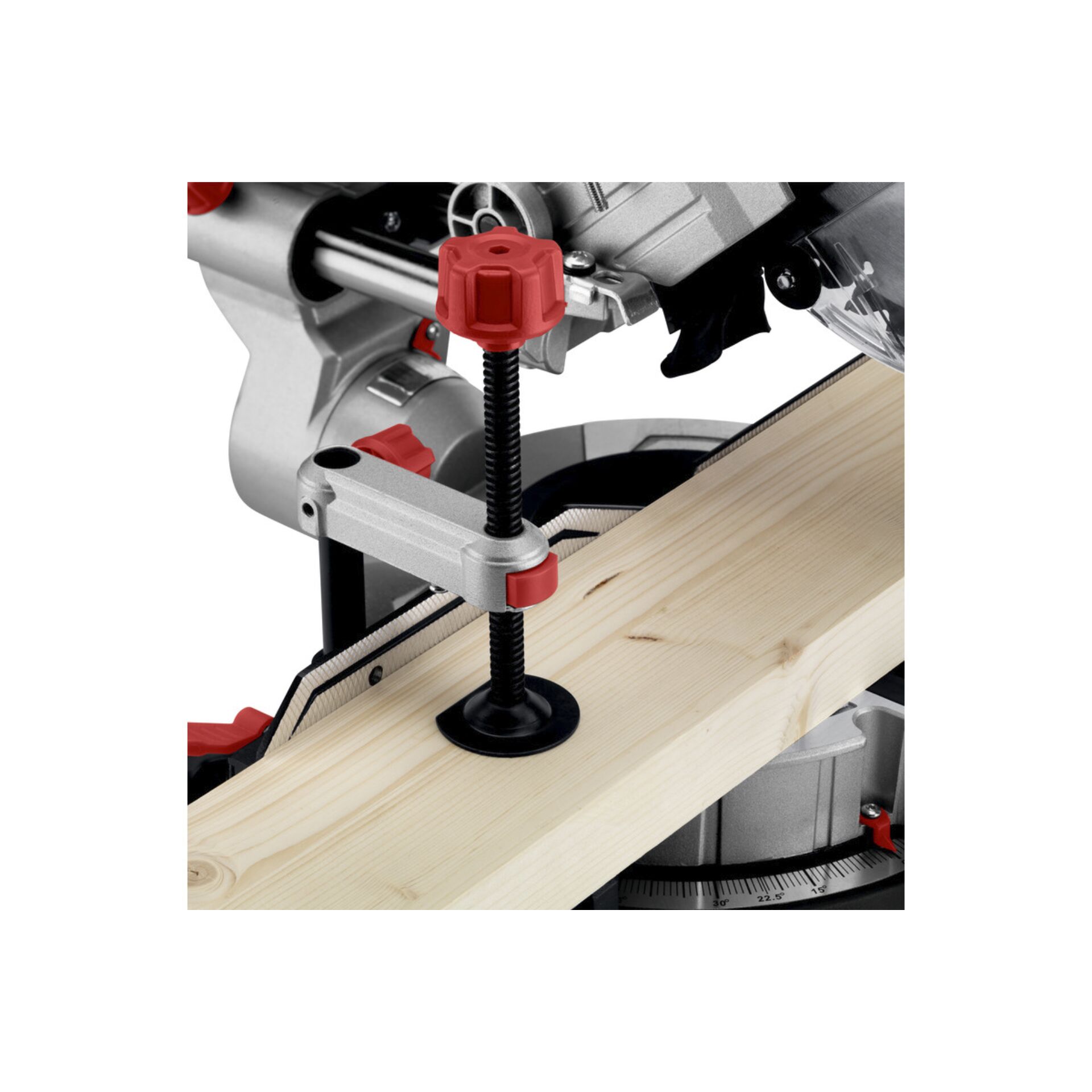

The package includes a 305 x 30 Z56 Precision cut wood saw blade, two integrated table extensions, a crosscut stop, a material clamp, a saw blade change tool, cable winding, a chip collection bag, and the KSU 401 machine frame.

What is the cutting capacity at 90°/90°?

At a 90°/90° angle, the saw offers a cutting capacity of 305 x 110 mm.

How does the Precision Cut Line feature work?

Precision Cut Line (PCL) projects an exact shadow of the saw blade onto the workpiece using an integrated LED, ensuring an accurate line without manual realignment.
