SmallRig X99 V-Mount battery, 99 Wh, USB-C up to 100 W
Delivery options to:
Choose countryThe SmallRig X99 is a 99 Wh V-Mount battery for powering photo and video equipment as well as compatible mobile devices. LG cells and independent circuits support simultaneous power delivery to multiple compatible devices, with two USB-C ports offering up to 100 W.
Connections and control
- Power connections: two USB-C ports, USB-A up to 30 W, two D-Tap connectors, BP, and 8 V and 12 V DC outputs.

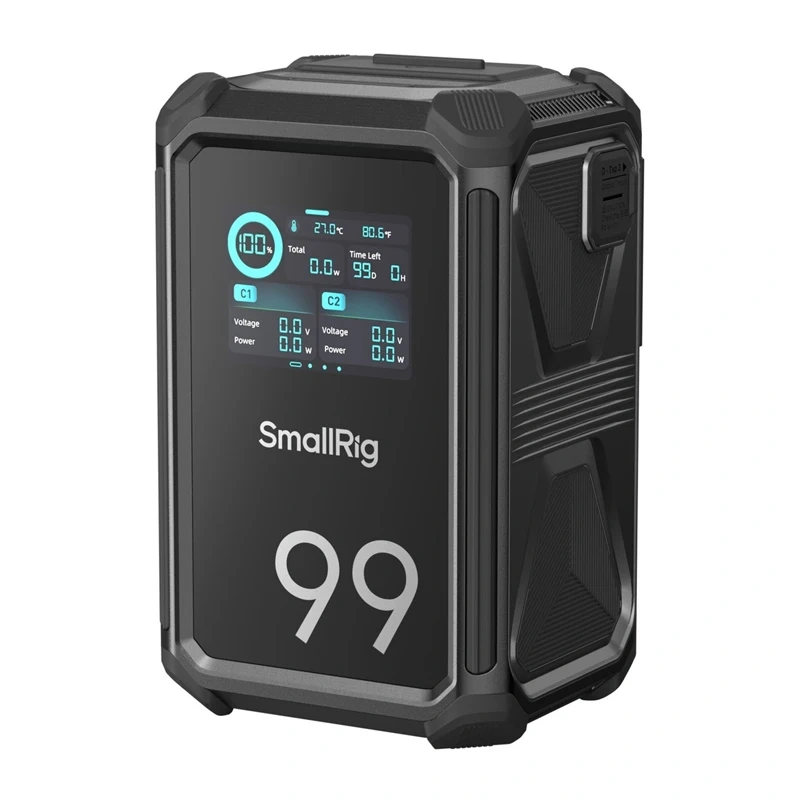

- Touchscreen: a 2.0-inch colour HD display shows operating parameters, with a matte finish to reduce glare.
- App control: remotely monitor charge, control ports, locate the battery and update the system.
- Mounting: V-Mount attachment plus 1/4-inch and 3/8-inch threads for integration into camera rigs.
Housing and charging
Reinforced corners and edges, an IP54 rating and resistance to drops from up to 1.5 m support field use. The BMS monitors charging and discharging. Charge through BP, D-Tap or USB-C; a full charge takes about 2 hours under suitable conditions. Charging temperatures range from 0 to 45 °C, and discharging temperatures from -15 to 60 °C.
The set includes the X99 battery, a 240 W USB-C cable, a user manual and a user guide.
| Manufacturer | SmallRig |
|---|---|
| Model | X99 |
| Battery type | Lithium-ion |
| Rated energy | 99 Wh |
| Rated specifications | 14.54 V / 6 800 mAh |
| Total cell capacity | 27 200 mAh (8 × 3 400 mAh) |
| Cells | LG |
| Maximum rated output power | 100 W |
| Display | 2.0-inch HD colour touchscreen |
| Mobile app control | Yes |
| USB-C1 / USB-C2 input | 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A, max. 100 W |
| USB-C1 / USB-C2 output | 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A, max. 100 W |
| USB-A | 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, max. 30 W |
| BP / D-Tap1 / D-Tap2 | 11.1–16.8 V / 6.8 A |
| 8 V DC output | 8 V / 3 A max. |
| 12 V DC output | 12 V / 3 A max. |
| Charging ports | BP, D-Tap, USB-C |
| USB-C protocols | PD 3.0, QC 2.0, QC 3.0, AFC, DCP 1.5A, PPS, Apple 2.4A |
| USB-A protocols | QC 3.0, QC 2.0, AFC, FCP |
| Cut-off voltage | 11.2 V |
| Charging temperature | 0 °C to 45 °C |
| Discharging temperature | -15 °C to 60 °C |
| Drop resistance | Up to 1.5 m |
| Protection rating | IP54 |
| Materials | Flame-retardant PC, ABS, aluminium alloy |
| Dimensions | 125 × 79 × 68 mm |
| Weight with cable | 880 ± 10 g |
| Compatibility | Mirrorless cameras, camcorders, monitors, follow-focus systems, video transmitters, LED lights, smartphones, tablets, laptops and other compatible devices |
| Mounting | V-Mount; 1/4-inch and 3/8-inch threads |
| Battery management | BMS monitors charging and discharging |
| Full charging time | About 2 hours under suitable conditions |
| EAN | 6941590022703 |
|---|
Can it power several devices at the same time?
Yes. Independent circuits support simultaneous power delivery to multiple compatible devices. Connections must match the voltage, current and power specifications of the selected port.
What is included?
The set includes the SmallRig X99 V-Mount battery, a 240 W USB-C cable, a user manual and a user guide.
