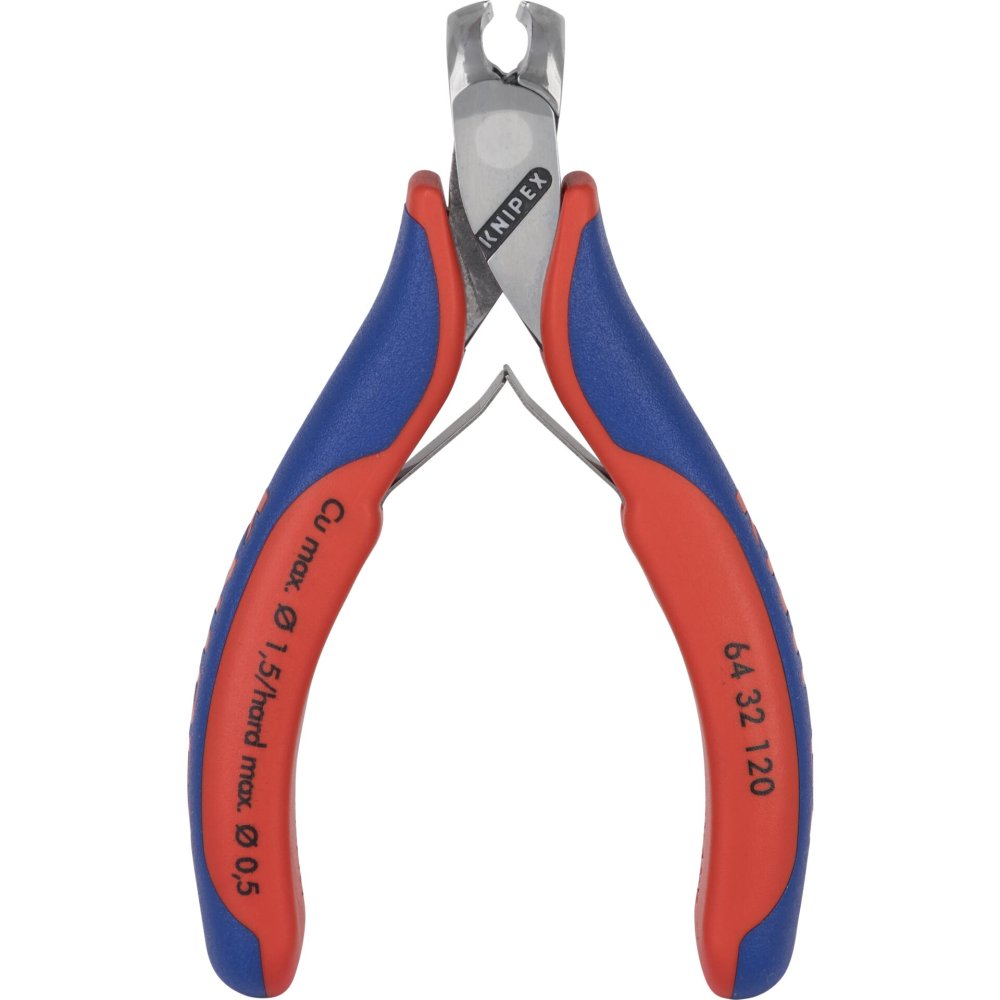

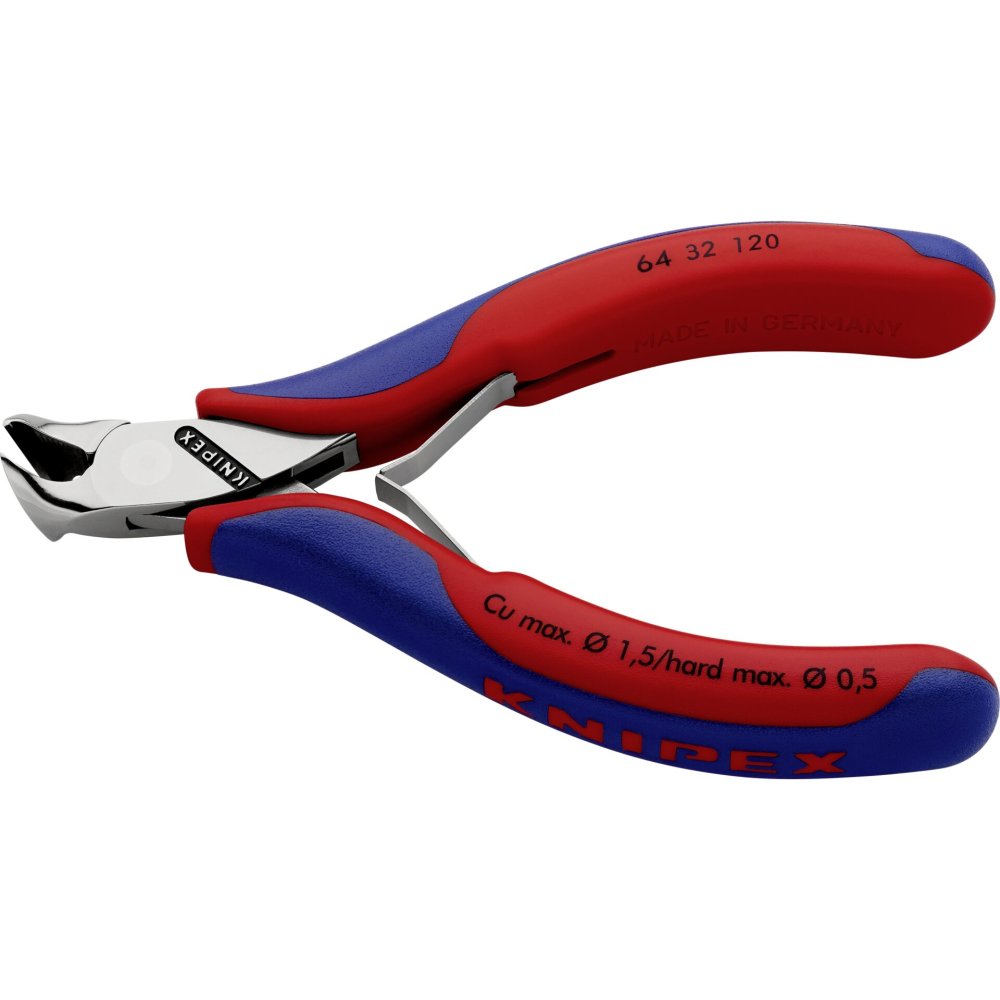

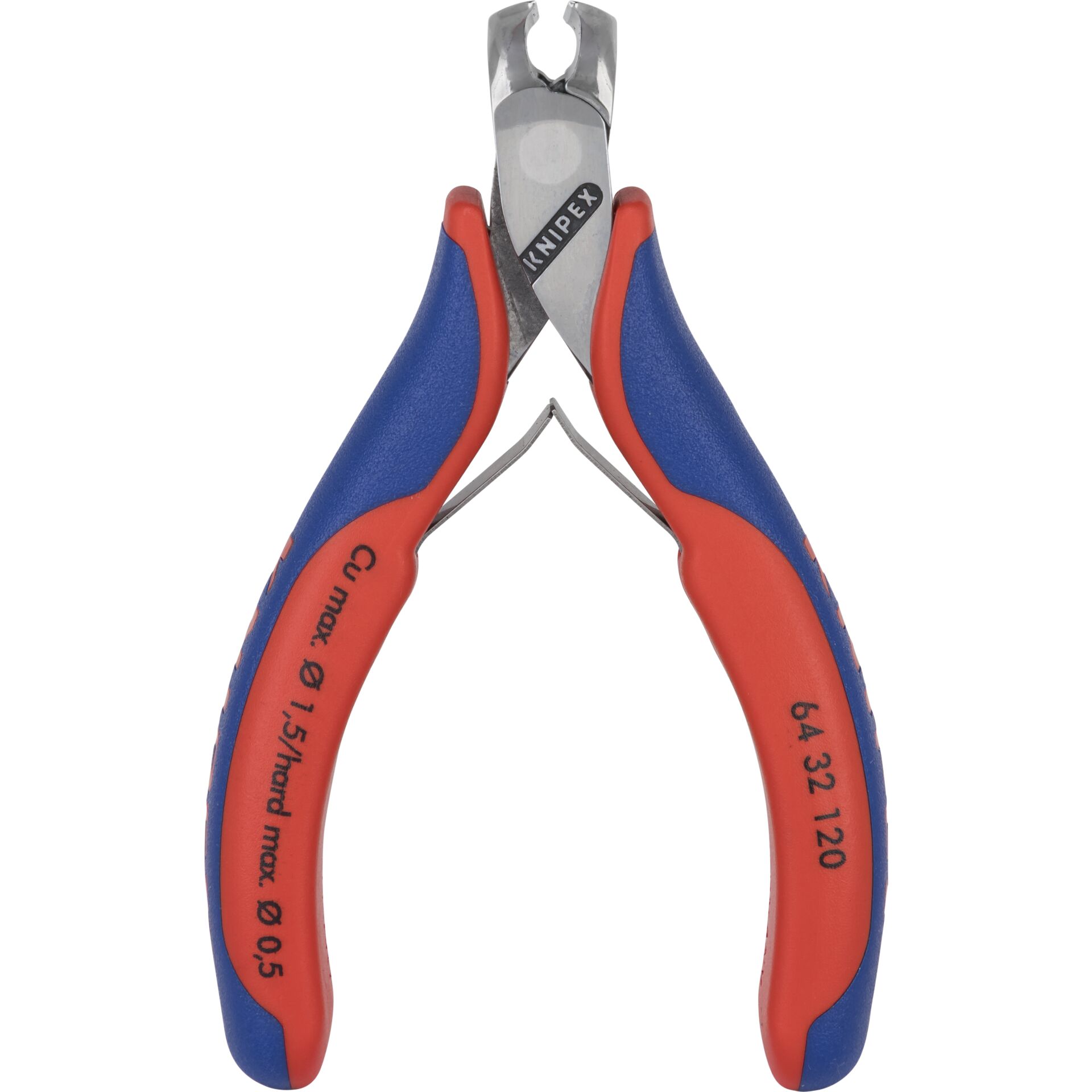

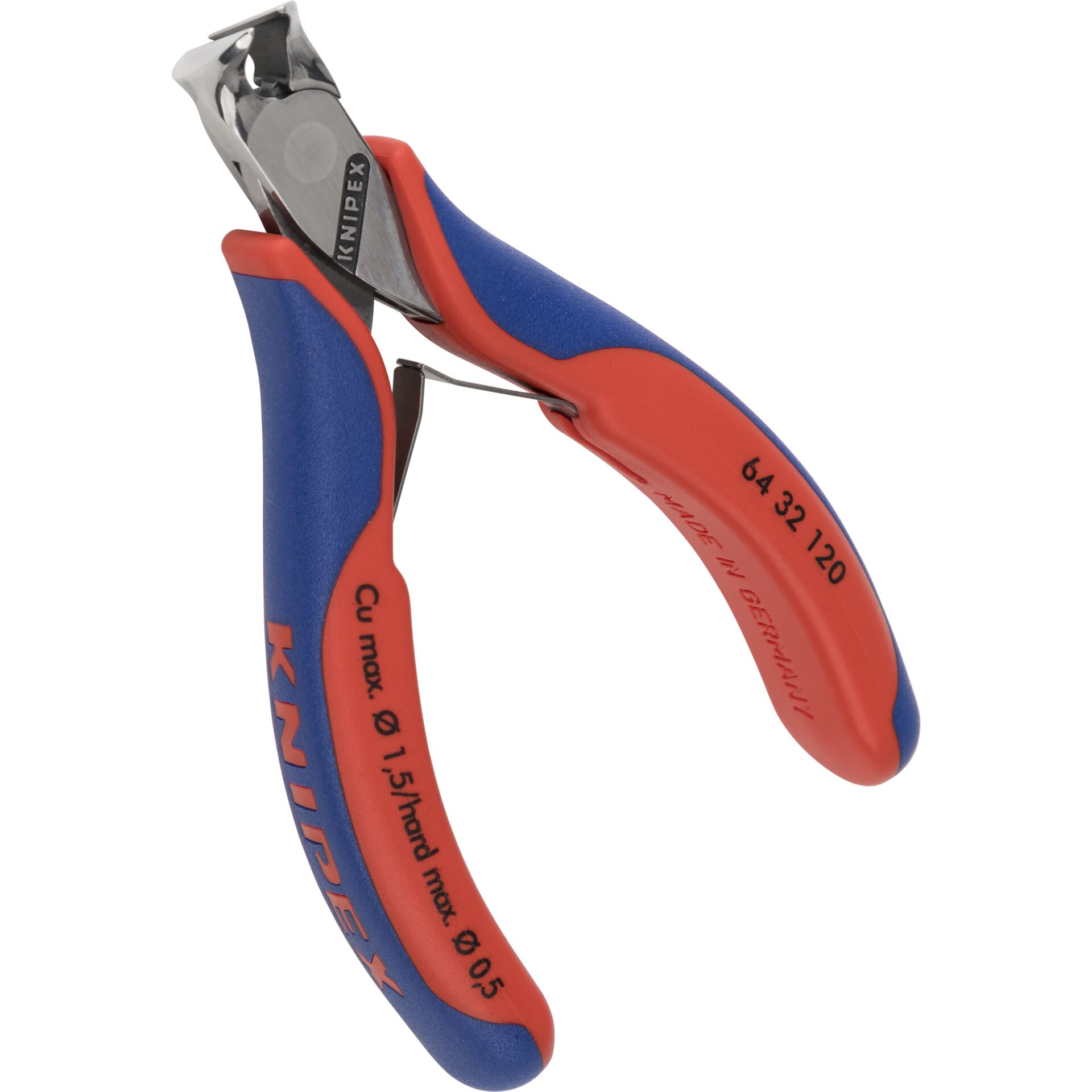

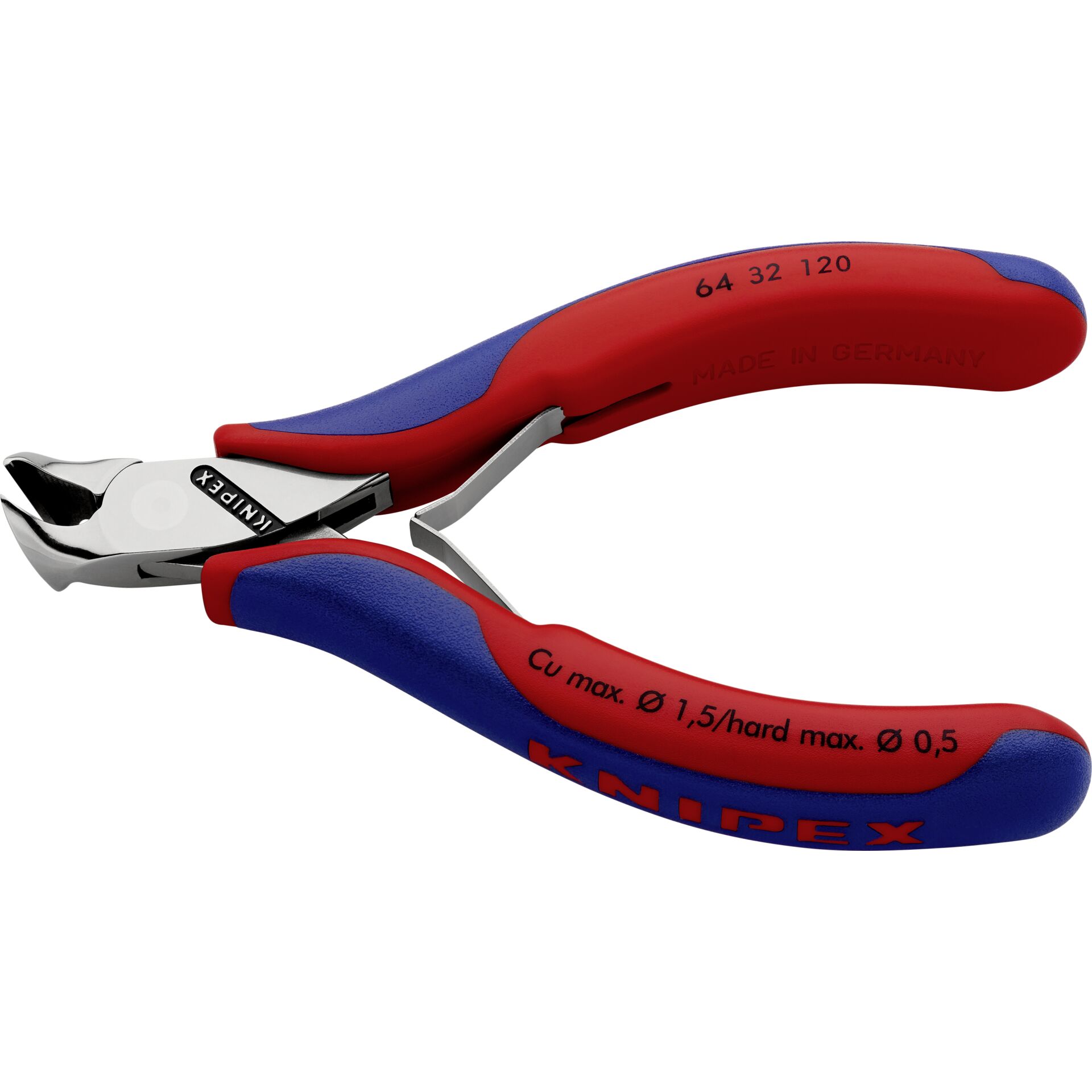

KNIPEX 64 32 120 Electronics End Cutting Nipper 120 mm
48.30 €
Products ID: 184007
In supplier warehouse
Available to order: 1 pcs.
Delivery Time 7–15 business days
Delivery options to:
Choose countryThe KNIPEX 64 32 120 electronics end cutting nipper is designed for precision cutting tasks in electronics and fine mechanics.
Key Features

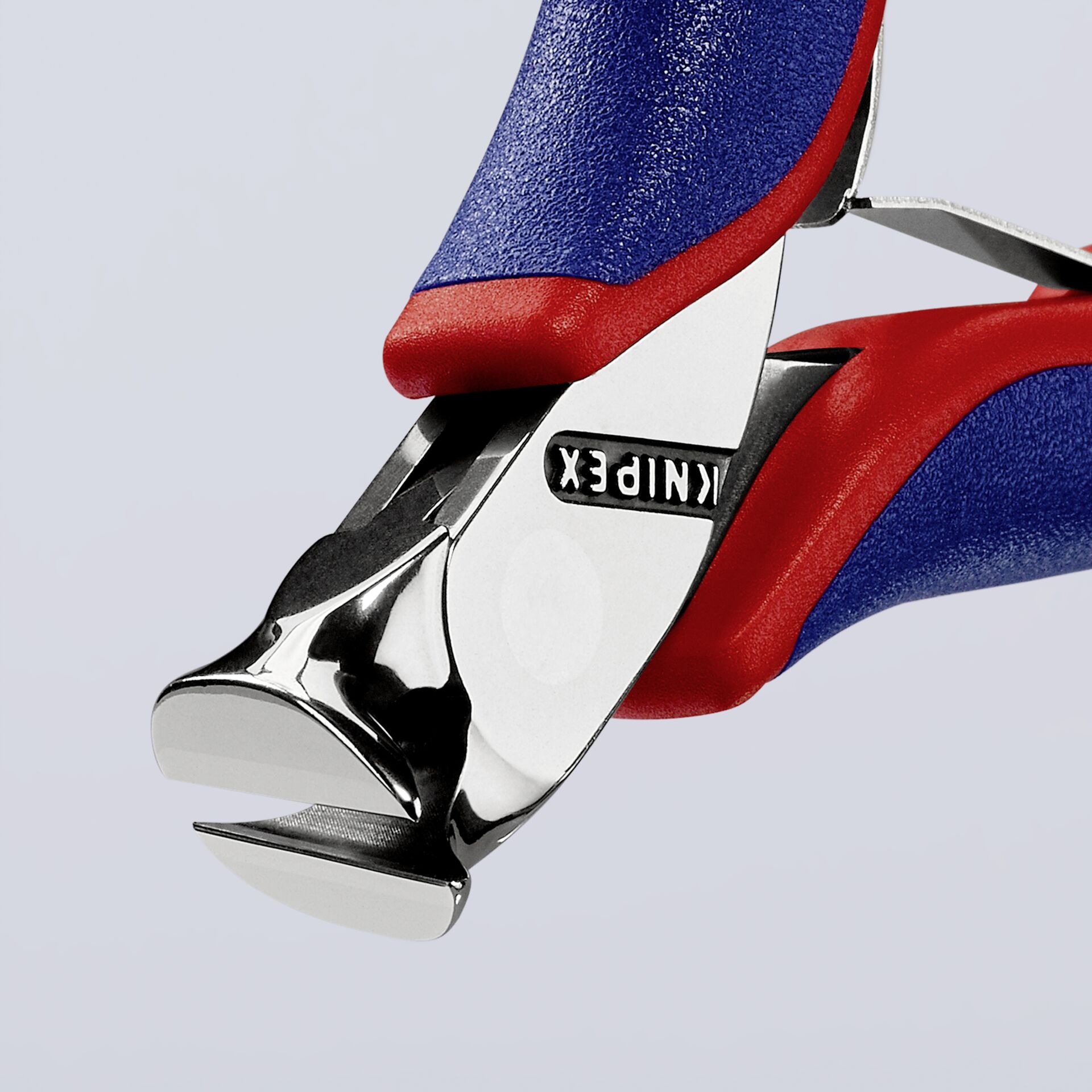

- Front bevel cutter with small facet and α=15° angle
- Sturdy, zero-backlash box joint
- Cutting edge hardness approximately 56 HRC
- Low-friction double spring for gentle and smooth opening
- Mirror polished head with multi-component handle grips
| Overall length | 120 mm |
|---|---|
| Weight | 70 g |
| Dimensions | 120 x 67 x 17 mm |
| Cutting capacity soft wire (diameter) | Ø 1.5 mm |
| Cutting capacity medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacity hard wire (diameter) | Ø 0.5 mm |
| Cutting edge hardness | approx. 56 HRC |
| Cutting edge length | 17 mm |
| Jaw length | 10 mm |
| Jaw thickness at joint | 7 mm |
| Head width | 11 mm |
| Head finish | Mirror polished |
| Handle type | Multi-component grips |
| Material | Steel / Plastic |
| Colour | Red / Blue |
| EAN | 4003773017820 |
|---|
What wire diameters can this nipper cut?
It is rated for soft wire up to Ø 1.5 mm, medium hard wire up to Ø 1.0 mm, and hard wire up to Ø 0.5 mm.
What is the cutting angle of the jaws?
It features a front bevel cutter with a small facet and an angle of α=15°.
