KNIPEX 97 91 04 V03 PV Tool Case for MC4 Solar Cable Connectors, 7-Piece
Price: 618.70 €
| Products ID: | 184219 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773093947 |
Delivery options to:
Choose country

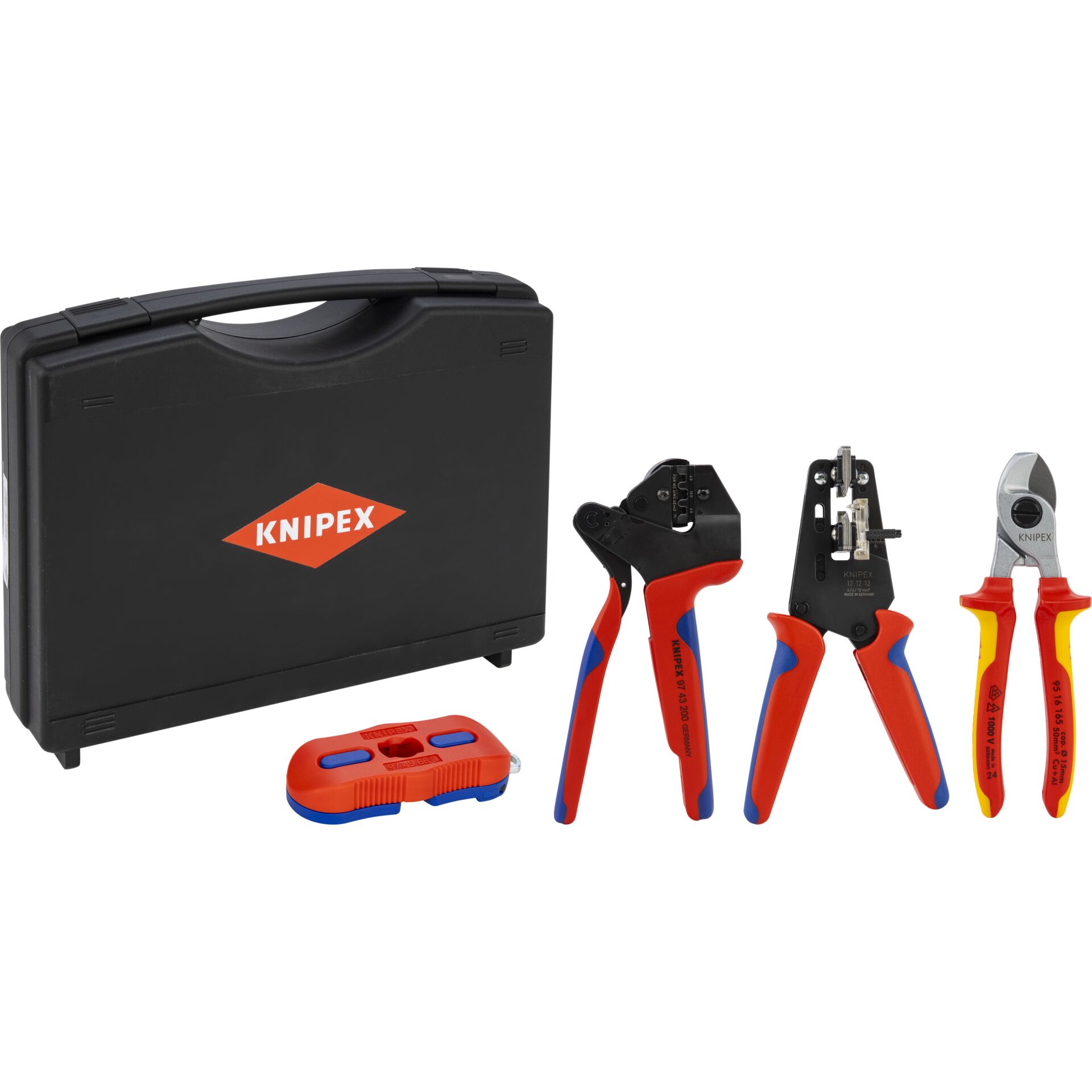

The KNIPEX 97 91 04 V03 tool case is designed for photovoltaic installations and contains coordinated hand tools for working with MC4 solar connectors.
Key Features
- Equipped for photovoltaic systems and MC4 solar connectors

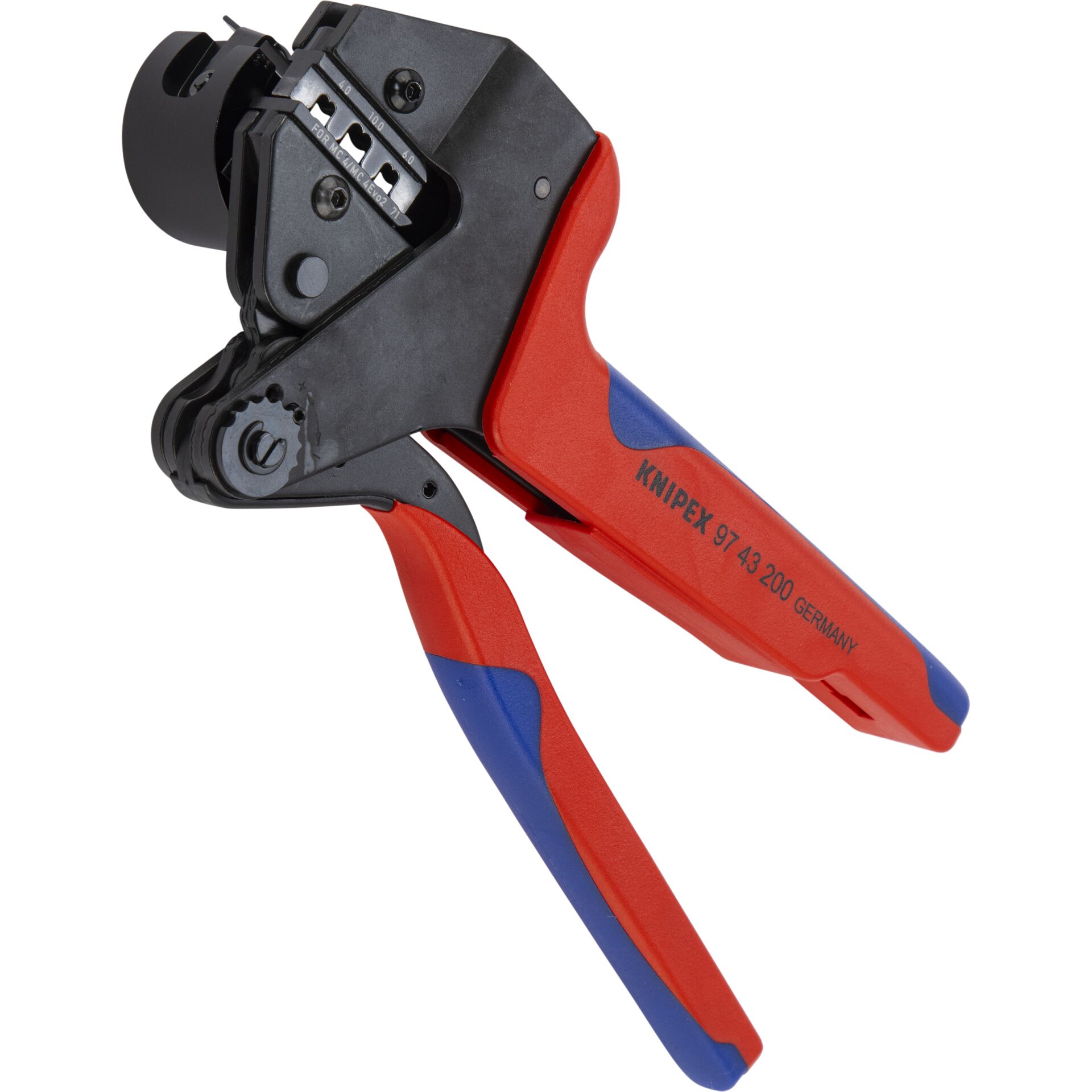

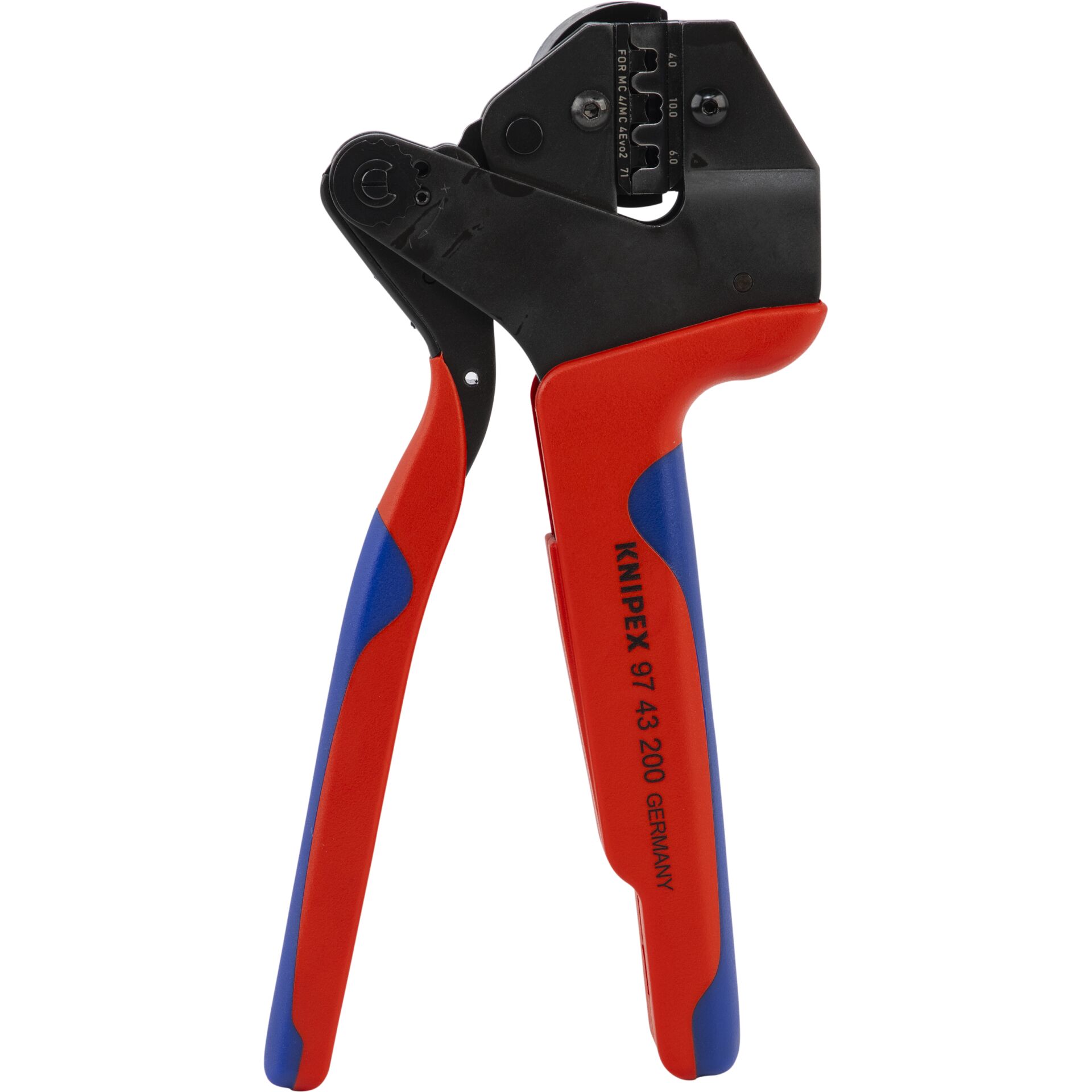

- Crimping system pliers 97 43 200 A with interchangeable crimp inserts
- Cable shears 95 16 165 for copper cables up to 15 mm diameter

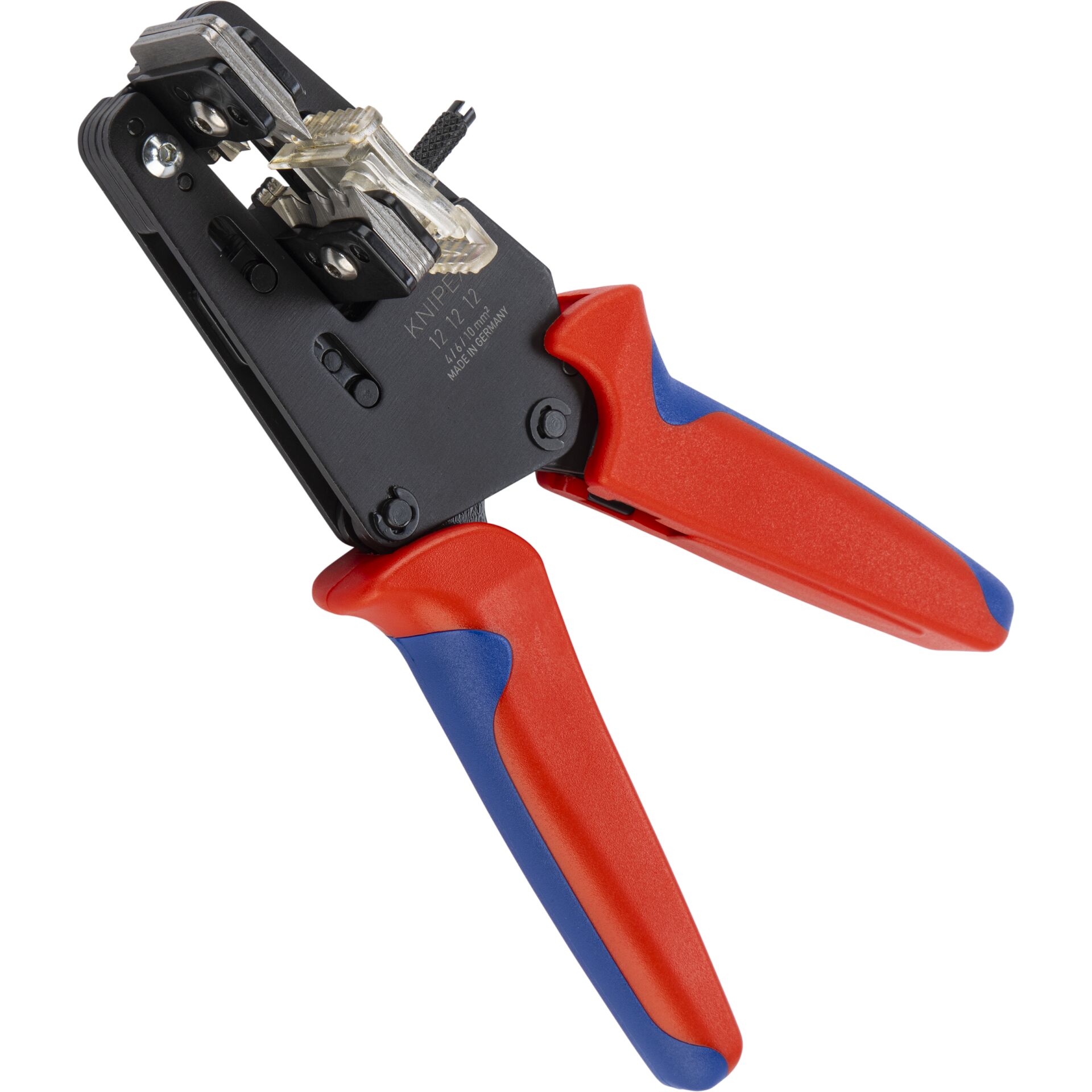

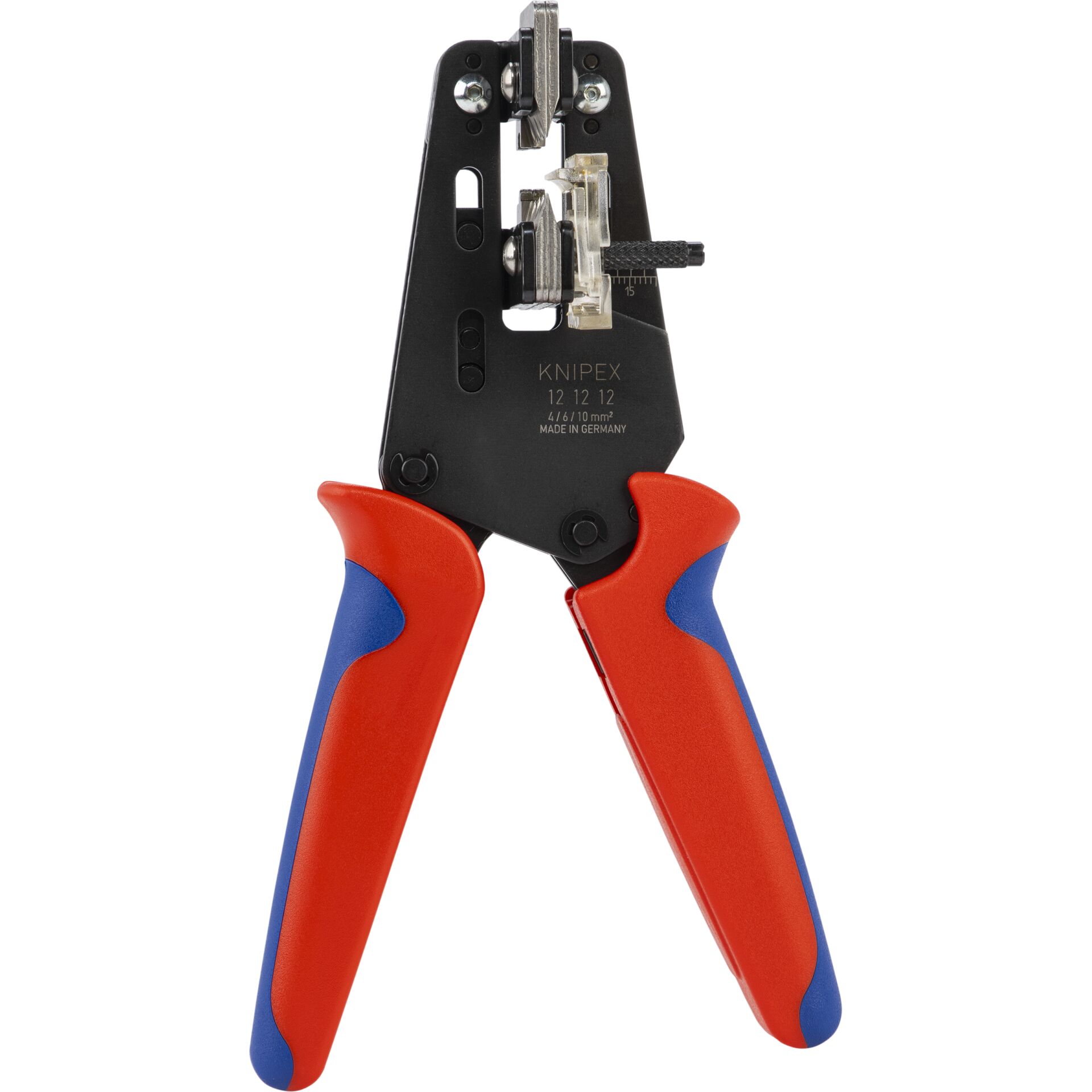

- Precision wire strippers 12 12 12 with shaped blades for 4.0, 6.0, and 10.0 mm²
- Assembly tool set 97 49 66 2 for tightening cable glands and releasing locks
- Impact-resistant plastic case with fitted foam insert for tools and accessories
| Number of parts | 7 |
|---|---|
| Suitable conductor cross-sections | 4.0 / 6.0 / 10.0 mm² |
| Crimp insert | 97 49 71 (for MC4 connectors) |
| Contact holder | 97 49 71 1 |
| External dimensions (W x H x D) | 345 x 80 x 280 mm |
| Weight | 2.01 kg |
| Type of handle | Multi-component grip |
| Material | Steel / plastic |
| Colour | Red / blue |
| Type | Pliers set |
What connector type is this tool case intended for?
This tool set is specifically designed for photovoltaic MC4 solar cable connectors.
Which conductor sizes do the precision wire strippers accommodate?
The included precision wire strippers are shaped for conductor cross-sections of 4.0, 6.0, and 10.0 mm².
