Thicknesser Holzmann DHM330_230V 1500 W
Price: 438.20 €
| Products ID: | 183744 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120132141073 |
Delivery options to:
Choose country

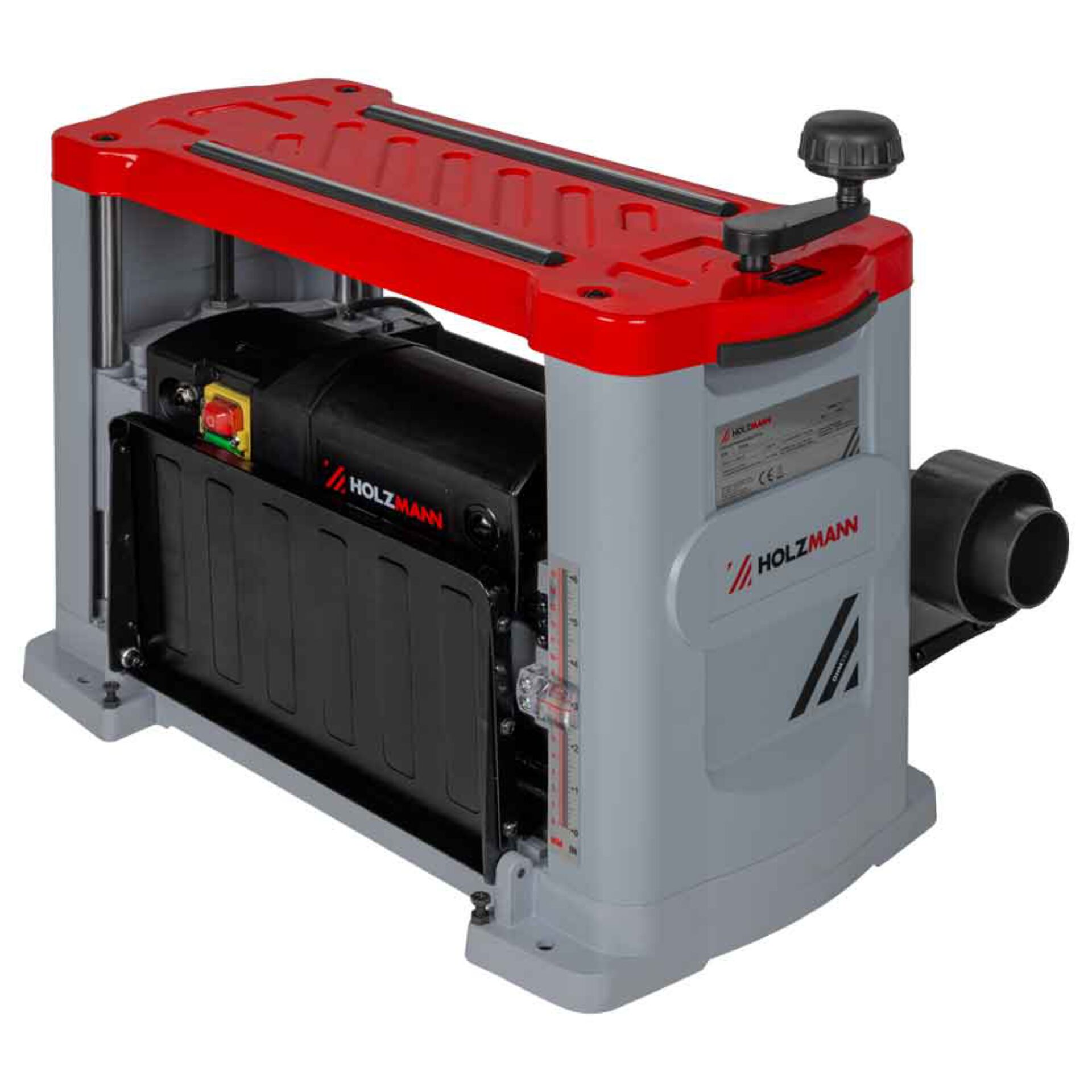

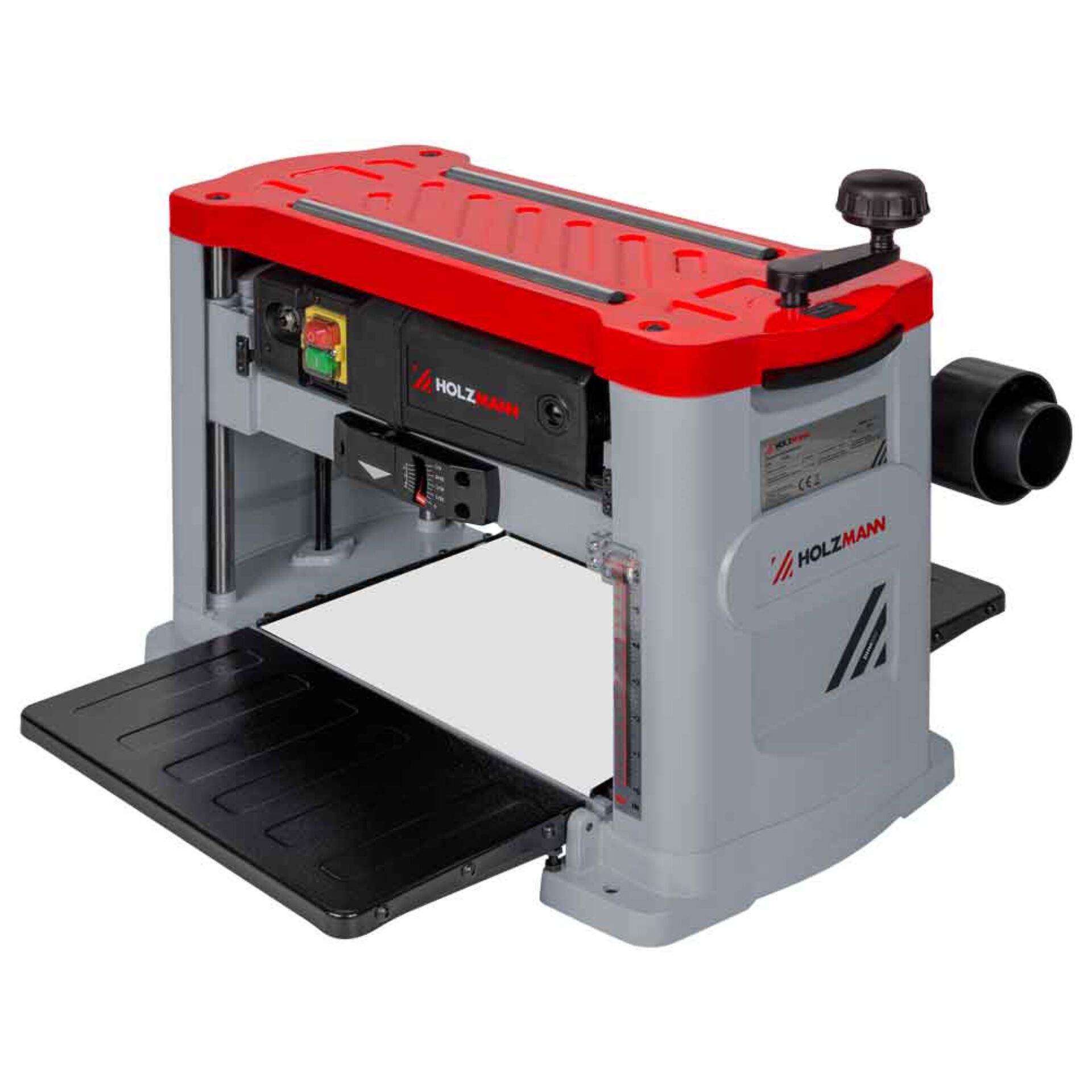

The Holzmann DHM330_230V is a compact thickness planer designed to plane wood pieces up to 330 mm wide and 152 mm high accurately to size for both workshop and mobile use.
Key Features
- Powerful 1500 W motor with a 6 m/min feed rate
- Easy passage height adjustment via hand crank with chip removal scale
- Planing shaft with 2 knives running at 8500 rpm
- Dust extraction port with Ø 65.5 / 101.5 mm connection
| Engine power | 1500 W, 230 V / 50 Hz |
|---|---|
| Planing width | max. 330 mm |
| Passage height | max. 152 mm |
| Chip removal (up to 152 mm width) | max. 2.8 mm |
| Chip removal (over 152 mm width) | max. 0.8 mm |
| Planer shaft | Ø 50 mm, 2 knives, 8500 rpm |
| Table size | 330 × 235 mm |
| Feed speed | 6 m/min |
| Sound power level (LwA) | approx. 96.8 dB(A) |
| Sound pressure level (LpA) | approx. 83.8 dB(A) |
| Weight | 31 kg net, 33 kg gross |
| Extraction connection | Ø 65.5 / 101.5 mm |
| Integrated dust extraction | No |
| Colour | Grey / Red |
| Operating mode | Mains |
What are the maximum workpiece dimensions for this thicknesser?
The machine can plane wood pieces up to a maximum width of 330 mm and a maximum passage height of 152 mm.
What size is the extraction port connection?
The extraction connection diameter is Ø 65.5 / 101.5 mm.
