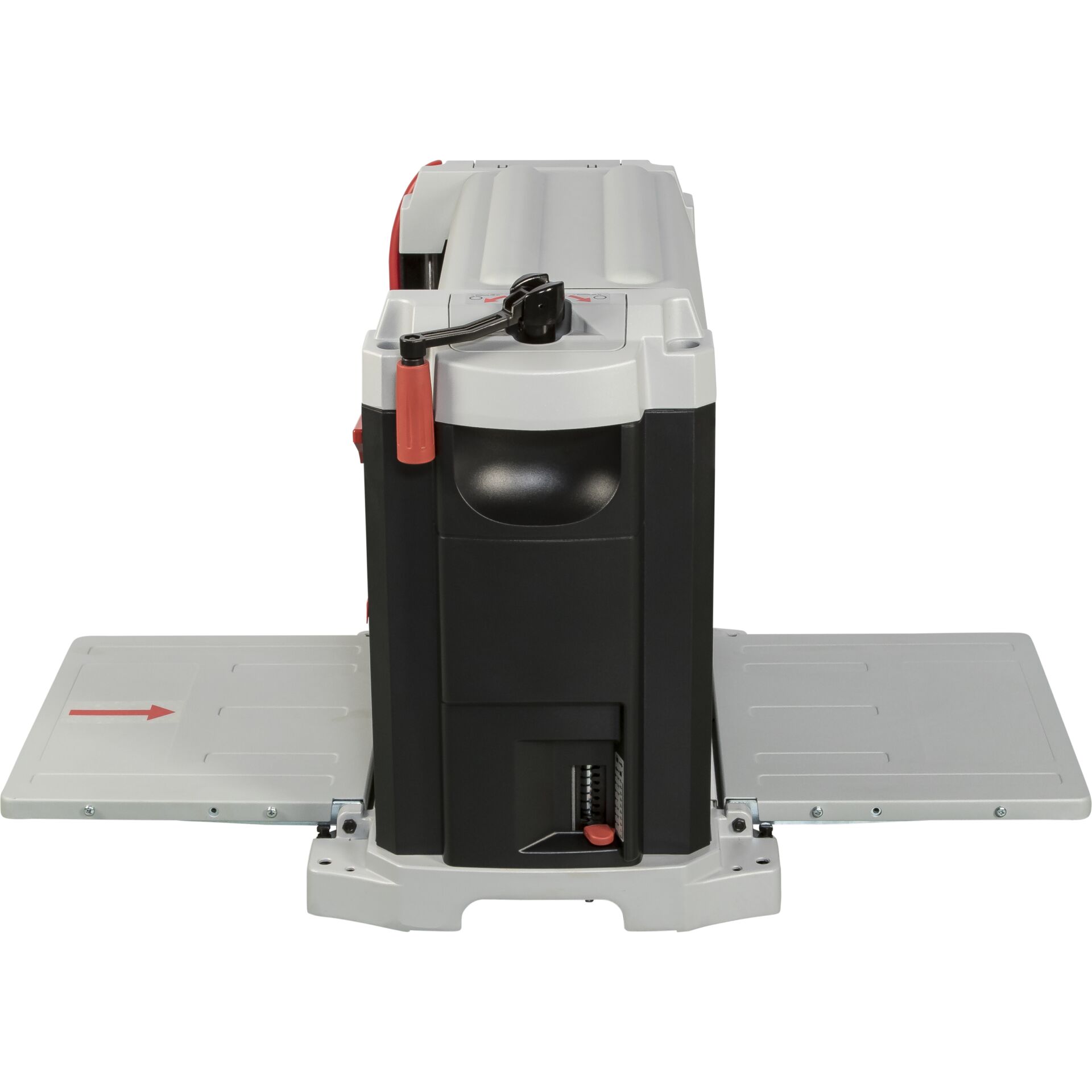

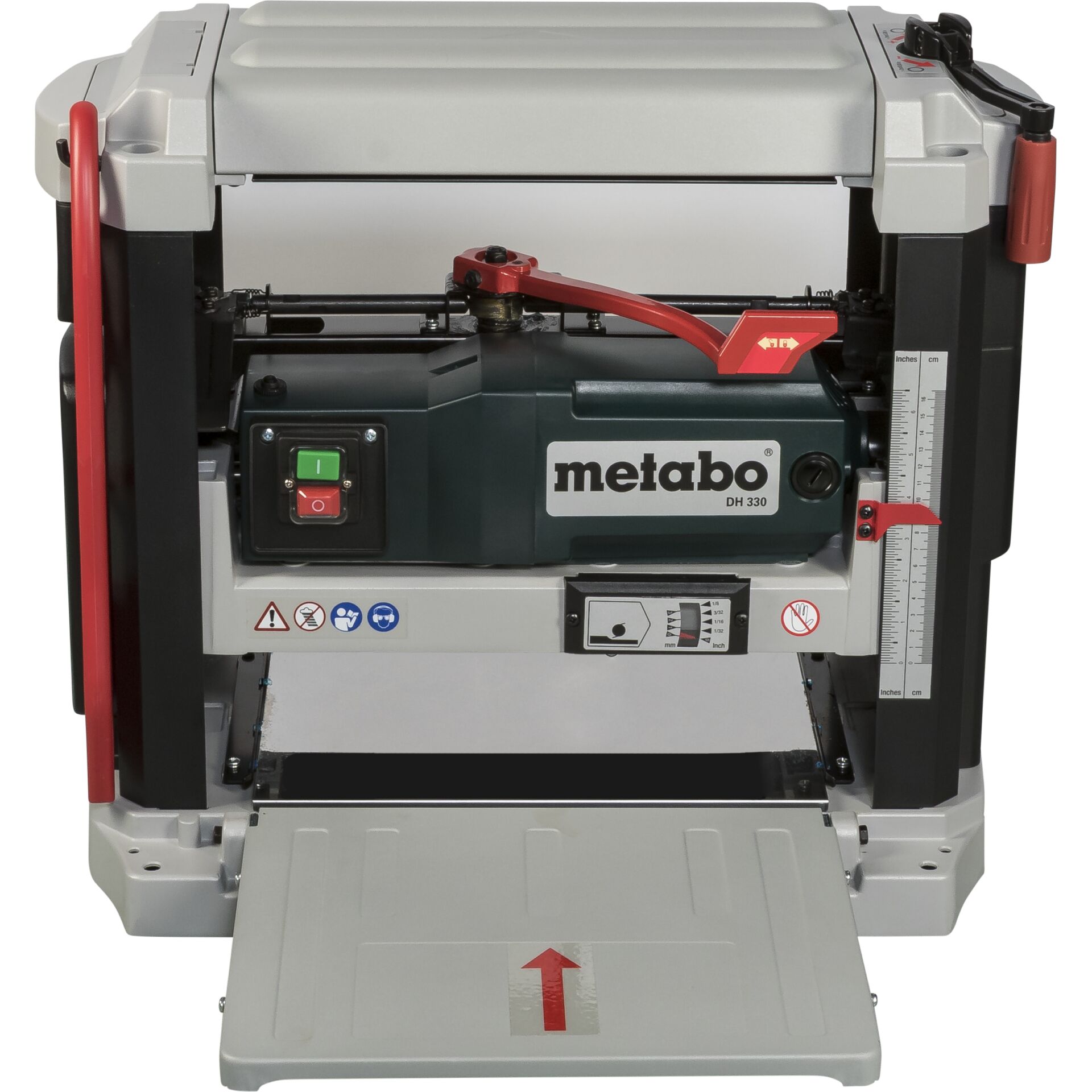

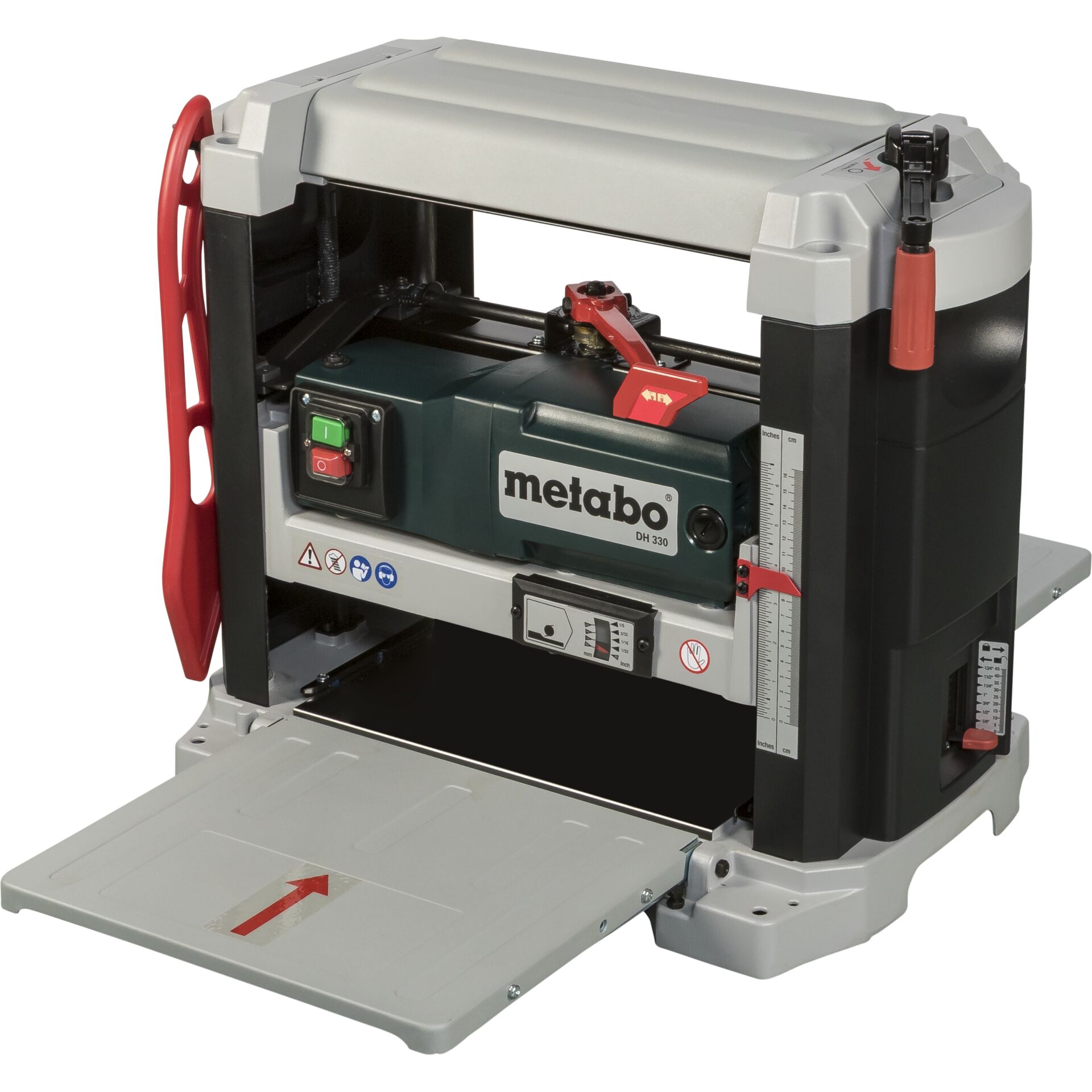

Metabo DH 330 Thicknesser, 1800W
540.40 €
Products ID: 185100
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 7–15 business days
Delivery options to:
Choose countryThe Metabo DH 330 is an 1800W thicknesser designed for precise wood planing in both workshop and mobile applications.
Key Features
- High-torque drive and powerful universal motor for an even planing pattern
- Robust gearbox for smooth, uniform workpiece feed
- Crank-operated height adjustment
- Precise chip removal adjustment with planer interlock to prevent accidental changes
- Large infeed and outfeed tables to support long workpieces
- Restart protection for added operating safety
| Dimensions | 579 x 857 x 574 mm |
|---|---|
| Thickness planing chip removal | 0 - 3 mm |
| Thicknessing table material | Cast aluminium with stainless steel coating |
| Thicknessing table L x W | 840 x 330 mm |
| Passage height / width | 152 / 330 mm |
| Feed speed | 7 m/min |
| Diameter of the cutter head | 47 mm |
| Number of knives | 2 |
| Speed of the cutter head | 9800 /min |
| Mains voltage | 220 - 240 V |
| Rated input power | 1800 W |
| Weight | 35 kg |
| Measurement uncertainty K | 4 dB(A) |
| EAN | 4003665424477 |
|---|
What is the maximum workpiece capacity for the Metabo DH 330?
The thicknesser accommodates workpieces with a passage height of up to 152 mm and a passage width of up to 330 mm.
What is the maximum cutting depth per pass?
Chip removal depth can be adjusted between 0 and 3 mm.
