Holzmann ALA2 230V Automatic Start-Up Distribution Box
Price: 75.60 €
| Products ID: | 182683 |
|---|---|
| Manufactured by: | Holzmann Maschinen |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 9120058378881 |
Delivery options to:
Choose country

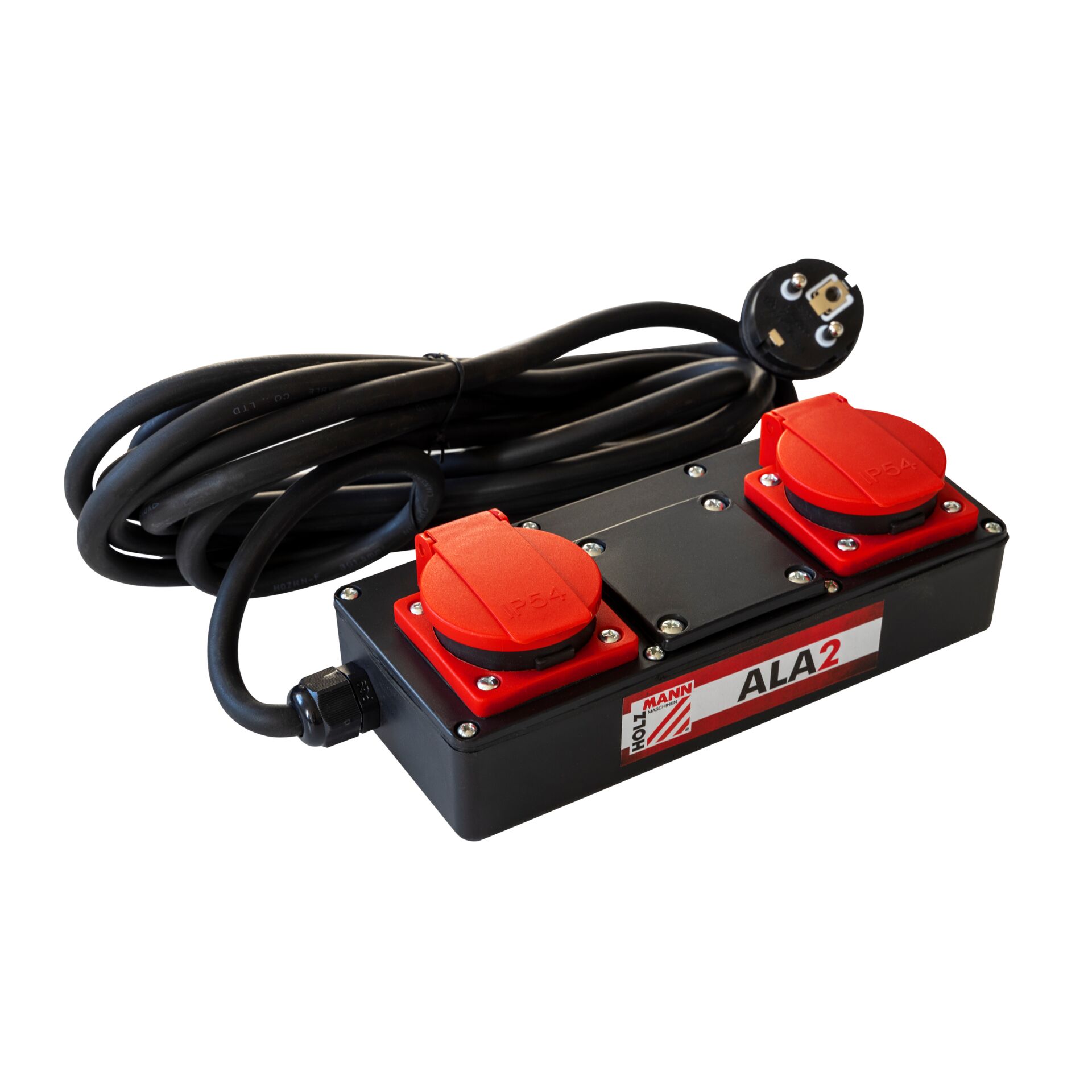

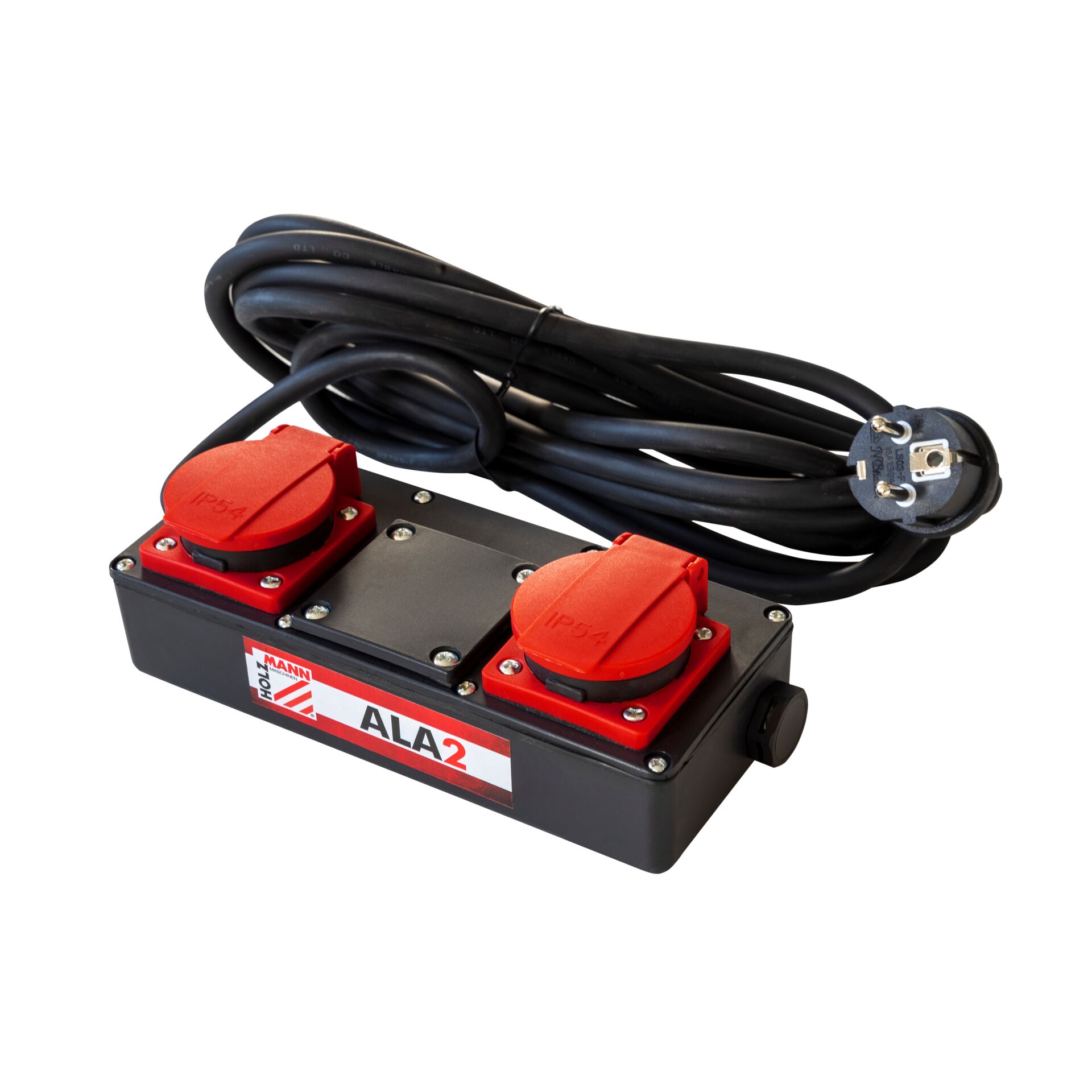

The Holzmann ALA2 230V is an automatic start-up distribution box designed to power an extraction unit automatically when a woodworking machine is turned on.
Key Features
- Automatic start-up for two 230 V machines
- Enables the slave unit 2 to 4 seconds after the master machine starts
- Switches off the slave unit 3 to 4 seconds after the master stops
- Maximum rated power of 3680 W (16 A)
- 4 m connection cable H07RN-F 3G1.5mm²
- IP44 protection rating
| Type | Compact Distribution Box |
|---|---|
| Power supply | Mains |
| Voltage | 230 V / 50 Hz |
| Mains input | 230 V |
| Max. rated power | 3680 W (16A) |
| Connection cable | H07RN-F 3G1.5mm² |
| Cable length | 4 m |
| Protection class | IP44 |
| Switch-on delay | 2 - 4 s |
| Switch-off delay | 3 - 4 s |
| Installation dimensions | 195 x 80 x 65 mm |
| Width | 19.5 cm |
| Depth | 8.0 cm |
| Height | 6.5 cm |
| Weight | approx. 0.93 kg |
| Colour | Black / Red |
What is the switching delay of the master-slave socket?
The slave unit turns on 2 to 4 seconds after the master machine is switched on, and turns off 3 to 4 seconds after the master machine is turned off.
What is the maximum rated power of the Holzmann ALA2?
The maximum rated power is 3680 W (16 A) on a 230 V supply.
