UNI-T UT521 Earth Ground Resistance Tester
Price: 146.10 €
| Products ID: | 175637 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750552100 |
Delivery options to:

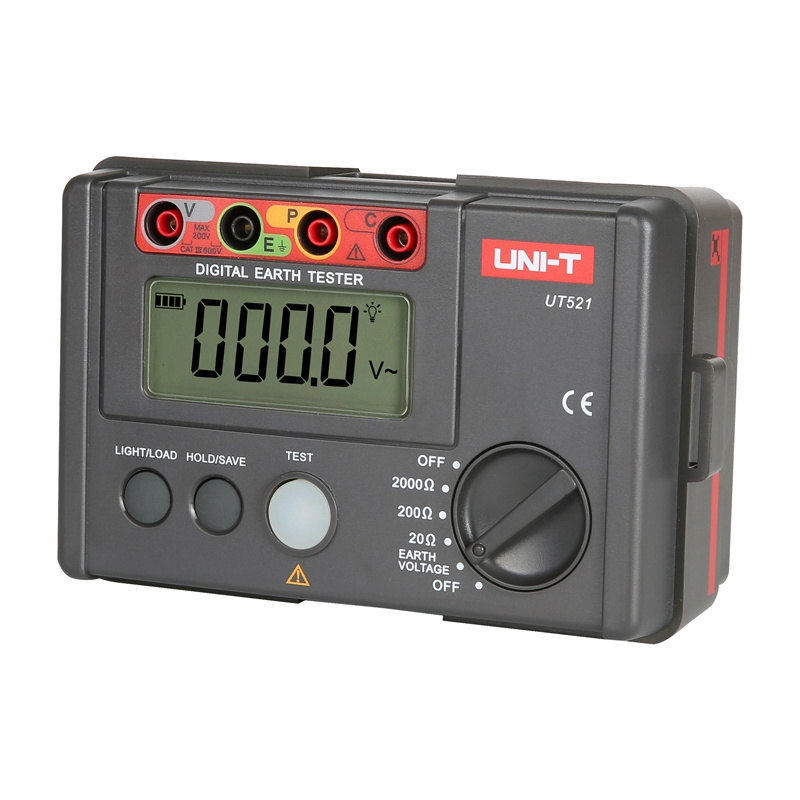

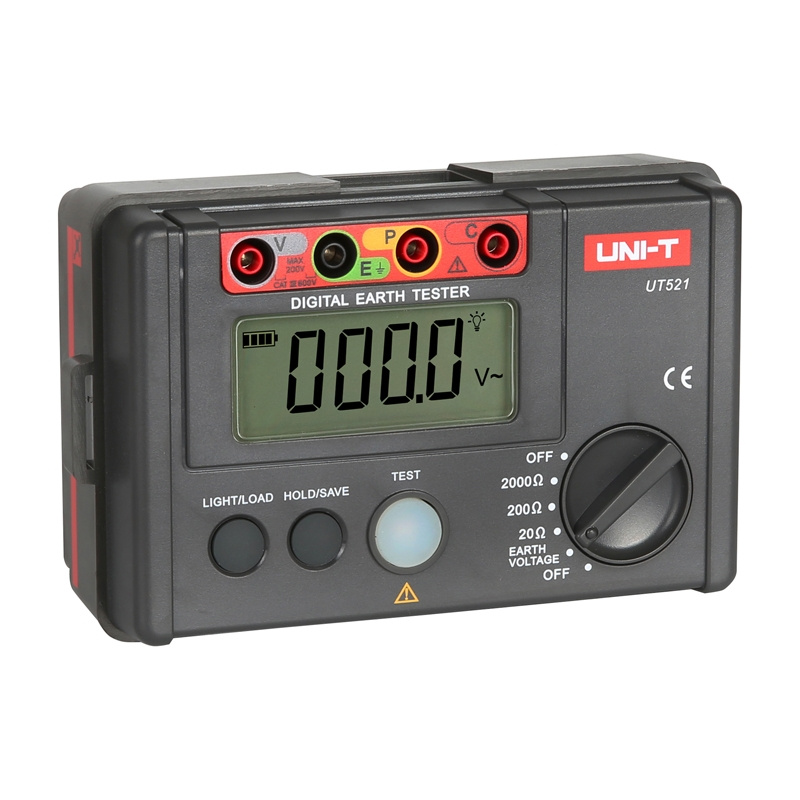

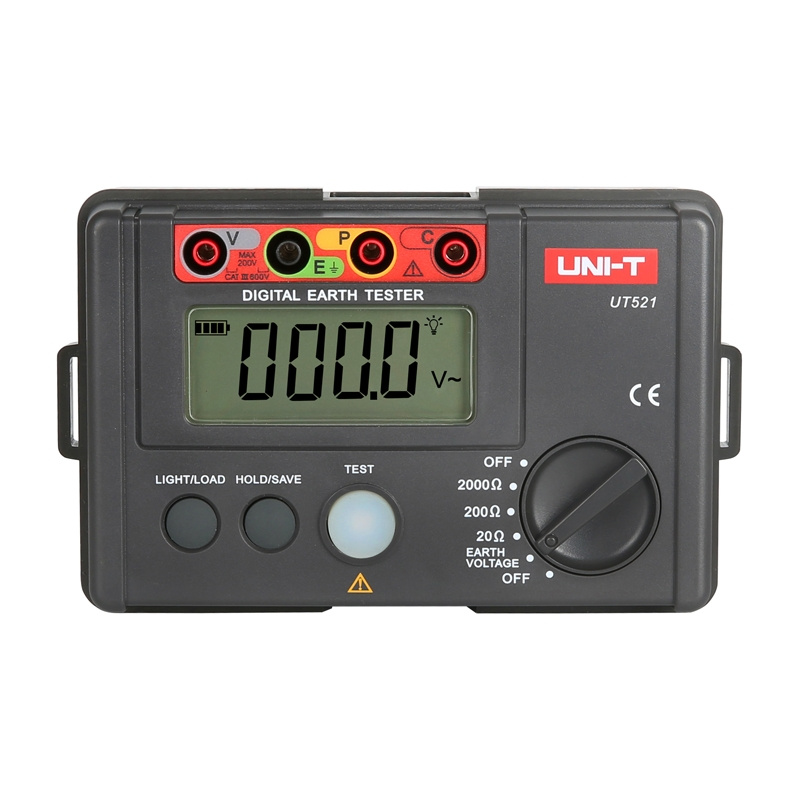

Choose countryThe UNI-T UT521 is a digital grounding tester designed for measuring ground resistance and AC ground voltage in power systems and lightning protection installations.
Key Features
- Supports simple 2-wire and precise 3-wire measurement methods
- Backlit LCD screen with Data Hold function
- Internal data memory for up to 20 sets of measurements
- Weak contact and out-of-range overload (OL) indicators
- Double insulation protection and automatic shutdown after 10 minutes of inactivity
| Manufacturer | UNI-T |
|---|---|
| Model | UT521 |
| Ground resistance measurement | 0~20 Ω / 0~200 Ω / 0~2000 Ω / 0~40 Ω / 0~400 Ω / 0~4000 Ω |
| AC ground voltage measurement | 0~200 V / 0~400 V |
| Frequency | 50 Hz / 60 Hz |
| Display count | 2000 |
| Data memory | 20 sets |
| Display size | 70.6 × 34 mm |
| Power supply | 6 × 1.5 V battery (LR6) |
| Dimensions | 160 × 100 × 70.5 mm |
| Weight | 560 g |
| Color | Red, gray |
What measurement methods does the UNI-T UT521 support?
The tester supports both simple 2-wire measurement and precise 3-wire measurement.
What is included in the package?

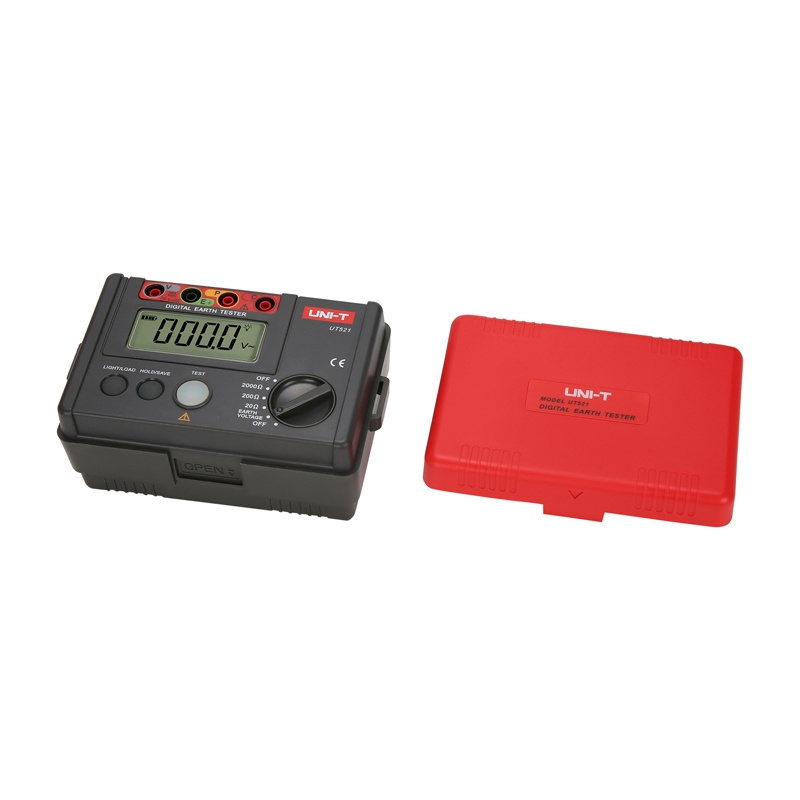

The package includes the grounding tester, batteries, straight test leads with crocodile clamps, standard test leads with crocodile clamps, grounding skewers, carrying bag, and instruction manual.
How is the device powered?
The tester is powered by six 1.5 V LR6 (AA) batteries.
