Uni-T UT203R Digital Clamp Meter AC/DC
Price: 62.30 €
| Products ID: | 176934 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750520390 |
Delivery options to:

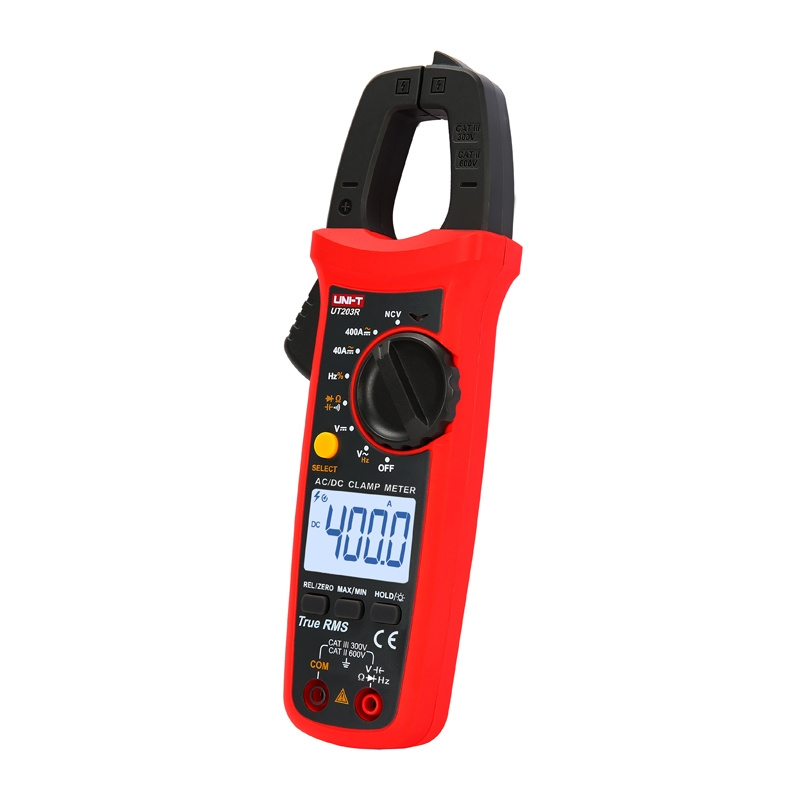

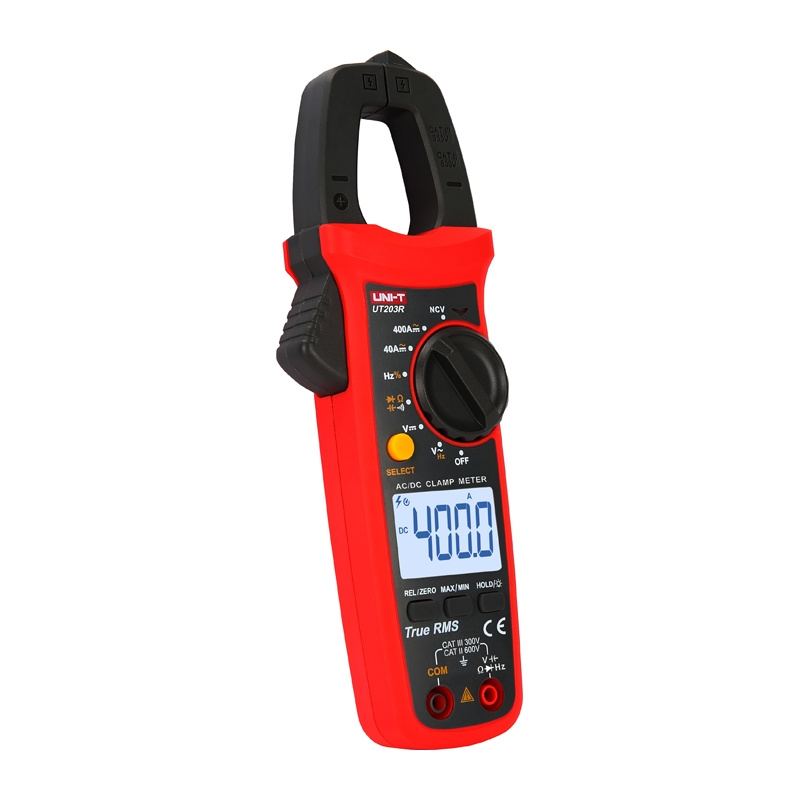

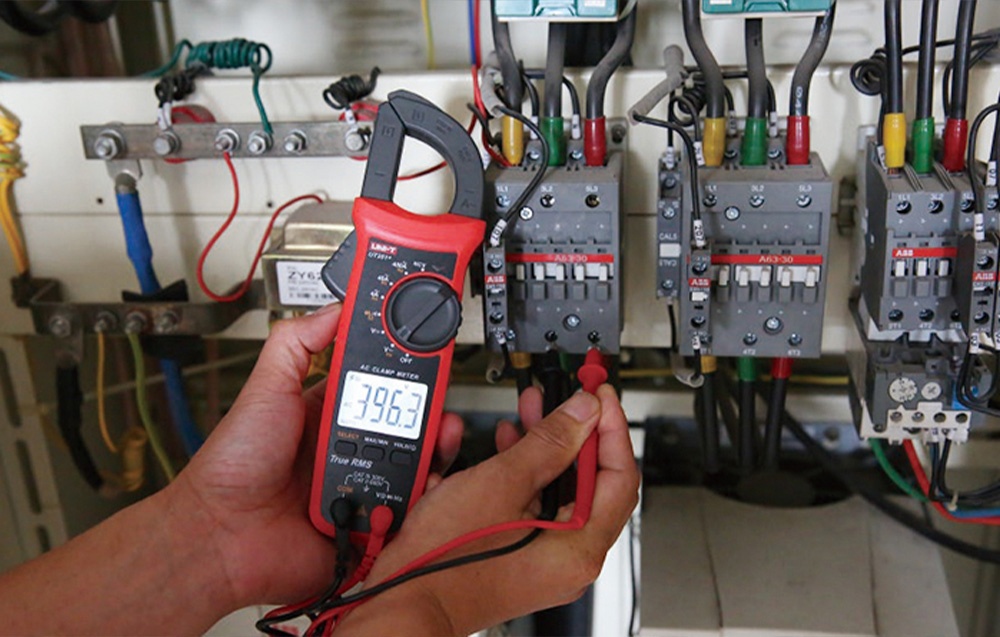

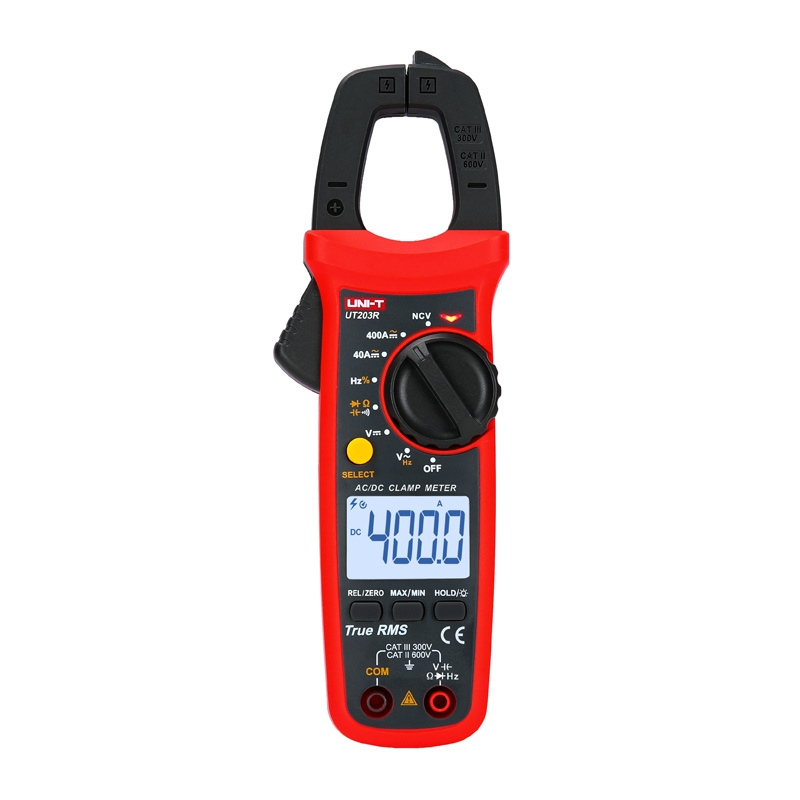

Choose countryThe Uni-T UT203R is a versatile digital clamp meter designed for everyday electrical testing, circuit diagnosis, and current measurement without opening the circuit.
Key Features
- AC and DC current measurement up to 400 A and voltage measurement up to 600 V
- True RMS, NCV detection, diode test, and continuity buzzer
- Capacitance, frequency, and resistance measurement capabilities
- Backlit display with a maximum reading of 4000 counts
- 28 mm jaw opening for convenient wire gripping
- Safety rating compliance with CAT II 600V and CAT III 300V
| Manufacturer | Uni-T |
|---|---|
| Model | UT203R |
| Type | Clamp meter |
| AC current | 0.04~400A ±(2%+5) |
| DC current | 0.04~400A ±(2%+5) |
| AC Voltage | 600V ±(0.8%+5) |
| AC Voltage Frequency | 10Hz~60kHz ±(0.5%+2) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 40MΩ |
| Capacitance | 40mF ±(4%+5) |
| Frequency | 10Hz~10MHz ±(0.1%+4) |
| Maximum reading | 4000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, LCD backlight |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the clamp meter, 2 batteries, test leads, and a user manual.
What are the current measurement ranges for this meter?
The device measures both AC and DC current across a range of 0.04 A to 400 A.
