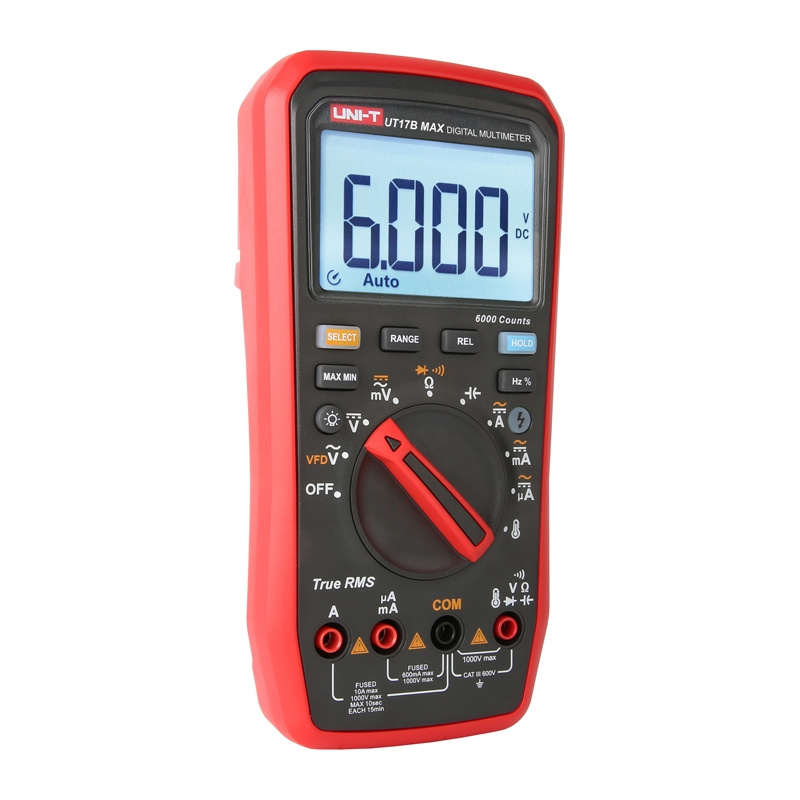

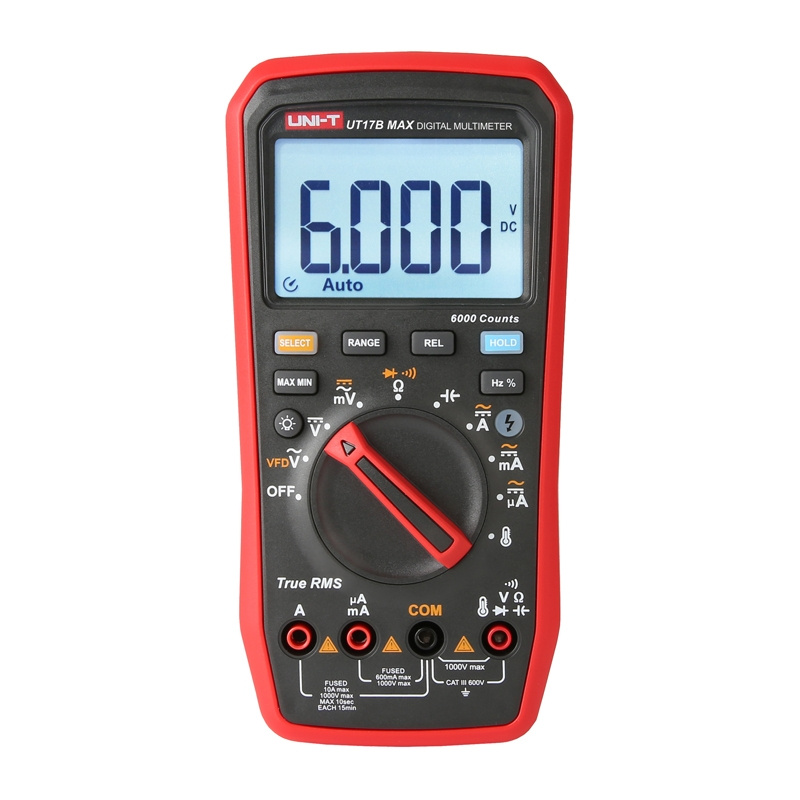

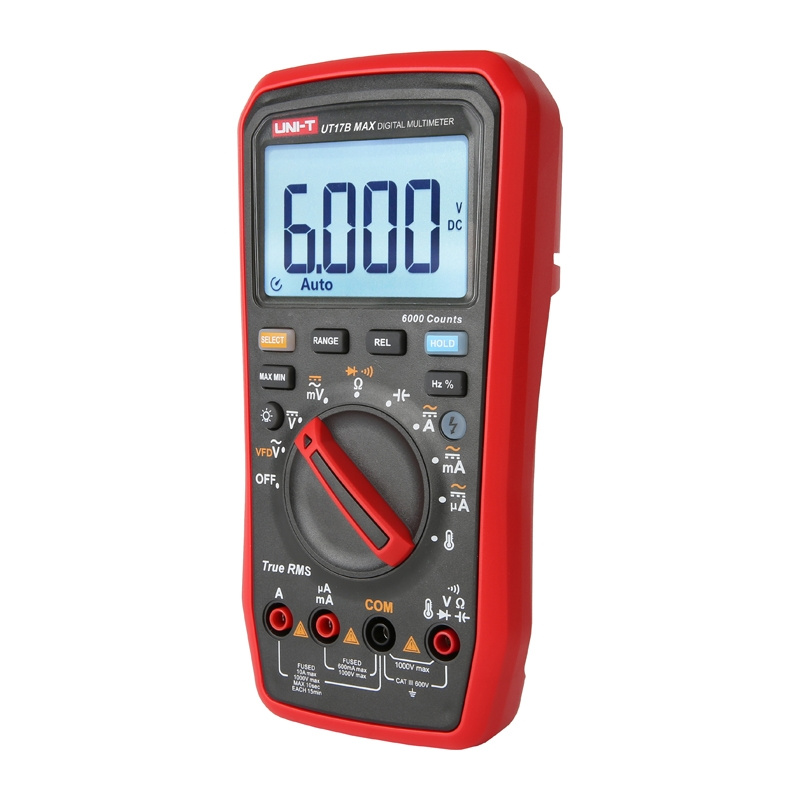

Uni-T True RMS UT17B MAX Digital Multimeter

The Uni-T UT17B MAX is a True RMS digital multimeter engineered for versatile electrical diagnostics and temperature measurements ranging from -55°C to 500°C. It measures AC/DC voltage up to 1000 V and AC/DC current up to 10 A.

Key Features

Measures AC/DC voltage up to 1000 V and current up to 10 A
Measures resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz
Temperature measurement range from -55°C to 500°C with included Type K thermocouple
6000-count display with adjustable backlight
Data Hold, MAX/MIN, Relative mode, continuity test, and diode test
Wiring error alarm and CAT III 600V overvoltage protection

Manufacturer	Uni-T
Model	UT17B MAX
Type	True RMS digital multimeter
DC Voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)
AC Voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)
DC Current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
AC Current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
Resistance	600.0Ω to 60.00MΩ ±(0.5%+2)
Capacitance	6.000nF to 6000µF ±(2.0%+5)
Frequency	10Hz ~ 10MHz ±(0.1%+3)
Duty Cycle	1% ~ 99.9% ±(1.0%+4)
Temperature	-55°C to 500°C ±2°C / ±4°F
Display Count	6000
Voltage Category	CAT III 600V
Power Supply	2x 1.5V AA batteries
Dimensions	182 mm × 91 mm × 45 mm
Weight	455 g
Color	Red and gray

What is included in the package?

The package includes the digital multimeter, user manual, 2 standard gold-plated test leads, 2 test leads with fine tips, 2 AA batteries, and 1 Type K thermocouple.

What temperature range can this multimeter measure?

The Uni-T UT17B MAX measures temperatures from -55°C to 500°C using the included Type K thermocouple.
