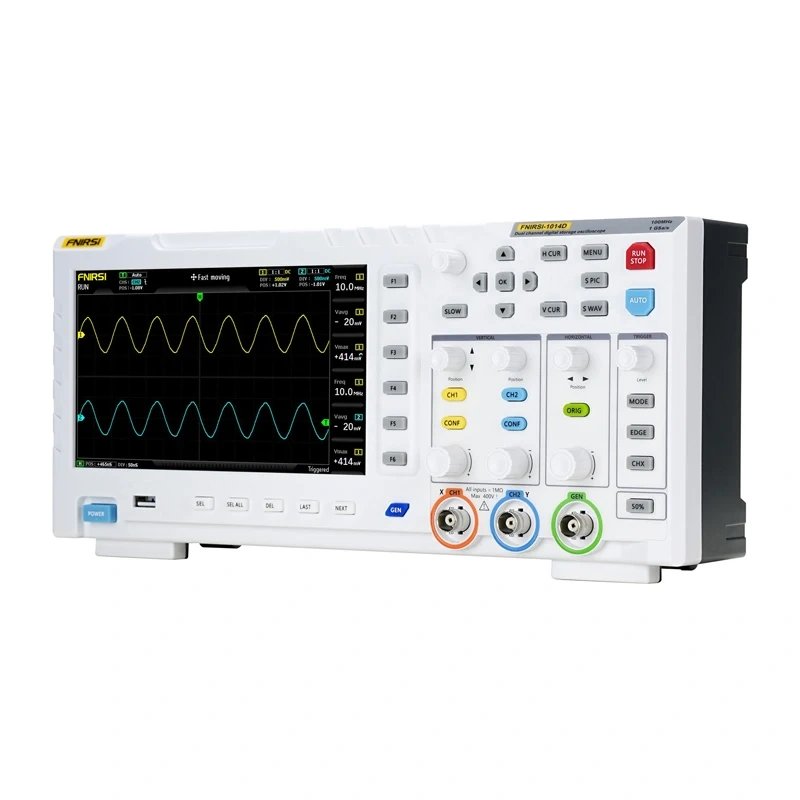

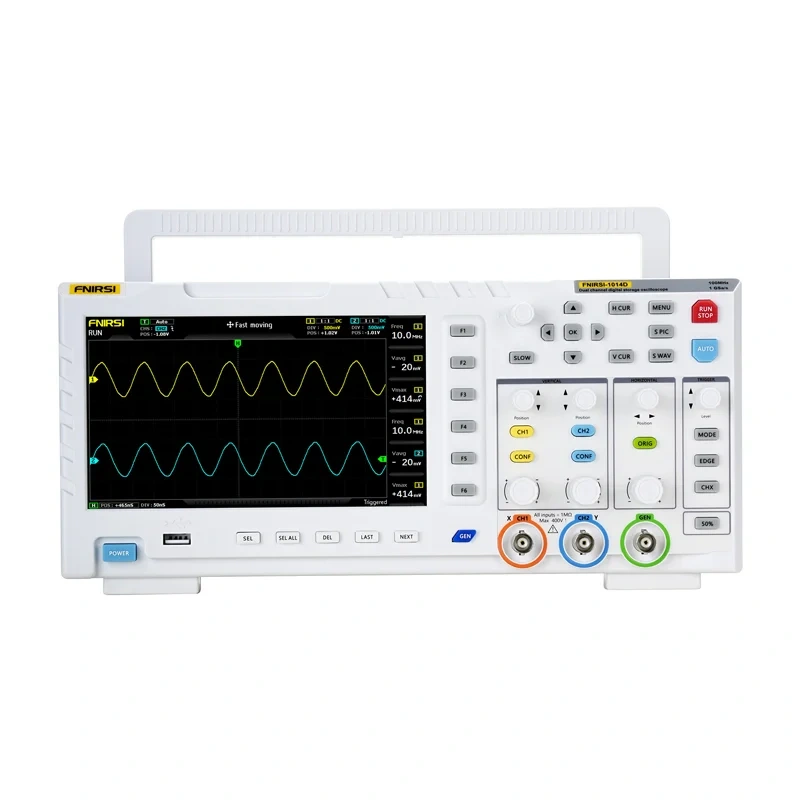

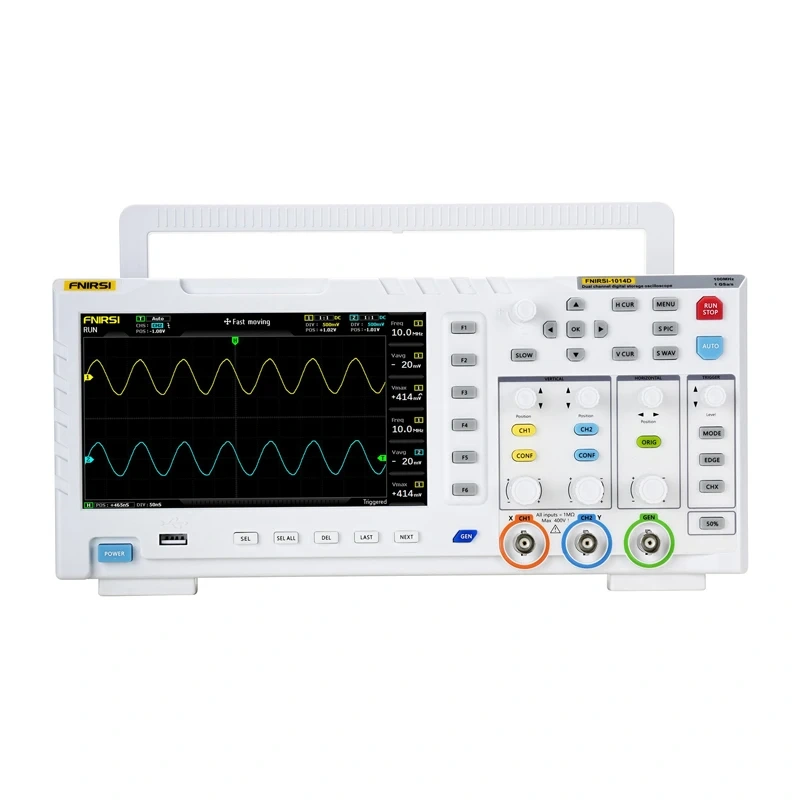

FNIRSI 1014D 2-in-1 Digital Oscilloscope and Signal Generator
Price: 150.60 €
| Products ID: | 175538 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085526997 |
Delivery options to:
Choose country
The FNIRSI 1014D is a compact dual-channel digital oscilloscope with an integrated DDS signal generator, designed for circuit diagnostics, prototype testing, and educational use.
Key Features
- 2 input channels with 100 MHz bandwidth and 1 GSa/s real-time sampling rate
- Built-in DDS function generator supporting 14 standard waveforms up to 10 MHz
- 7-inch color LCD display with 800 × 480 resolution
- 1 GB internal memory storing up to 1,000 waveforms and 1,000 screenshots
- FFT spectral analysis and X-Y display mode for comprehensive signal analysis
- Direct data export to computer via USB interface
| Manufacturer | FNIRSI |
|---|---|
| Model | 1014D |
| Channels | 2 |
| Bandwidth | 100 MHz |
| Sampling rate | 1 GSa/s |
| Display size | 7 inches |
| Display resolution | 800 × 480 |
| Memory depth | 240 Kbit |
| Input impedance | 1 MΩ |
| Sensitivity | 50 mV ~ 500 V |
| Time base | 50 s ~ 10 ns |
| Highest test voltage | 1X: 40V, 10X: 400V |
| Signal generator | 14 types |
| Power supply | 5V 2A / 3A / 4A |
| Dimensions | 310 × 145 × 70 mm |
What is included in the package?
The package includes the FNIRSI 1014D oscilloscope, two 100 MHz probes, a USB charger, and a user manual.
What is the maximum test voltage supported?
The device safely measures voltages up to 40V with a 1X probe setting and up to 400V with a 10X probe setting.
