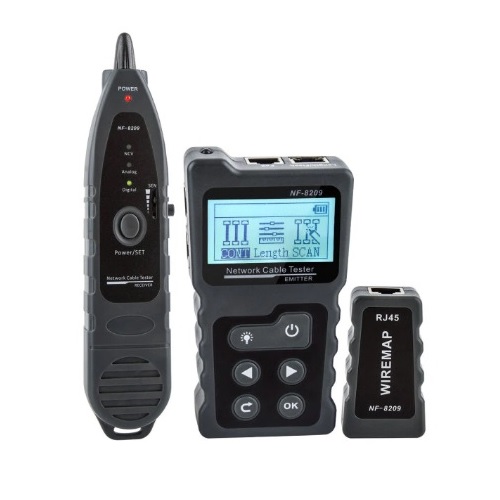

Network Cable Tester with PoE and Length Measurement
Price: 72.30 €
| Products ID: | 170838 |
|---|---|
| Manufactured by: | Noyafa |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6971278906674 |
Delivery options to:
Choose countryMultifunctional network cable tester designed for STP and UTP cable verification, cable length measurement, and PoE system diagnostics.
Key Features
- Cable continuity scanning for STP and UTP cables: detects open, short, and cross faults
- Cable length measurement from 2.5 m to 200 m with break location detection
- PoE testing (DC 5–60V) with voltage, polarity, power mode, and PSE type (IEEE 802.3af/at) identification
- Port flash function to easily locate connected network ports on switches or routers
- Integrated NCV detector in the receiver unit
- Backlit 128x64 dot-matrix LCD display for low-light visibility
| Compatible cable types | CAT5e / CAT6a / CAT6 (STP + UTP) |
|---|---|
| Max range (wiremap and scan) | 600m |
| Cable length test range | 2.5 m ~ 200 m |
| Cable length accuracy | +/- 1.6m |
| PoE test range | DC 5-60V standard / non-standard PoE switch |
| Supported PSE types | IEEE802.3af / IEEE802.3at; non-standard |
| Scan frequency | 130KHz |
| Display | 128x64 dot-matrix LCD with backlight |
| Voltage protection | DC 48V 5mA |
| Power supply | 1x 6R22 9V battery and 3x AAA batteries (not included) |
What cable length range can this device measure?
It can measure LAN cable lengths ranging from 2.5 m to 200 m with an accuracy of +/- 1.6 m.
What type of batteries does the tester require?
The tester requires one 9V (6R22) battery and three AAA batteries (batteries are not included).
