Maclean MCTV-627 DVB-T/T2 TV Antenna Signal Meter Kit
Price: 16.80 €
| Products ID: | 173086 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5903292800875 |
Delivery options to:
Choose country

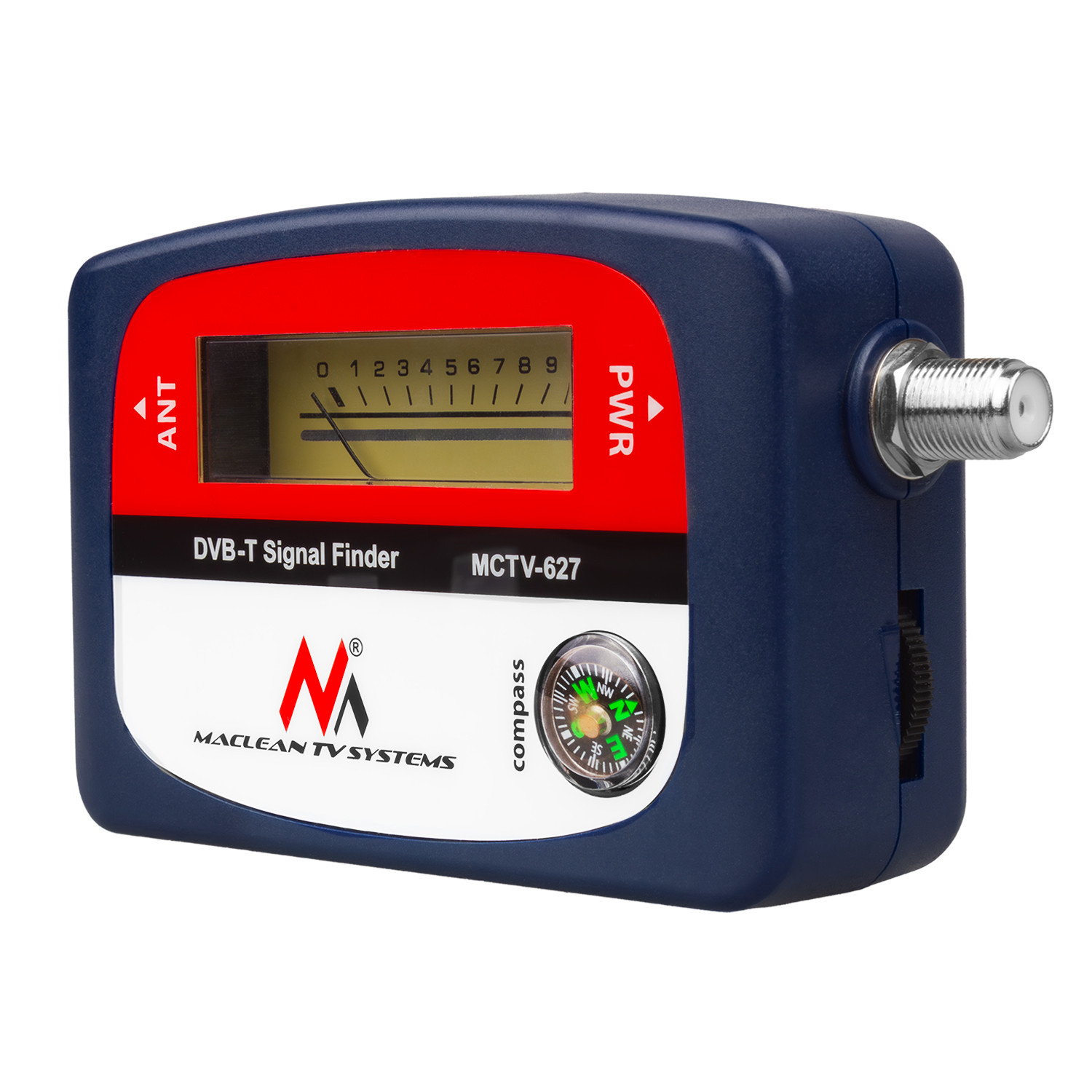

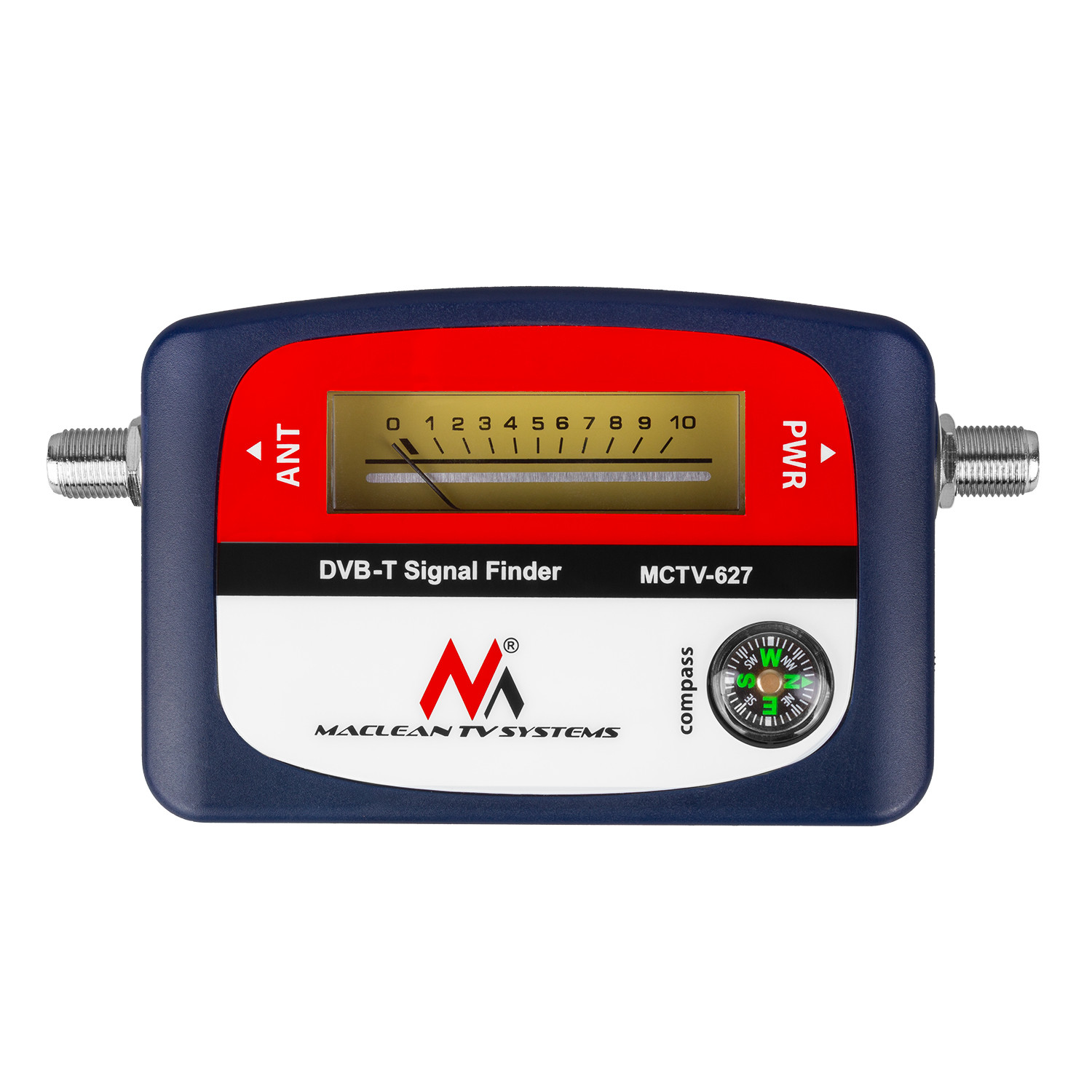

The Maclean MCTV-627 is a DVB-T and DVB-T2 terrestrial television signal meter designed for precise antenna alignment on roofs, balconies, or walls. It features a built-in compass and battery-powered operation for convenient mobile use during installation.
Key Features
- Accurate signal strength indication for optimal antenna positioning
- Integrated compass to assist with antenna direction finding
- Input frequency range: VHF 174–230 MHz and UHF 470–860 MHz
- Input level range: 65 dBµV to 95 dBµV with 75 Ohm impedance
- Includes 25 cm antenna cable with F-type connectors
- Battery container for 10x AA batteries with 70 cm power cable
- Protective carry pouch included for storage and transport
| Brand | Maclean |
|---|---|
| Model | MCTV-627 |
| Supported Standards | DVB-T, DVB-T2 |
| VHF Frequency Range | 174 - 230 MHz |
| UHF Frequency Range | 470 - 860 MHz |
| Input Level Range | 65 dBµV - 95 dBµV |
| Impedance | 75 Ohm |
| Power Supply | 12-24 V DC |
| Operating Temperature | 0°C ~ +40°C |
| Built-in Compass | Yes |
| Antenna Cable Length | 25 cm |
| Cable Connectors | F connectors |
| Power Cable Length | 70 cm |
| Battery Container Capacity | 10x AA (R-06) |
How is the meter powered during installation?

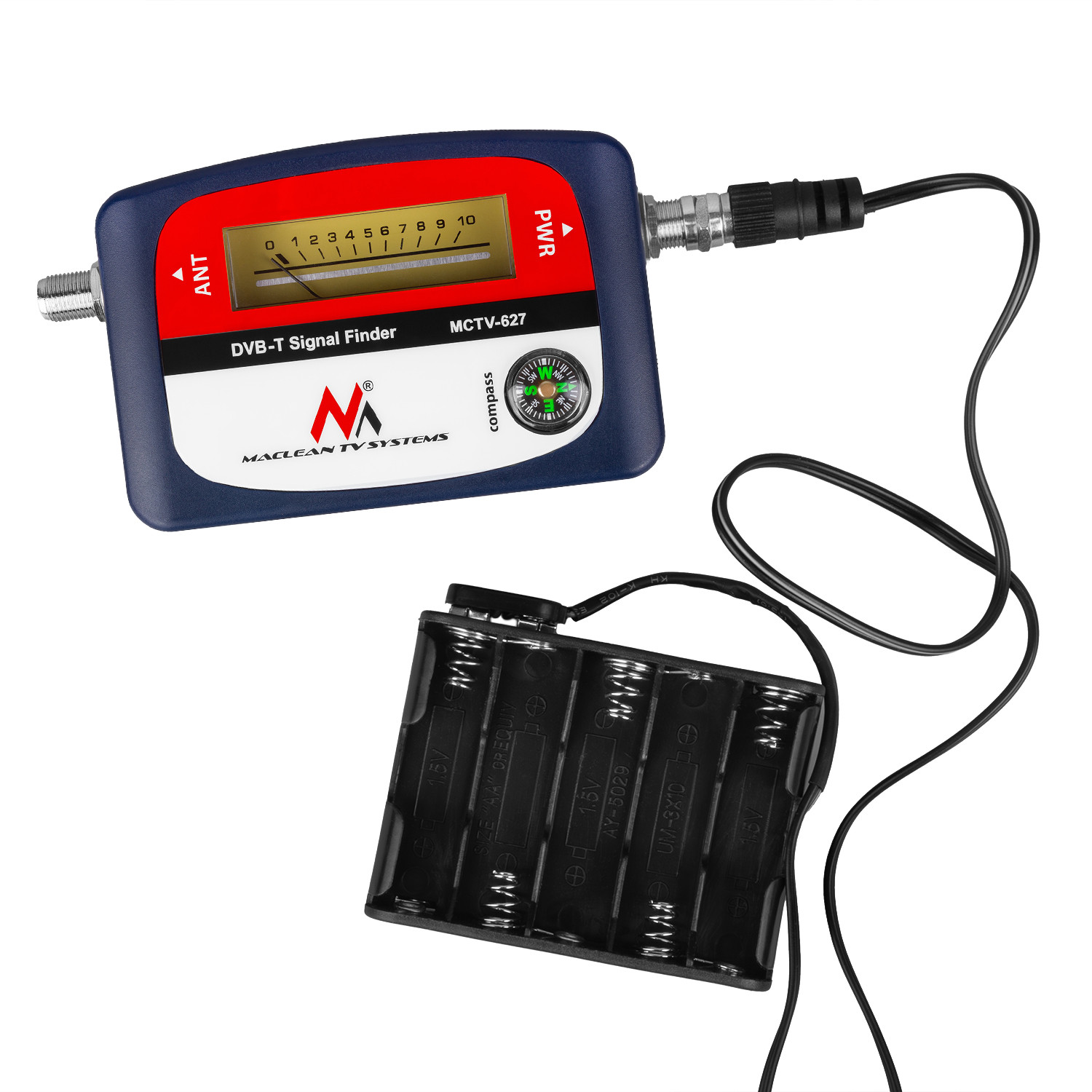

The meter operates on 12-24 V DC. The package includes a battery holder for 10 AA (R-06) batteries with a 70 cm connection lead.
What is included in the package?

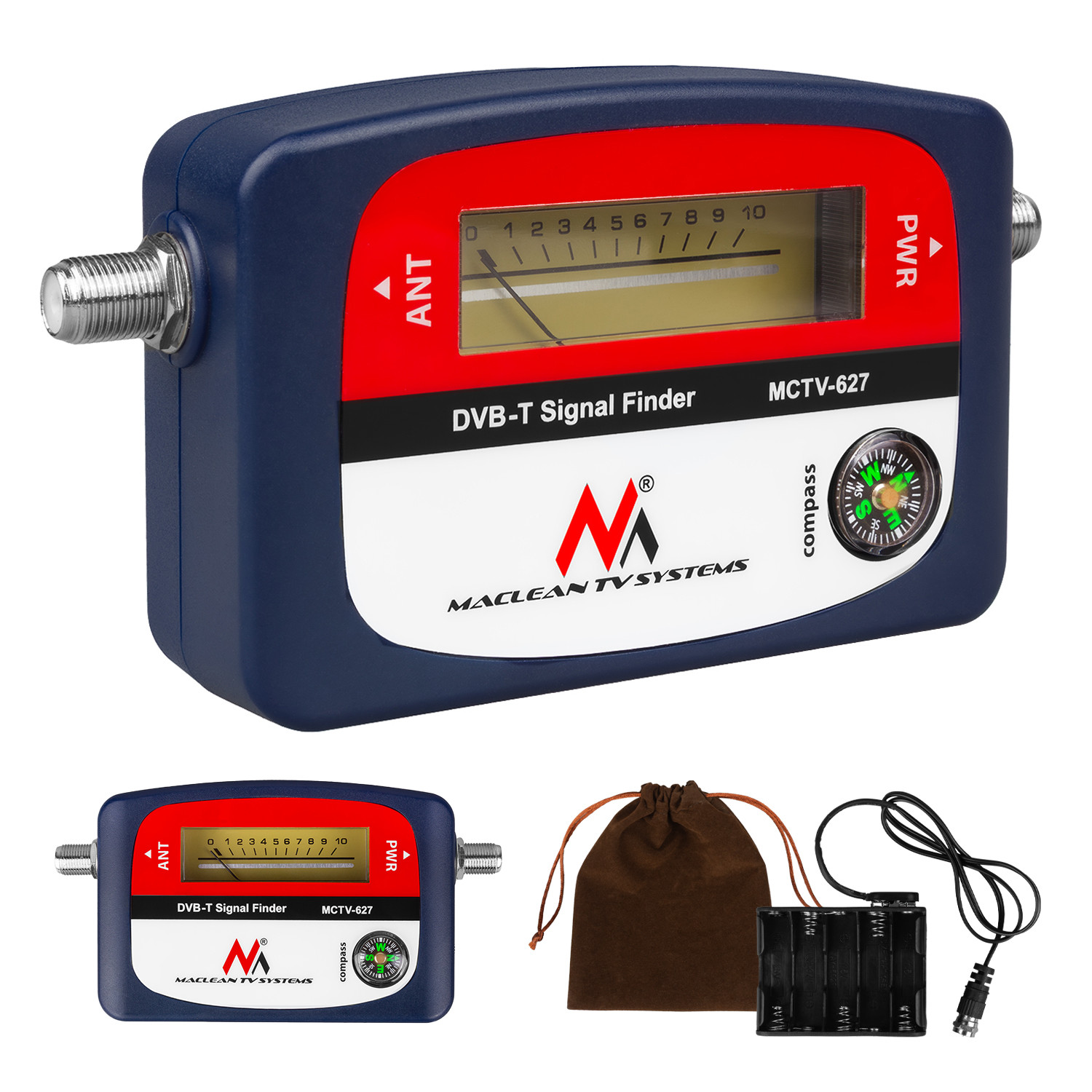

The kit contains the Maclean MCTV-627 DVB-T meter, a 25 cm F-to-F antenna cable, a 70 cm power cable, a 10x AA battery holder, a protective pouch, and a user manual.
What frequency ranges are supported?
The device covers VHF frequencies from 174 to 230 MHz and UHF frequencies from 470 to 860 MHz.
